This article contains complete operating instructions for UAD Console, your software companion app for controlling Volt Gen 2, Volt Max, and Volt 876 audio interface hardware.

Note: The original first-generation Volt series are not recognized by UAD Console. If you're controlling an Apollo audio interface, see the UAD Console for Apollo manual.

In this article

• About UAD Console for Volt
• Understanding UAD Console Features
• Getting Started with Volt in UAD Console
• UAD Console for Volt Controls
• About Volt 876 USB and ADAT Modes
• Volt Input Features in UAD Console
• Monitor Mix Controls
• Monitor Column
• Control Room
• Cues
• Mode (Volt 876)

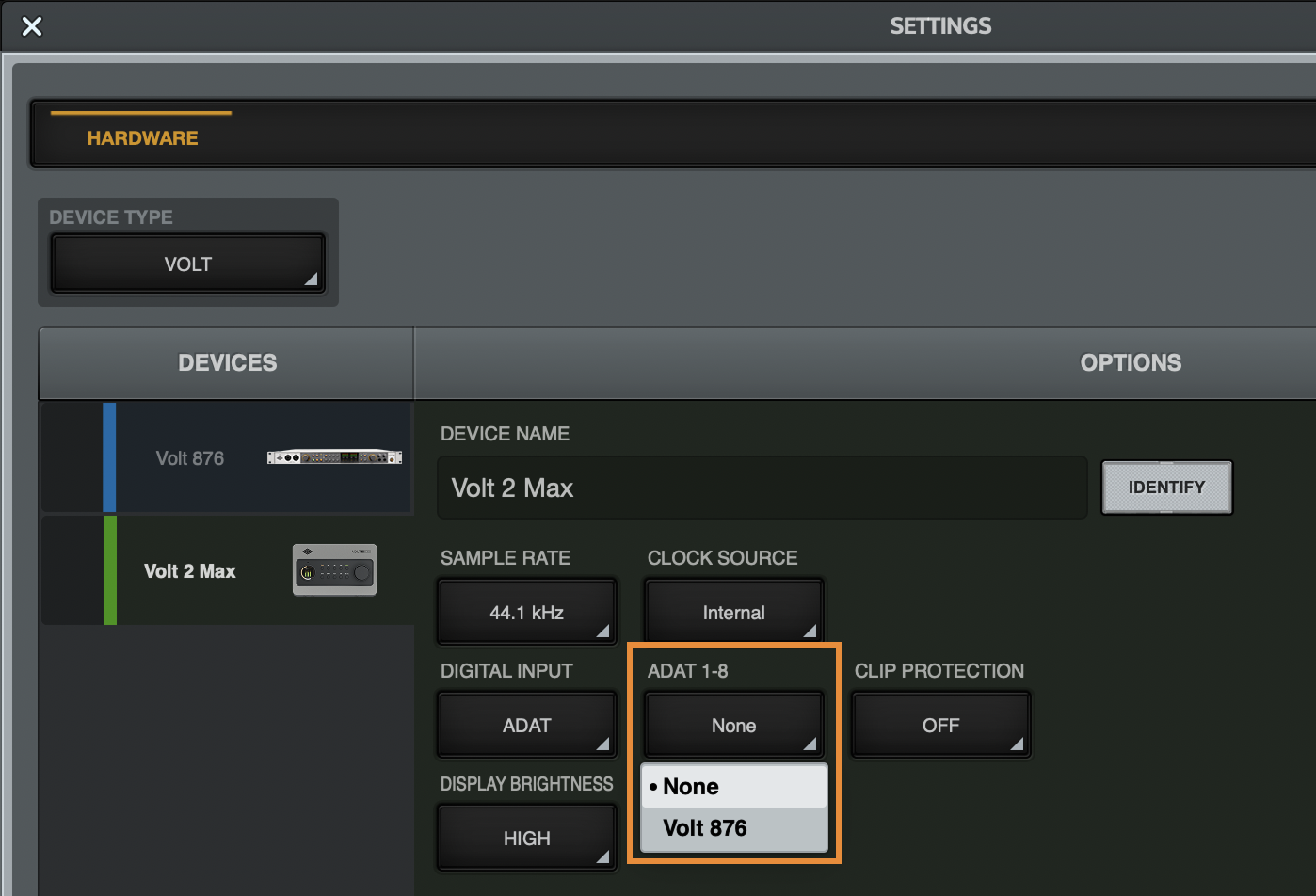

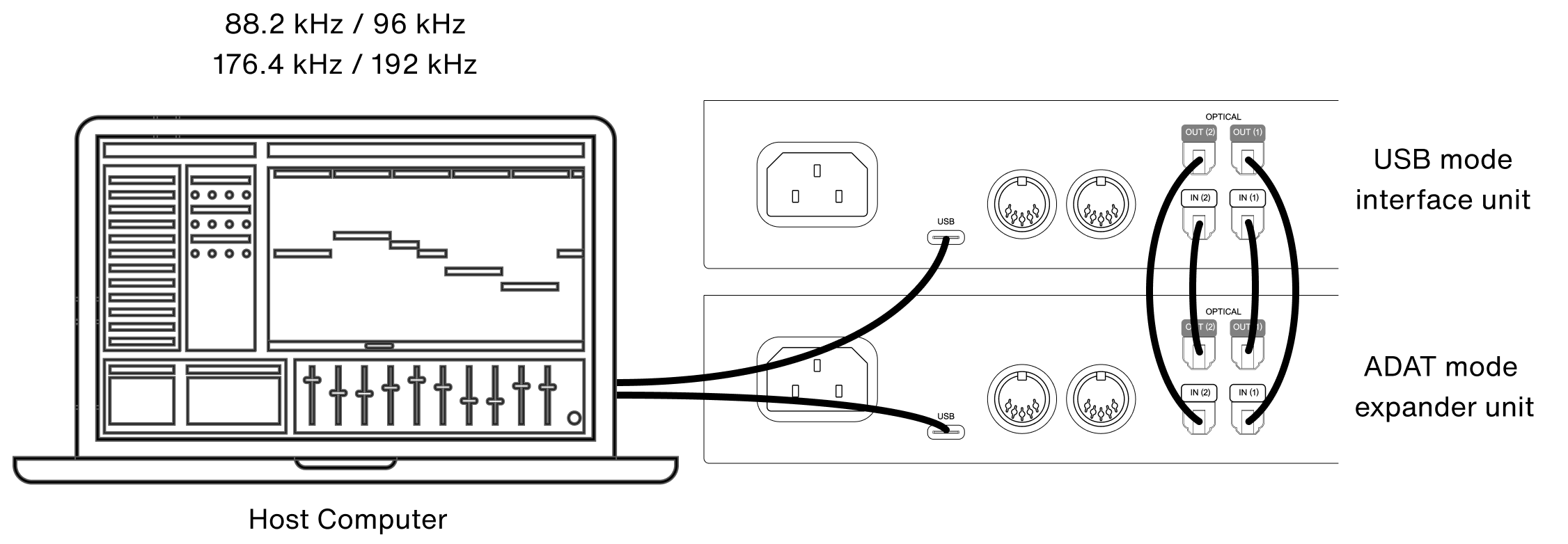

• ADAT Expansion with Multiple Volt Interfaces
• UAD Console for Volt Settings

About UAD Console for Volt

UAD Console is powerful companion software for your Volt Gen 2, Volt Max, and Volt 876 audio interfaces that provides remote control of hardware functions, right from your computer. You can also create a latency-free main monitor mix and up to two additional cue mixes for performers, control a loopback channel for software inputs, use the talkback mic, and more.

Use UAD Console for Volt to:

• Adjust available preamp settings for all analog inputs including Tone Shaping, Max compression, polarity,Vintage, 76 Compressor, and +48V phantom power.
• Set preamp gain automatically with Assistive Auto-Gain (Gen 2, Max, 876)
• Enable instrument (Hi-Z) levels on analog inputs 1 & 2 (Volt 876)
• Adjust monitor and cue mixes from analog, digital, and loopback inputs
• Route up to two independent cue mixes to the headphone outputs and line or 876 digital outputs
• Use the built-in talkback mic to communicate with performers through cue mixes (Max, 876)
• Control a stereo loopback channel (software playback) to monitor the output of other apps
• Control a mix of analog and digital inputs from Volt interfaces, and third-party audio interfaces connected via optical TOSLINK
• Save and load UAD Console session files for total recall of all available settings
• Volt 876: Configure as your primary audio interface, a standalone ADAT A/D - D/A converter with preamp control, or configure multiple Volt 876 units in an expanded system

About Volt Documentation

• For UAD Console setup and operation, use this manual.
• For hardware configuration and descriptions, see the Volt Hardware Manuals.
• For registering your Volt in UA Connect and redeeming included software, see How to set up your Volt Interface.

Get UAD Console

To download and install the latest version of UAD Console, and to update your Volt firmware, use the UA Connect app. See this article for details.

Volt models in this manual

UAD Console can control these Volt interface models:

• Volt 1 Gen 2
• Volt 2 Gen 2
• Volt 4 Gen 2
• Volt 2 Max
• Volt 4 Max
• Volt 4P Max
• Volt 876

Volt Model Exceptions

For features that apply only to certain Volt models, we use the following descriptors.

• (Volt 1) – Volt 1 Gen 2
• (Gen 2) – Volt 2 Gen 2, Volt 4 Gen 2
• (Volt 4) - Volt 4 Gen 2
• (Max) – Volt 2 Max, Volt 4 Max, Volt 4P Max
• (876) – Volt 876

Note: Volt 1 Gen 2 has different features from other Volt Gen 2 and Volt Max models. For example (Gen 2, Max) does not include Volt 1, but (Volt 1, Gen 2, Max) does.

Understanding UAD Console Features

UAD Console is remote control and monitoring software for your Volt hardware that acts as a virtual mixing board, routing audio between your Volt interface's analog and digital inputs and your recording software (DAW).

Direct Monitoring

Direct monitoring is the primary function of UAD Console. Direct monitoring passes input signals directly to the monitor and headphone outputs, instead of being monitored through the audio software (DAW). Direct monitoring lets you hear your live inputs in real time, without audible latency. Without direct monitoring, inputs are subject to DAW buffering latency.

Why use direct monitoring?

With direct monitoring (also known as hardware monitoring), you hear the input signals directly from the Volt hardware with no latency, bypassing your audio software altogether. Direct monitoring includes all preamp features, including Tone, Max, Vintage, and 76 Comp processing.

When you monitor input signals through your audio software (software monitoring) with Direct off, those signals pass through the software before you hear them from the Volt monitor and headphone outputs. These signals use the software’s I/O buffer, which causes latency, an amount of delay that increases as the buffer size is increased.

Use direct monitoring when you are recording sources that you don’t want to monitor through your software, for example, when recording vocals or instruments without plug-in processing from your DAW, but including Volt preamp processing.

How to prevent doubled audio when direct monitoring:

1. Unmute the input in UAD Console to enable Volt's latency-free direct monitoring.
2. Disable software monitoring in your DAW, or mute the input in the DAW, to prevent signal doubling. Note that LUNA can manage muting/unmuting of inputs automatically.
3. After recording, unmute the track in your DAW

Direct monitoring simplified

• To directly monitor through UAD Console: Unmute an input channel in UAD Console. When an input is unmuted in UAD Console, it is directly monitored, and heard in the UAD Console monitor mix. Mute the same inputs in your DAW to prevent doubled, phased, or thin audio. Use this for the fastest response, with Tone Shaping, Max Compression, Vintage, and/or 76 Comp processing.
• To monitor through your DAW software: Mute the input channel in UAD Console. You do not hear the direct signal in UAD Console, and you hear your input signals through your DAW software.

Direct monitoring notes

• Direct includes the input’s Tone Shaping, Max compression, Vintage, or 76 Comp processing, if enabled.
• When direct monitoring (UAD Console inputs not muted), disable the software monitoring feature in your audio software (or mute record or input-enabled channels in your DAW) to prevent signal doubling, which can make your input sound thin or “phasey.'
• When software monitoring (UAD Console inputs muted), you may notice your inputs have latency (a slight delay) before they are heard, as a result of buffering and signal processing in your DAW.
• If you want to hear your input signals processed through plug-ins loaded in your DAW, mute inputs in your DAW.
• The input signal is always sent to the DAW for recording, regardless of UAD Console mute states.

Other features of UAD Console

• Cues: UAD Console supports two Cues (individual mixes for performers, separate from the main mix)
• Loopback channel: Route computer system audio into UAD Console to incorporate audio from audio apps, videos, games, or other system events into your audio production stream.
• Alt monitors: check your mix on alternate monitors (Volt 4 Max, 4P Max, 876).
• Talkback: Use a built-in Talkback mic to communicate with performers (Max, 876).

Getting Started with Volt in UAD Console

Use these steps to get started with your Volt audio interface and UAD Console software.

Plugging in and setting levels

• Connect an instrument: On Volt Gen 2 and Volt Max models, Hi-Z inputs are enabled automatically when you plug an electric guitar or bass into an instrument input. On Volt 876, press the INST buttons to manually switch to Hi-Z instrument impedance and levels.
• Use 48V Phantom Power: Toggle 48V on for condenser microphones that require phantom power. Phantom power is available only for XLR inputs.
• Set input gain (Gen 2, Max, 876): While playing, turn the gain knob up to boost your microphone or instrument signal before recording. Aim to keep signal meters in the green and yellow in the meter, avoiding the red (clipping). To set gain automatically, click AUTO-GAIN, then play your loudest part for ten seconds, and let UAD Console automatically set your gain to a safe level.
• Set input gain (Volt 1): While playing, turn the gain knob for your input up to boost your microphone or instrument signal before recording. Aim to keep the LED signal indicators in the green, and avoid the red (clipping).
• Apply Tone Shaping (Gen 2, Max): Cycle through classic preamp sounds with the TONE button.
• Apply Max compression presets (Max): Cycle through classic compressor sounds with the MAX button.
• Apply Vintage and 76 Comp processing (876): Toggle vintage tube preamp emulation or built-in 1176-style analog compression with the VINTAGE and 76 COMP buttons.

Listen to direct or DAW software signals

When you mix signals with UAD Console, you can hear your inputs without latency (direct monitoring) or hear your signals through your DAW software (software monitoring).

• To hear inputs without latency, unmute channels with the the mute (M) switches on each channel fader to monitor channels directly in UAD Console.
• To hear inputs through your software, mute channels in UAD Console to monitor through your software (for example, when using software plug-ins).

Mix your signals

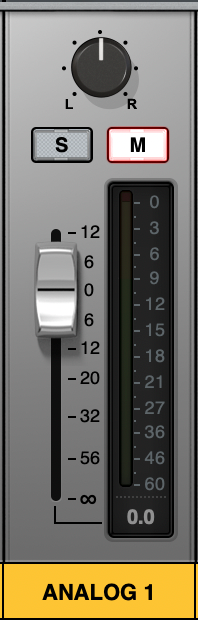

• Adjust channel faders and panning: Adjust how loud an input sounds in your monitor mix, and where it sits in the stereo field, with the channel faders and pan knobs.
  Note: Moving the faders doesn't change the signals sent to your DAW for recording. Only the level in your headphones or monitor speakers changes.
• Solo a channel: Toggle the Solo (S) switch to temporarily hear only the current channel. You can solo multiple channels at once.

Make different individual mixes with the Monitor Mix and Cues

• Monitor mix: Listen to the main mix that you hear in the speakers and headphones (if not assigned to Cues).

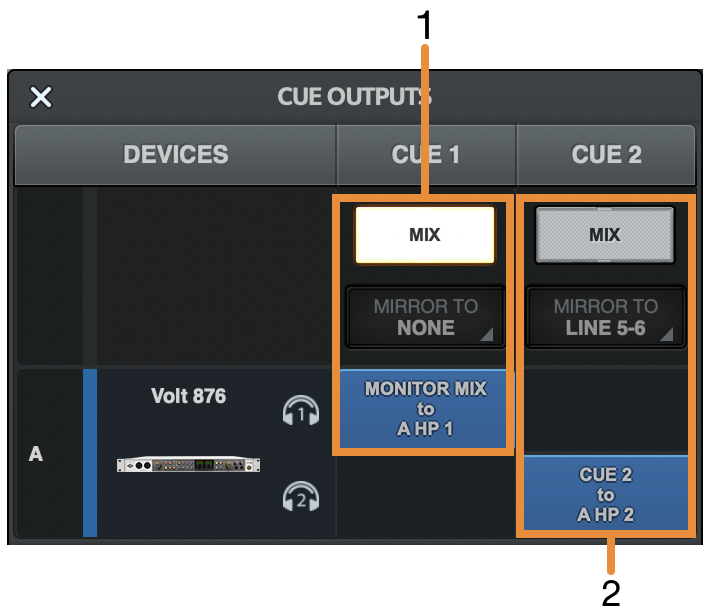

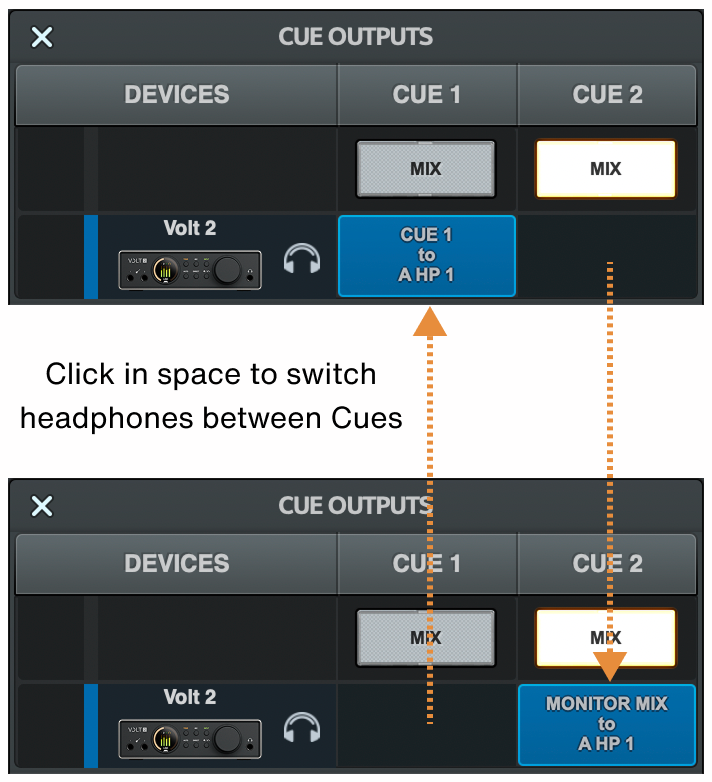

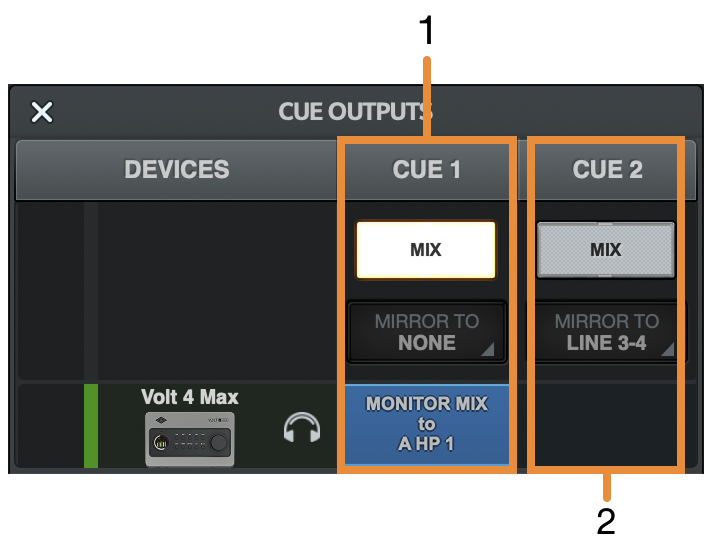

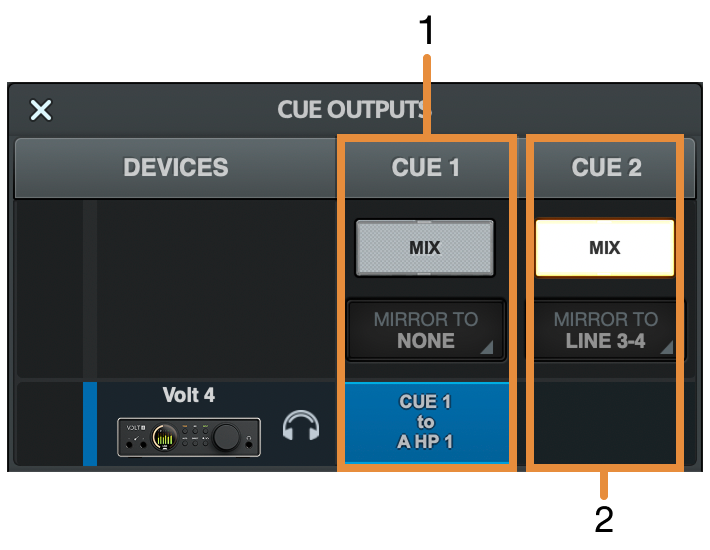

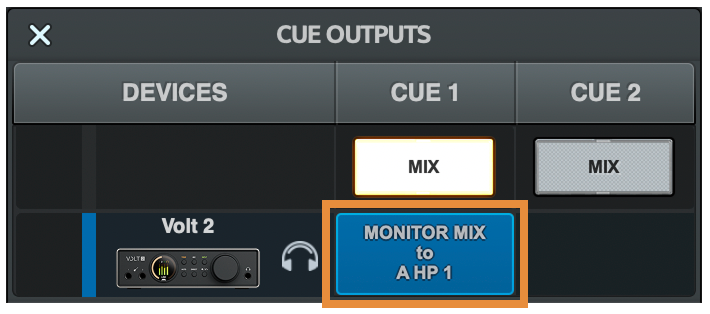

• Cue mixes: Cues are separate mixes you can send to headphone outputs, or to a specific hardware output. For example, a vocalist can get more of their own voice in their headphones,without changing what you hear in the main mix.

UAD Console for Volt Controls

UAD Console for Volt always shows certain screen elements (the title bar, info bar, meter bridge, and input channel strips). You can show or hide other UAD Console elements to suit your workflow. The following illustration highlights some sections of the UAD Console for Volt window.

Tip: UAD Console supports multiple levels of undo and redo. To undo a change in UAD Console, press Command+Z (Mac) or Alt+Z (Windows).

UAD Console (Volt 2 Max)

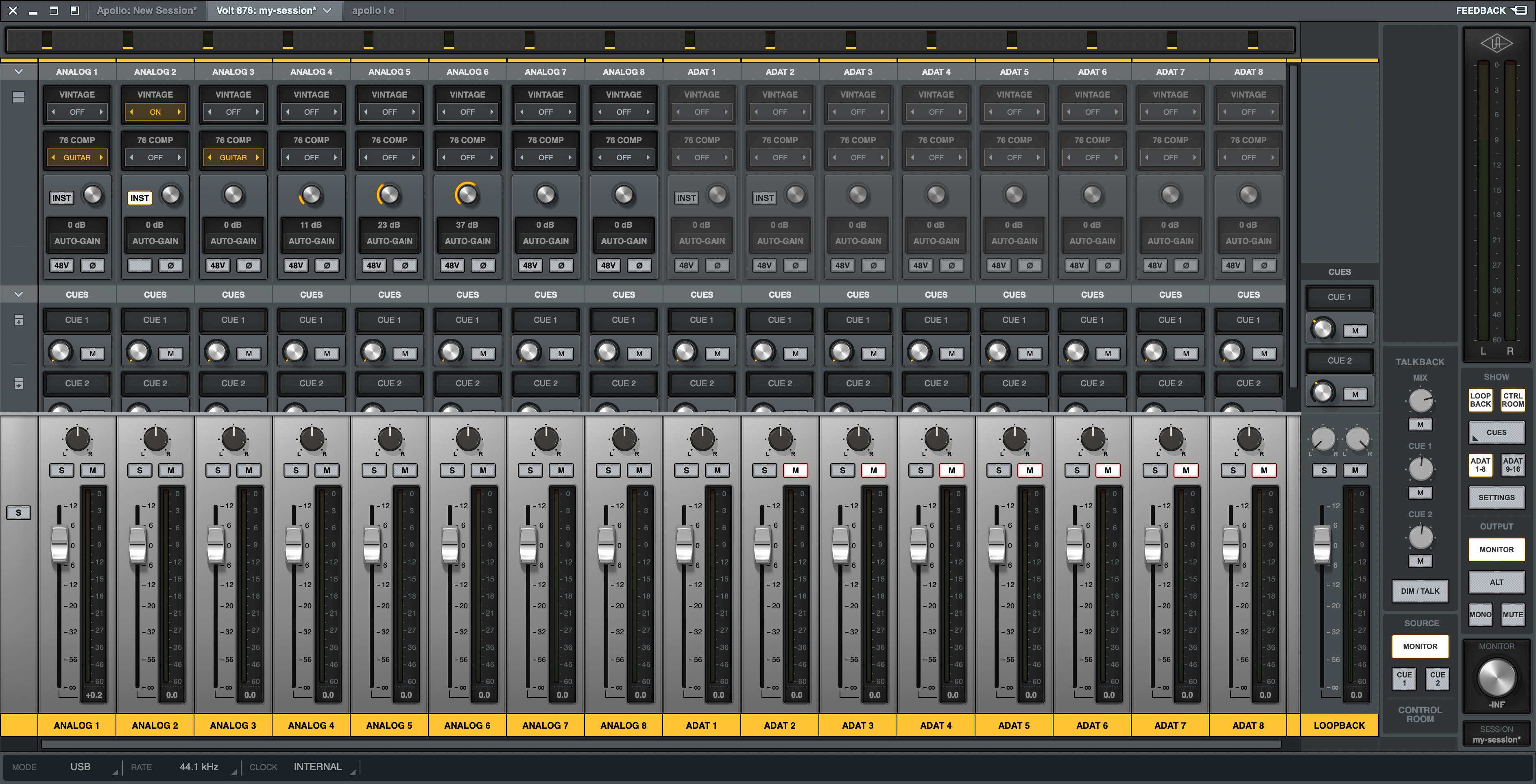

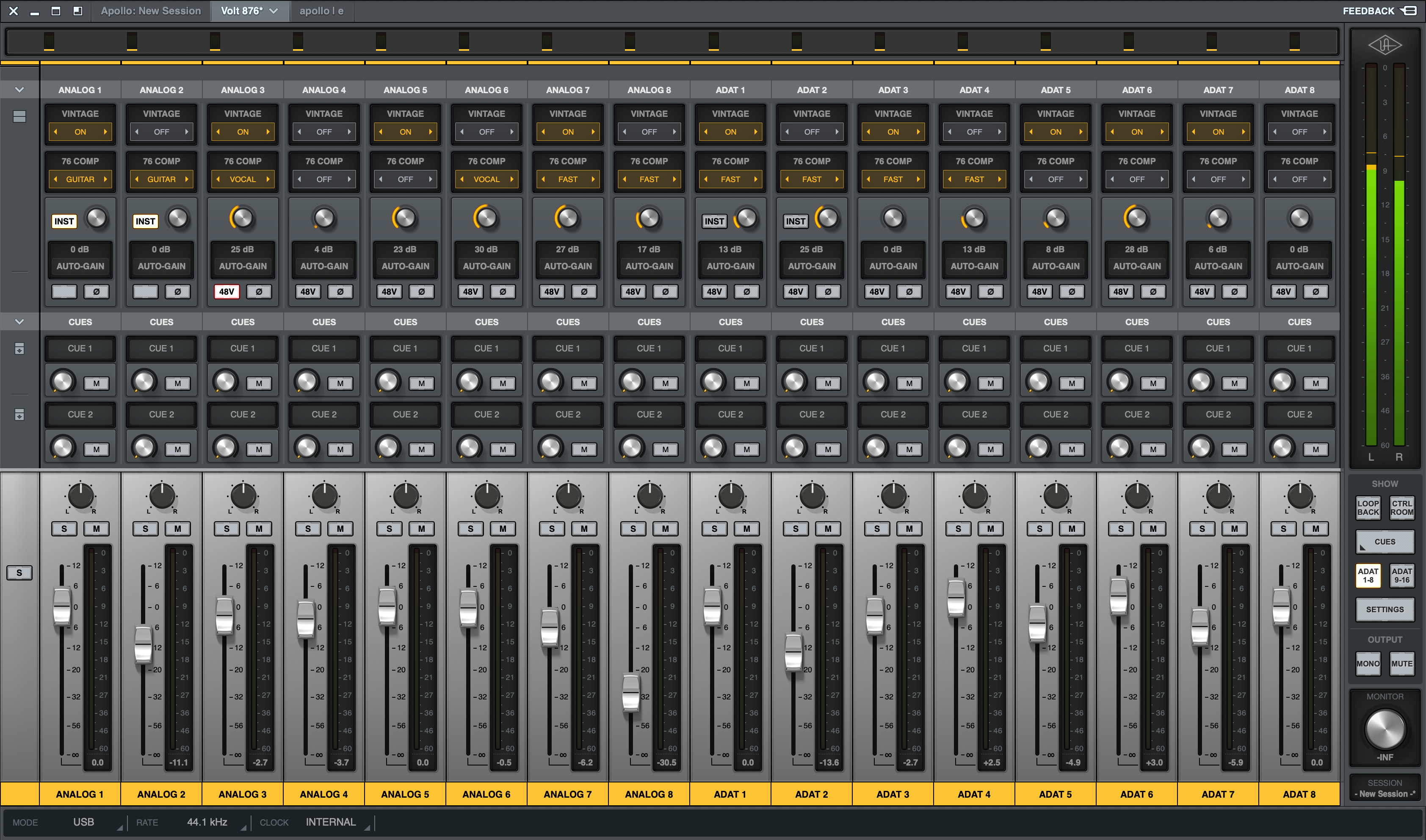

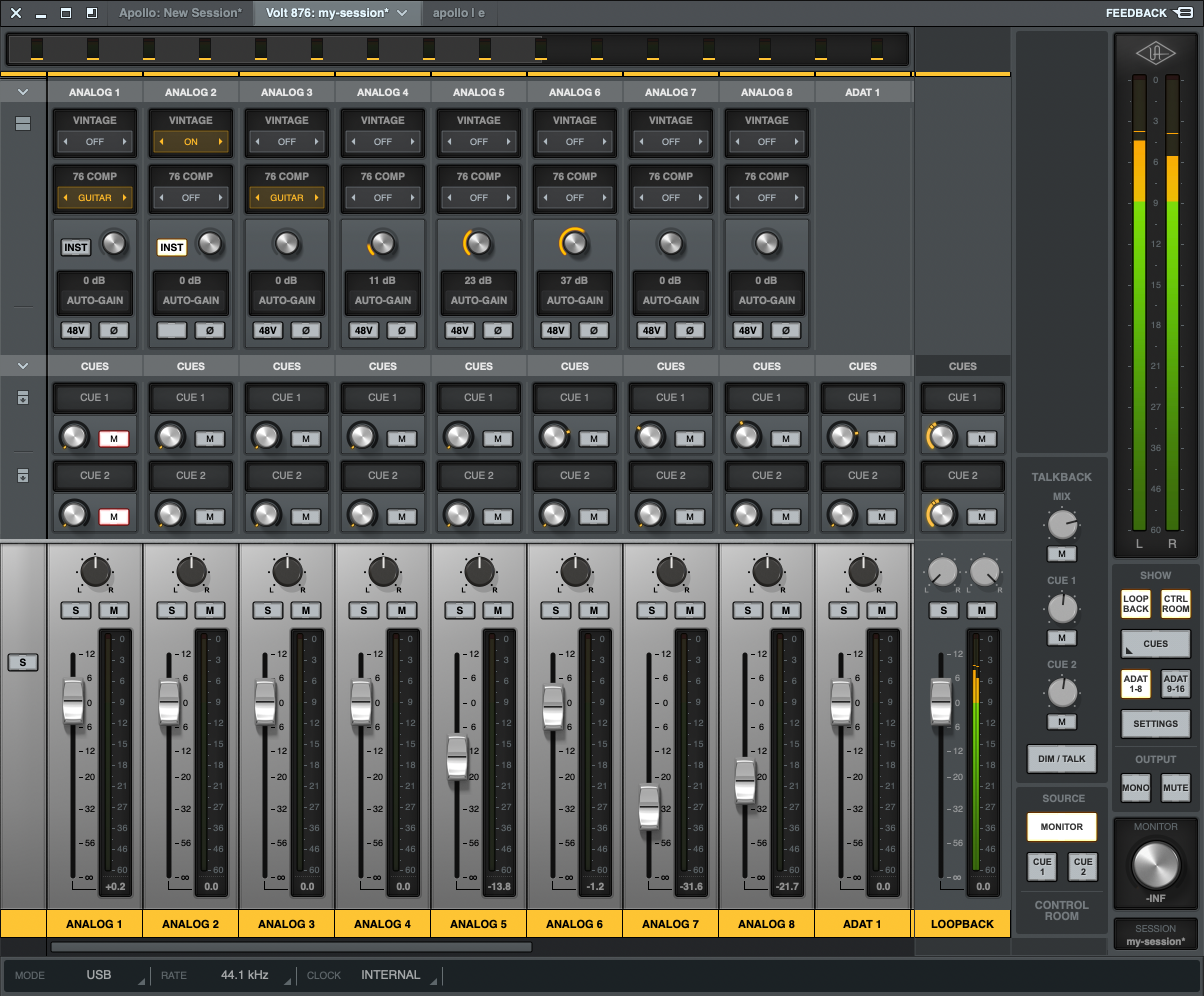

UAD Console (Volt 876)

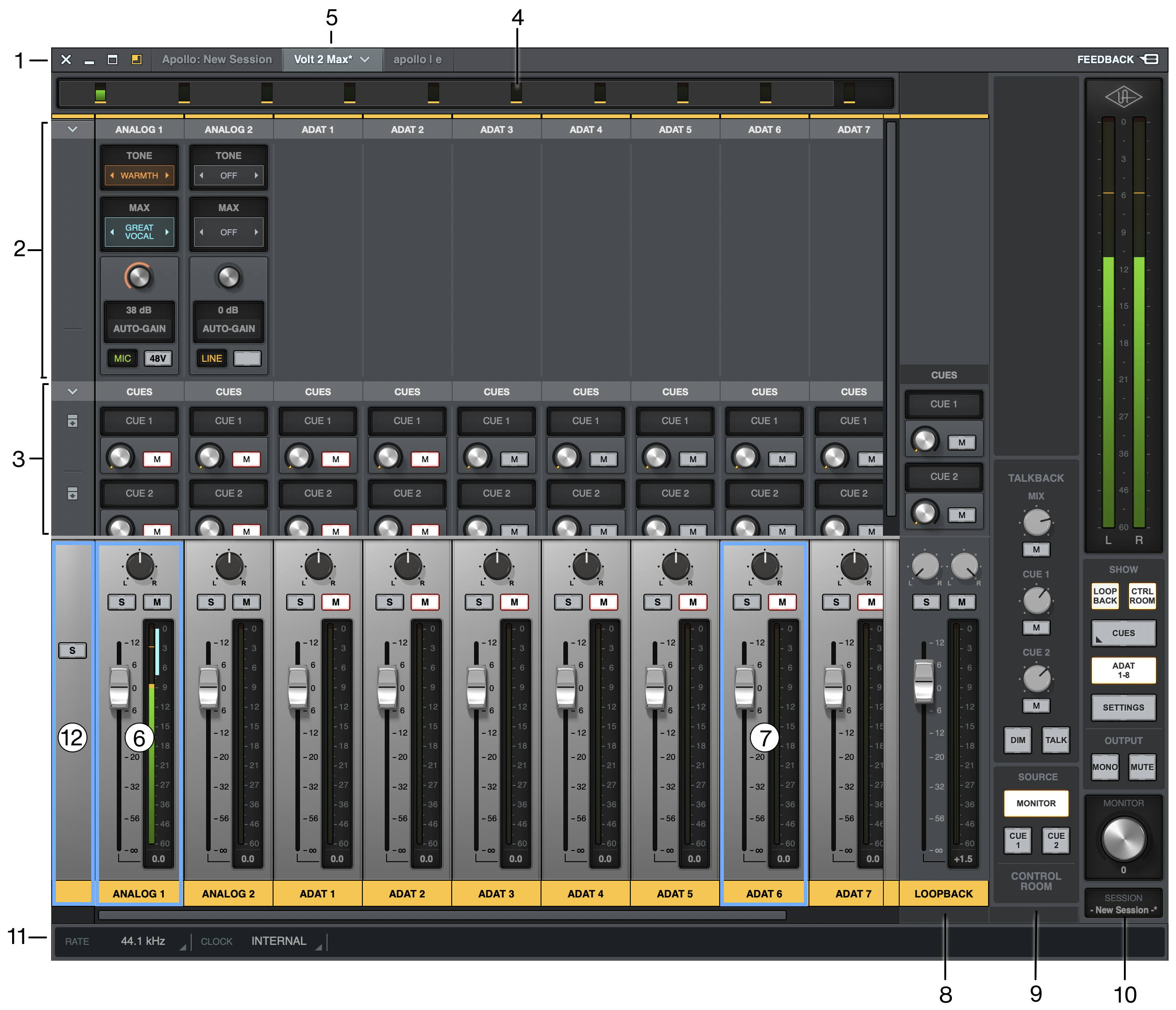

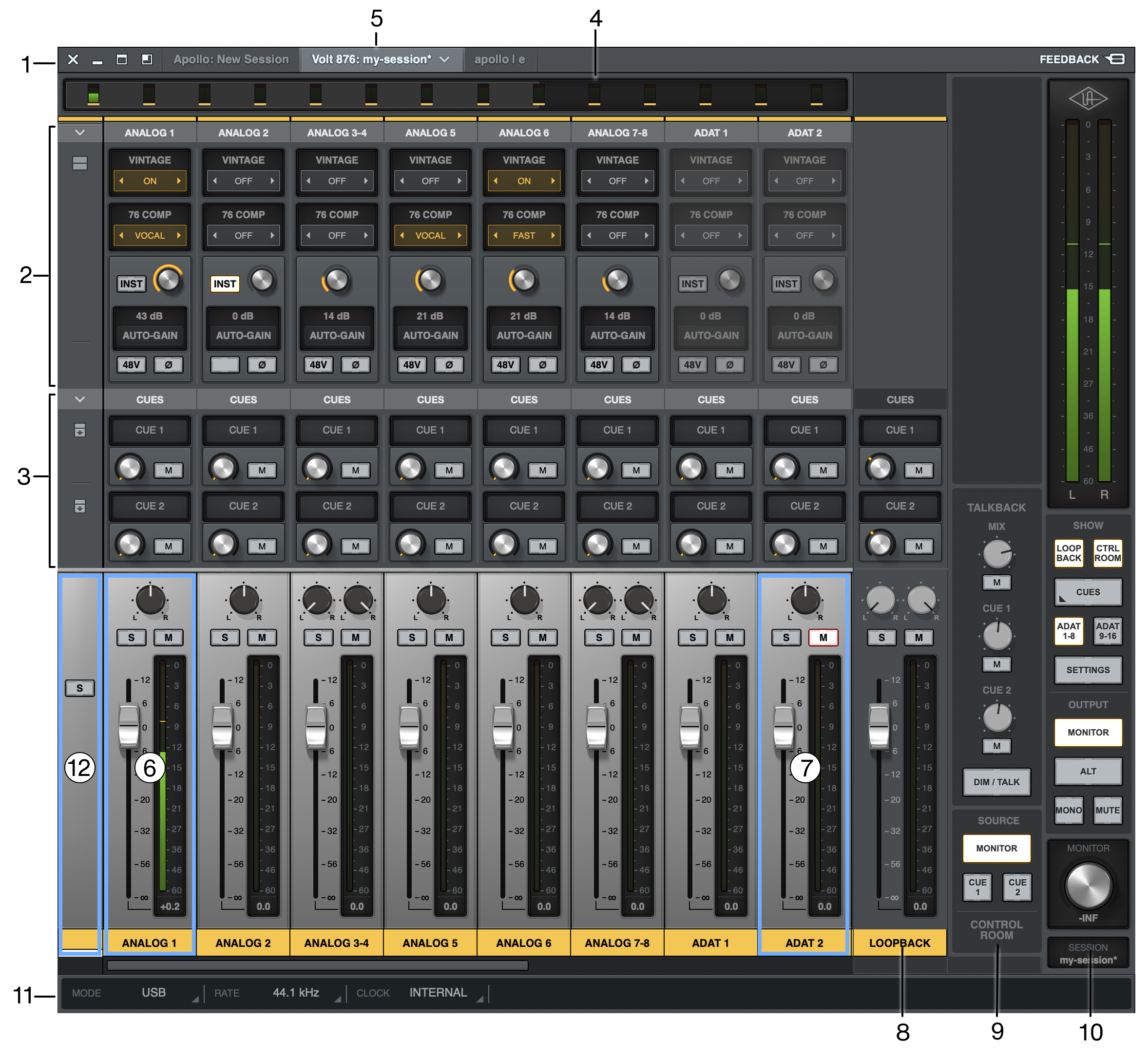

1. Title bar: Contains the Close, Minimize, Maximize, and Snap buttons, and the Device tabs. See Title Bar for details.
2. Preamp controls: On preamp inputs, lets you configure preamp settings.

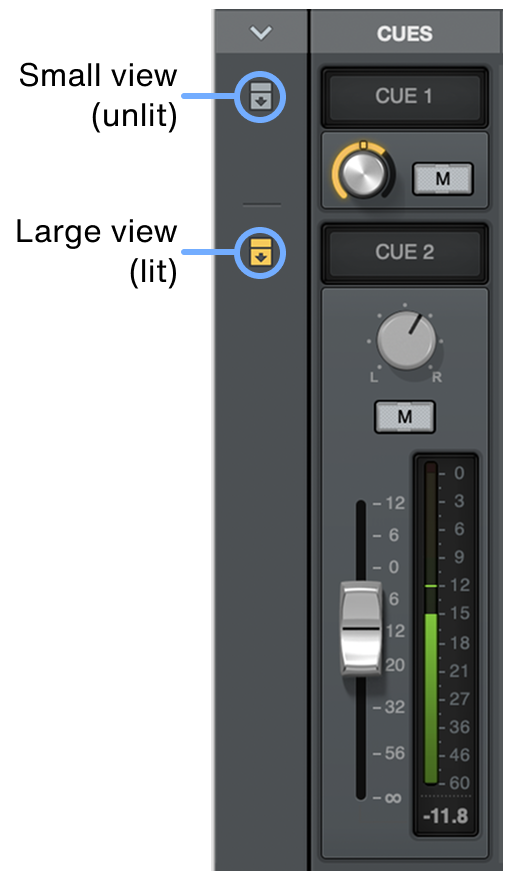

3. Cue controls: Lets you adjust up to two independent cue mixes.
4. Meter bridge: Shows small level indicators for all currently visible inputs. Drag left or right in the meter bridge to see any inputs that may be out of view. See Meter Bridge for details.
5. Device tabs: Selects the device to control with UAD Console here. You can select Apollo, Volt, or Apollo E tabs (if present).

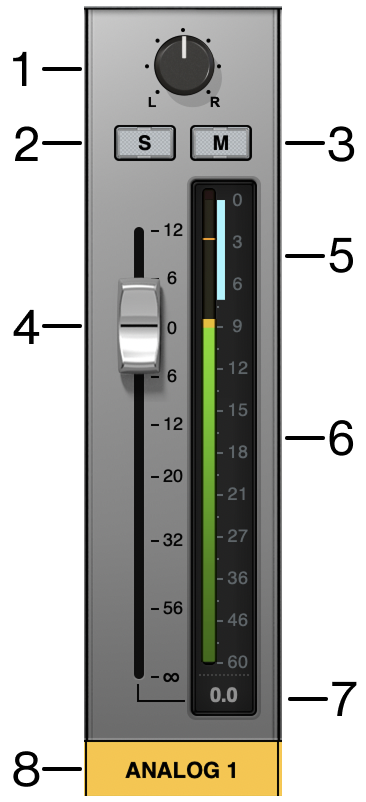

6. Monitor Mix controls (analog channel controls and meters): Lets you adjust output mix controls for signals connected to Volt's analog inputs, and displays signal levels (including gain reduction for Max models)..
7. Digital channel controls (Volt 4, Max, 876): Lets you adjust output mix controls for signals connected to Volt's digital inputs.

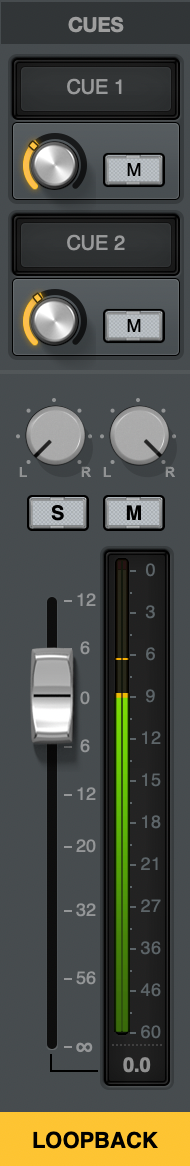

8. Loopback channel: Lets you adjust controls for blending computer system audio into the monitor or cue mixes.

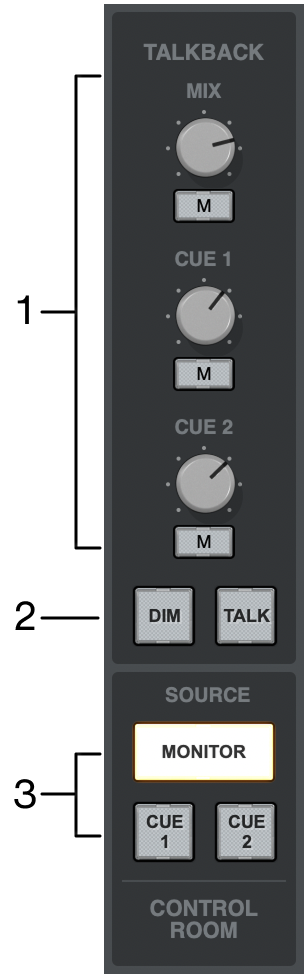

9. Control Room column (Max, 876): Lets you use Volt's talkback mic to address performers through Cue mixes, and to choose which source to monitor.
10. Monitor column: Lets you configure which inputs to show in UAD Console, configure cue sources, control the main mix level to your monitor speakers, and load/save session files.
11. Info bar: Lets you choose the sample rate, clock source, and Volt 876 operating mode. See Info bar for details.
12. Options column: Contains buttons to switch the Preamp and Cue rows between large and small views, and the Clear Solo (S) switch to toggle Solo on/off for any soloed channels.

Title Bar

The Title Bar is the topmost strip in the UAD Console window, as shown below.

UAD Console Title Bar

Volt (or your custom Volt device name, if entered in Settings) and the session name are displayed at the top of the title bar, in the Volt tab. Click a tab to choose a different device, or use the key commands to navigate (Shift+Cmd+left/right arrow keys in macOS, Shift+Ctrl+left/right arrow keys on Windows).

If you have multiple Volt 876 USB and ADAT mode devices connected and not configured for expansion, you can click the Volt name in the Title Bar and select a device to view.

The Title Bar includes Close, Minimize, Maximize, and Snap buttons. Click the “X” button to close the UAD Console window and quit UAD Console.

Tip: Click the Snap button to fit the window contents The button is highlighted when the contents are snapped.

Meter Bridge

The Meter Bridge at the top of the UAD Console window shows small signal level meters. These small meters mirror the activity of the high-resolution input meters that are displayed next to each channel’s input fader.

The analog input meters are always visible. You can show or hide digital input meters, if available on your Volt model, with the ADAT switch(es) in the Monitor column.

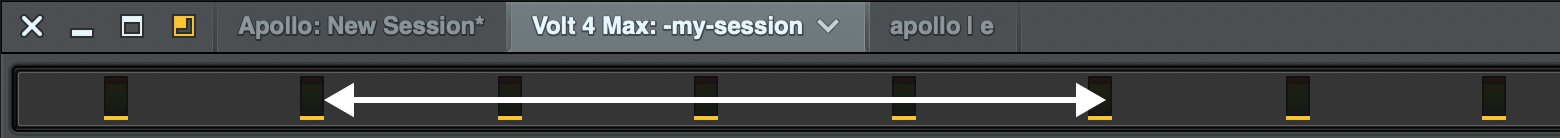

Drag left or right in the meter bridge to see any inputs that may be out of view (if all channels are not already visible).

Info Bar

The Info Bar is where you can view and access commonly adjusted settings.

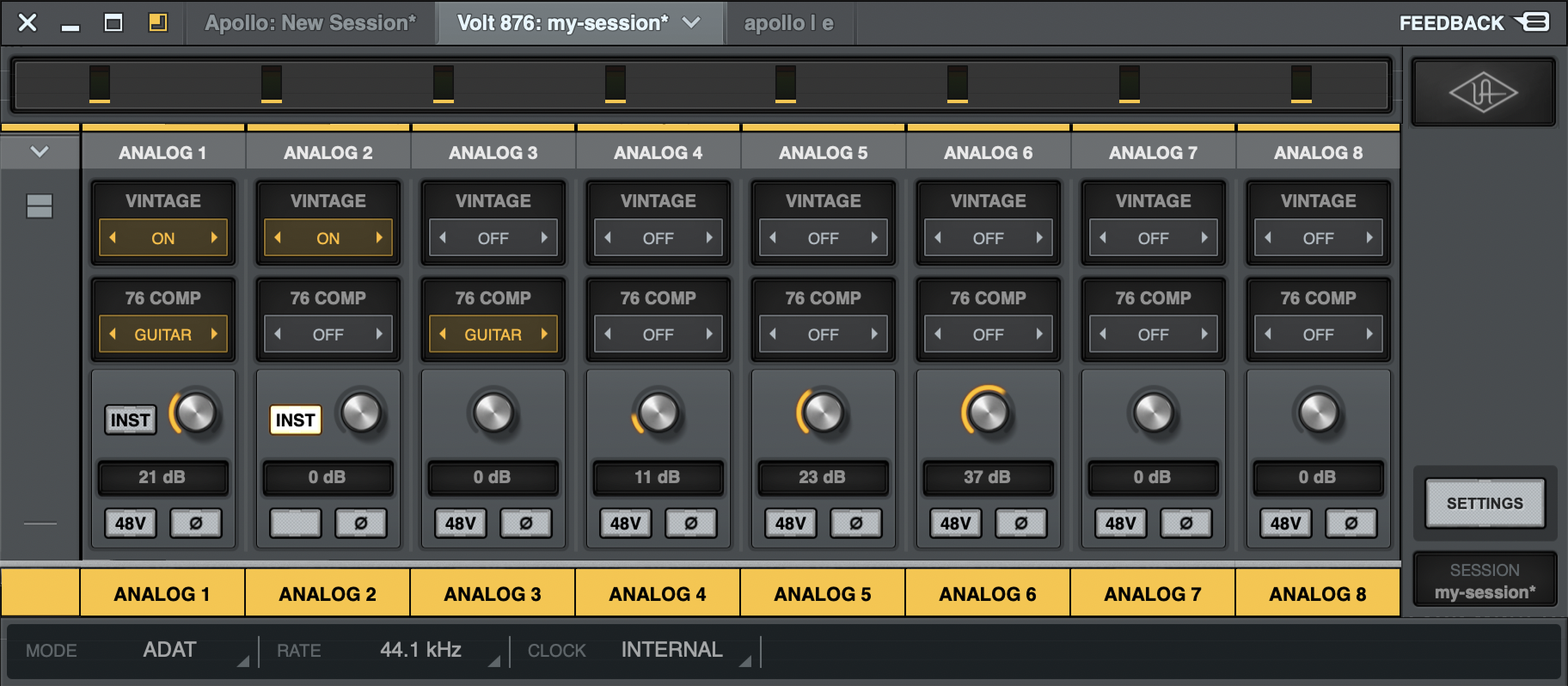

Info bar for Volt 876 (includes MODE menu)

Info bar for Volt Gen 2 and Volt Max

Mode (876)

Sets the operating mode for Volt 876. See USB mode and ADAT mode for complete details.

Sample Rate

View the sample rate for A/D and D/A conversion, and click to choose a different sample rate. Available sample rates are 44.1, 48, 88.2, 96, 176.4, and 192 kHz.

The number of available ADAT channels changes at higher sample rates (88.2 kHz or higher).

Clock Source

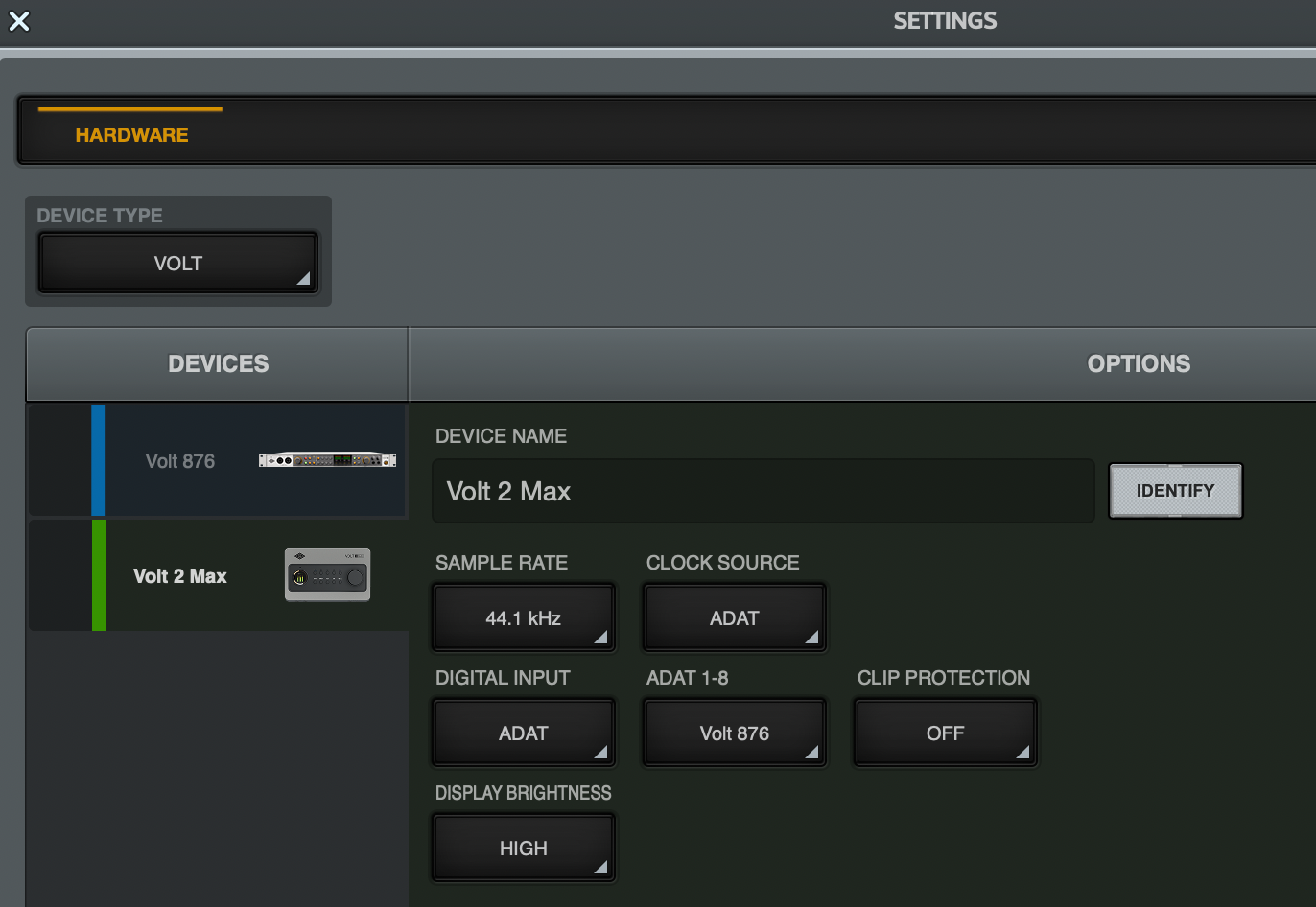

View the active clock source (Internal, ADAT, S/PDIF, or Word Clock) here, and click to set a different clock source. The clock source flashes red if the currently selected clock is unresolved (when digital audio is not synchronized).

• Internal: The clock source is Volt's internal clock.
• ADAT (Volt 4, Max, 876): The clock source is the incoming ADAT signal. ADAT is only available when the digital input format is ADAT in UAD Console settings, or the unit is in ADAT mode.
• S/PDIF (Volt 4, Max, 876): The clock source is the incoming S/PDIF signal. S/PDIF is only available when the digital input format is S/PDIF in UAD Console settings.
• Word Clock (876): The clock source is from an external clock connected to the word clock input.

Important: When the Clock Source parameter is set to use any external clock source, manually set the Volt sample rate to match the word clock sample rate in UAD Console settings.

About Volt 876 USB and ADAT Modes

Volt 876 has two main operating modes, USB and ADAT. These two modes are completely different configurations of the Volt 876 inputs and outputs. The mode you need depends on how you use Volt 876. For details, see Mode (Volt 876).

Volt Input Features in UAD Console

The following input channel types are available on Volt models in UAD Console.

• Volt analog inputs
• Volt digital inputs (Volt 4, Max, 876)
• Volt loopback channel

Volt analog inputs

Analog inputs accept audio from analog sources such as a microphone, guitar, bass, keyboards, or other audio gear.

The following preamp feature overviews are available for Volt models. Additional details for each feature are provided later in this manual.

Volt Gen 2 preamp features

These features are available on Volt 2 and Volt 4.

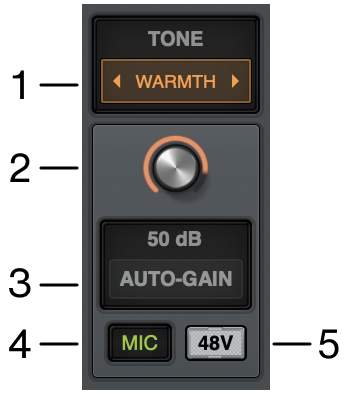

1. Preamp Tone Shaping: Applies the sound of classic analog mic preamps to the input. Toggle through the tone presets and off with the right/left arrows.
2. Gain knob: Manually sets the level for the incoming signal with the Gain knob. This adjusts the signal level to your DAW software.
3. Assistive Auto-Gain: Adjusts the input level for one or more channels automatically. This sets the level to your DAW software. See Using Assistive Auto-Gain for details.
4. Mic/Line indicator: Mic and Line inputs are automatically detected by the rear combo jacks.
5. 48V switch: Applies phantom power when required for microphones.

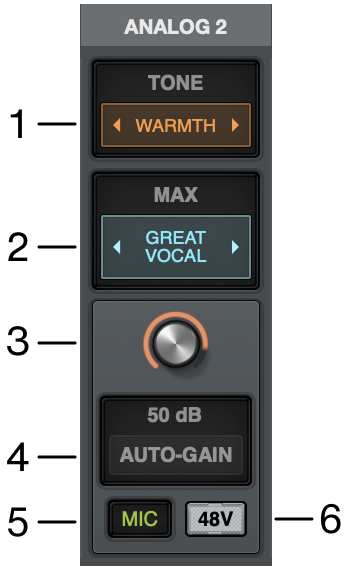

Volt Max preamp features

These preamp features are available on Volt 2 Max, Volt 4 Max, and Volt 4P Max.

1. Preamp Tone Shaping: Applies the sound of classic analog mic preamps to the input. Toggle through the tone presets and off with the right/left arrows.
2. Max compression: Applies compressor sounds tuned for vocals, guitar, and bass to the input. Toggle through Max presets and off with the right/left arrows.
3. Gain knob: Manually sets the level for the incoming signal with the Gain knob. This adjusts the signal level to your DAW software.
4. Assistive Auto-Gain: Adjusts the input level for one or more channels automatically. This sets the level to your DAW software. See Using Assistive Auto-Gain for details.
5. Mic/Line indicator: Mic and Line inputs are automatically detected by the rear combo jacks.
6. 48V switch: Applies phantom power when required for microphones.

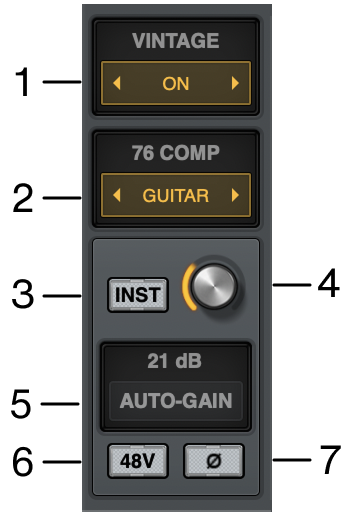

Volt 876 preamp features

These preamp features are available on Volt 876.

1. Vintage preamp mode: Applies classic analog preamp tone to your signal. Vintage preamp tone is recorded in your DAW software.
2. 76 Compressor: Applies analog 1176-style compression to the input signal. 76 compression is recorded in your DAW software.
3. Instrument switch: Sets input 1 or 2 to accept instrument (Hi-Z) input.

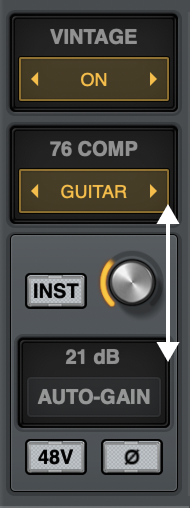

4. Gain knob: Manually sets the level for the incoming signal with the Gain knob. This adjusts the signal level to your DAW software.
5. Assistive Auto-Gain: Adjusts the input level for one or more channels automatically. This sets the level to your DAW software. See Using Assistive Auto-Gain for details.
6. 48V switch: Applies phantom power when required for microphones.
7. Polarity switch: Reverses the polarity of the channel to correct for phase issues.

Preamp Tone Shaping (Volt Gen 2 and Max)

Click to cycle through preamp Tone Shaping presets for the input. Cycling through the Tones changes the name and color of the Tone label.

Three Tones are available:

• OFF (white): No tone shaping.
• Warmth (amber): Vintage, saturated tube glow with soft transients and smoothness, reminiscent of the UA 610 tube preamplifier.
• Focus (green): Punchy transients with focus and clarity, well-liked on drums, guitars, and bass, reminiscent of classic solid-state American consoles.
• Shine (blue): Musical and full, with a silky top end, reminiscent of venerable British Class-A consoles.

Max (Volt Max)

Click repeatedly to cycle through Max compressor settings. Cycling through the Max settings changes the name and color of the Max label.

The following Max presets are available:

• Off: Compression off.
• Great Vocal: 1176 compression with a slow attack, fast release, and medium ratio for a great all-purpose vocal sound.
• Rap Vocal: LA-2A compression with limiter setting for aggressive focus.
• Album Vocal: 1176 compression with slow attack, very fast release, and low ratio for overall vocal smoothing.
• Electric Guitar: 1176 compression with medium attack, very fast release, and low ratio, for punchy but smooth electric guitars.
• Jangly Acoustic: LA-2A compression for smooth, warm acoustic guitars.
• Tight Bass: VCA compression tuned for fat, round bass tones.

Vintage preamp mode (Volt 876)

Click to toggle Vintage preamp mode, which adds a carefully crafted analog tube preamp emulation for a richer sound. When the button is lit orange, the circuit is active.

76 compressor (Volt 876)

Click the Comp button to cycle through 76 Comp settings, which add compression for clarity and punch to voice, guitars, and more. Click a preset name to directly enable or disable it.

Tip: The signal level increases when the compressor is active, so you may want to readjust your Gain setting.

The following 76 compressor presets are available:

• Fast: Fastest attack, fast release for aggressive compression character.
• Guitar: Medium attack and very slow release preserves guitar/bass transients with longer sustain.
• Vocal: Slowest attack, slow release for classic smooth vocal compression.

Instrument switch (Volt 876 channels 1–2 only)

Press the INST switch to toggle the impedance and gain of the ¼" input to accommodate a Hi-Z instrument, such as an electric guitar or bass.

Gain knob

Adjust the gain for an analog input by dragging the knob. Adjust the level so your loudest sources never peak in the red on the UAD Console input strip meter.

Using Assistive Auto-Gain (Gen 2, Max, 876)

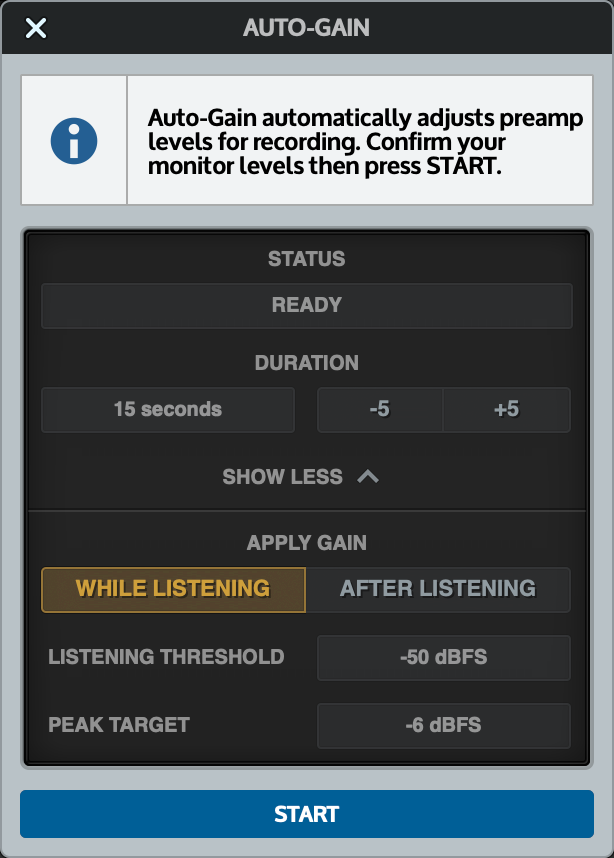

You can set the preamp's input gain automatically with Assistive Auto-Gain.

CAUTION: Assistive Auto-Gain automatically adjusts preamp levels for recording. To avoid damage to your hearing, confirm your monitor levels are set safely before proceeding.

To set gain automatically:

1. On any preamp channel, press the Auto-Gain button under the gain knob. The Auto-Gain floating window opens.

2. Press Start, and play your source as loudly as you will play during the performance. The gain is set automatically.

By default, Assistive Auto-Gain detects and adjusts levels for 10 seconds. To increase or decrease the duration by ±5 seconds, press the -5 or +5 buttons. You can adjust the duration while Auto-Gain is listening.

The Auto-Gain floating window closes automatically after the listening duration completes. To manually close the Auto-Gain window, click Done.

Note: When using Auto-Gain with stereo linked inputs, the same gain amount is applied to both inputs. Auto-Gain sets the level based on the peak from the loudest input from the two channels.

Tip: You can set Auto-Gain on multiple preamps simultaneously. Simply click the Auto-Gain button for each preamp you want to adjust. The Auto-Gain options in the floating window apply to all Auto-Gain-enabled preamps.

Auto-Gain settings

Click SHOW MORE to see additional settings for Auto-Gain.

• Duration: Sets the amount of time that Auto-Gain listens while setting gain levels. The default setting is 10 seconds. Change the duration by dragging up or down in the box, or clicking the -5 or +5 buttons. To type a value, click in the box and type, then press Enter.
  Note: The maximum duration is 90 seconds.
• Apply Gain options:
  • WHILE LISTENING applies gain changes every two seconds for the Auto-Gain duration. You can only use WHILE LISTENING with one or two preamps enabled for Auto-Gain.
  • AFTER LISTENING applies the gain change after the Auto-Gain listening duration is complete.
• Listening Threshold: Determines the lowest level at which Auto-Gain detects a signal and begins adjusting gain. The default setting is -50 dBFS, which may be too quiet for low-level sources. To set a different threshold, drag up or down in the box, or click in the box and type a new value, then press Enter.
• Peak Target: Determines the maximum peak level that Auto-Gain should set for your material. The default setting is -8 dBFS. To set a different peak target, drag up or down in the box, or click in the box and type a new value, then press Enter. Be aware that higher settings (less headroom) increase the risk of digital clipping.

48V phantom power

If you are using equipment that requires XLR phantom power, such as a condenser microphone, engage the 48V switch on the channel. When 48V phantom power is enabled, the 48V LED is lit red in UAD Console and on the Volt hardware. The 48V LED/indicator blinks briefly when enabling or disabling phantom power.

Caution:

• Activate 48V only with compatible equipment such as phantom powered microphones. Incompatible equipment could be damaged by the applied voltage.
• Do not connect or disconnect equipment from the input when 48V phantom power is enabled, or when the LED is blinking.

Polarity (Volt 876)

To invert the channel's signal polarity toggle the polarity switch. When enabled, the switch is lit in UAD Console and on the Volt 876 hardware for the selected channel.

Tip: Invert polarity to reduce phase cancellations when more than one microphone is used to record a single source.

Volt digital inputs

TOSLINK optical digital inputs are available on:

• Volt 4 Gen 2
• Volt 2 Max
• Volt 4 Max
• Volt 4P Max
• Volt 876

The digital inputs (ADAT or S/PDIF) operate in the same way as analog inputs, but they don't have preamps. Signal levels for the digital inputs are set by adjusting the output levels of the digital gear connected to Volt.

To choose the digital channel format, see UAD Console for Volt Settings.

Show and hide ADAT channels

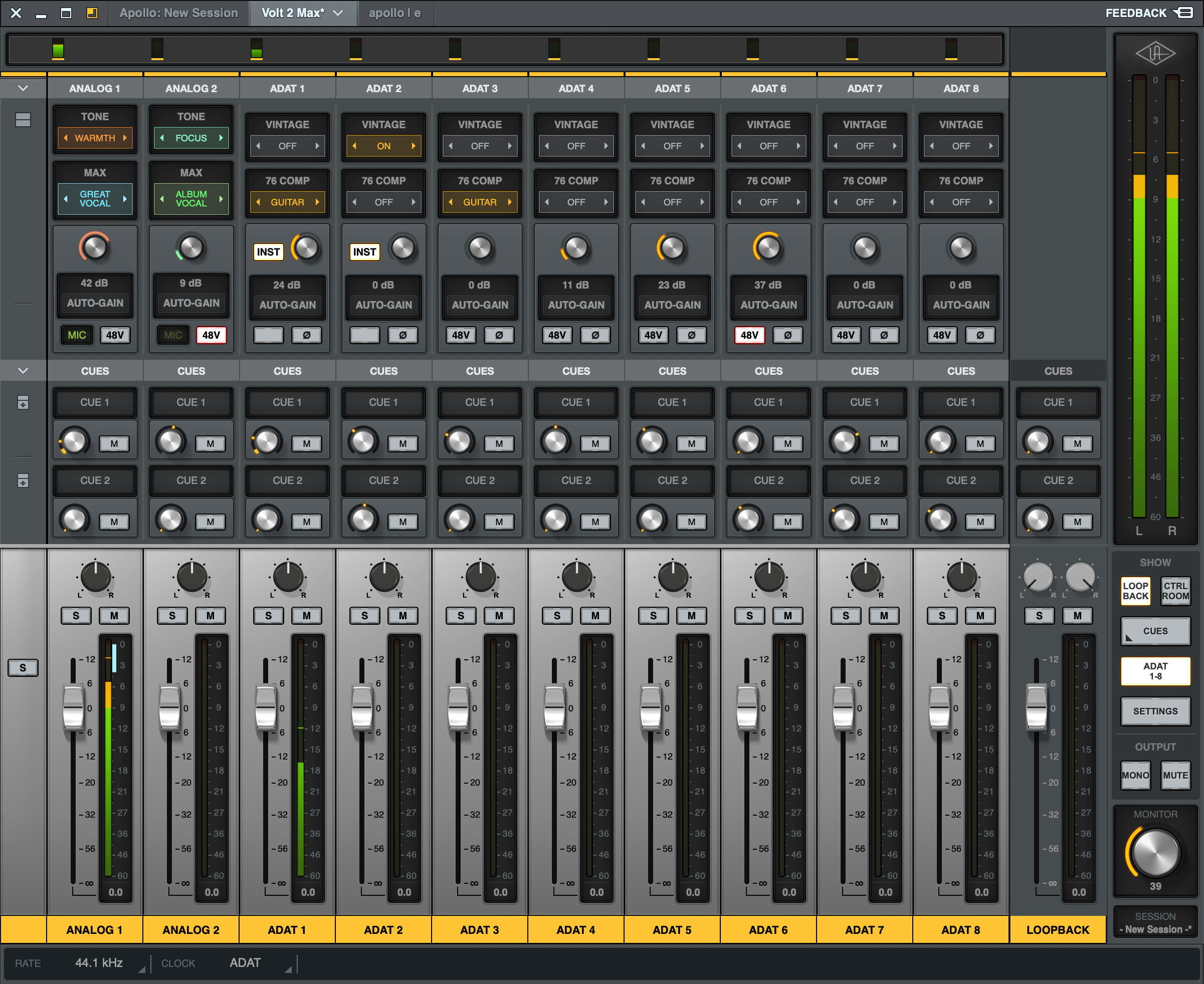

To show or hide Volt's ADAT channels in UAD Console, click the ADAT buttons below Cues in the Monitor Column. These buttons are labeled with the channel numbers that are shown/hidden when toggled (channels are shown when lit). The number of available channels can change, depending on the sample rate.

If S/PDIF digital format is specified, the channels are always displayed and the buttons for ADAT channels do not appear.

Note: Digital inputs are always heard, even when hidden. Use the Mute switch to silence a digital channel.

Volt 876 ADAT channels

Up to 16 ADAT input channels are available in the UAD Console mixer for Volt 876, depending on the sample rate.

• Sample Rate (kHz): 44.1, 48
  • Optical IN 1: Eight channels, 1–8
  • Optical OUT 1: Eight channels, 1–8
  • Optical IN 2: Eight channels, 9–16
  • Optical OUT 2: Eight channels, 9–16
• Sample Rate (kHz): 88.2, 96 (S/MUX)
  • Optical IN 1: Four channels, 1–4
  • Optical OUT 1: Four channels, 1–4
  • Optical IN 2: Four channels, 5–8
  • Optical OUT 2: Four channels, 5–8
• Sample Rate (kHz): 176.4, 192 (S/MUX)
  • Optical IN 1: Two channels, 1–2
  • Optical OUT 1: Two channels, 1–2
  • Optical IN 2: Two channels, 3–4
  • Optical OUT 2: Two channels, 3–4

Volt 876 S/PDIF channels

With S/PDIF inputs, two input channels and two output channels are available, regardless of the sample rate. S/PDIF output channels are mirrored on Volt 876's two optical outputs.

• Sample Rate (kHz): 44.1, 48, 88.2, 96, 176.4, 192
  • Optical IN 1: Two channels, L/R
  • Optical OUT 1: Two channels, L/R
  • Optical IN 2: Disabled
  • Optical OUT 2: Two channels, L/R (mirrored)

Volt 4 and Max ADAT channels

Up to eight ADAT input channels are available in the UAD Console mixer for Volt 4 and Max, depending on the sample rate.

• Sample Rate (kHz): 44.1, 48
  • Optical IN: Eight channels, 1–8
• Sample Rate (kHz): 88.2, 96 (S/MUX)
  • Optical IN: Four channels, 1–4
• Sample Rate (kHz): 176.4, 192 (S/MUX)
  • Optical IN: Two channels, 1–2

S/PDIF

With S/PDIF inputs, two input channels (L/R) are available, regardless of the sample rate.

• Sample Rate (kHz): 44.1, 48, 88.2, 96, 176.4, 192

Volt loopback channel

The loopback (software playback) channel allows you to route computer system audio into the UAD Console mixer. With this channel you can incorporate audio from audio apps, videos, games, or other system events into your audio production stream.

These are typical loopback channel uses.

• Record system audio: Capture music, podcasts, or video sound directly from your computer without a microphone.
• Live stream: Play background music or sound effects for your audience while live streaming.
• Virtual meetings: Share audio clips or a song with others during a virtual meeting or a video conference call.
• Capture game audio: Record in-game sounds cleanly, without picking up keyboard noise or other room sounds.

To route audio into the loopback channel, select LOOPBACK L/R as the output device in your audio software's advanced settings. Not all software has this capability.

Monitor Mix Controls

The monitor mix controls in UAD Console allow you to mix audio input signals that are heard in monitor outputs 1-2 (and Alt outputs 3-4, when configured). Monitor mix controls appear slightly differently for mono and stereo linked tracks.

1. Input pan: Moves the track left and right in the stereo panorama. Stereo linked inputs include left and right pan controls.
2. Input solo: Only this input is heard in the monitor mix. Multiple inputs can be soloed at the same time.
3. Input mute: Input is not heard in the monitor mix. Multiple inputs can be muted at the same time.
   Important: To monitor an input only through your DAW (software monitoring), you must mute the input. When not muted, direct monitoring is enabled on the input.
4. Input fader: Adjusts the level of the input in the monitor mix. The input fader does not affect the level sent to the DAW.
5. Compression meter (Max): Displays the amount of Max gain reduction.
6. Input level meter: Displays the input signal level. The input fader does not change the meter level or DAW input level. To change the meter level, adjust the input's preamp gain (analog inputs only).
7. Input fader value: Displays the level in dB of the fader. Click to enter a specific value.
8. Channel name: Displays the input name. Click to rename the input, and to link or unlink stereo inputs.

Tip: You can toggle compact faders (making them shorter) by clicking the top edge of the fader area. Alternatively, choose View > Compact Monitor Faders from the UAD Console menus to toggle fader height.

Renaming and linking inputs

Click on the name of an input at the bottom of the channel strip to open the rename / link popover.

1. Input name: You can enter a custom name here. To restore the original name, clear the entry then close the popover.
2. Link button: Click this button to link or unlink a stereo pair. When the link button is lit, the track is linked. Stereo pairs must begin with an odd-numbered input (you can link input 5 & 6, but not 6 & 7).
3. Previous / Next: Click the arrows to cycle through the previous and next inputs.

Monitor Column

The Monitor Column contains elements related to monitor outputs, channel display, and cues. The Monitor Column is visible at the right side of the UAD Console window, when View > Section > Monitor is selected from the UAD Console menus.

1. Stereo level meters: Displays the monitor mix levels. These meters show the signals before the monitor output level control (pre-fader) and reflect the level of the D/A converters at the monitor outputs.
   Important: If clipping occurs, reduce levels feeding the monitor mix by lowering channel faders.
2. Loopback: Toggles display of the Loopback channel. See Loopback for details.
3. Cues: Opens the Cue Outputs window, where independent cue mixes are assigned to outputs. See Cues for details.
4. ADAT inputs: Toggles visibility of the ADAT inputs on ADAT-equipped Volt devices,if ADAT digital inputs are enabled in UAD Console Settings. See UAD Console for Volt Settings for details.

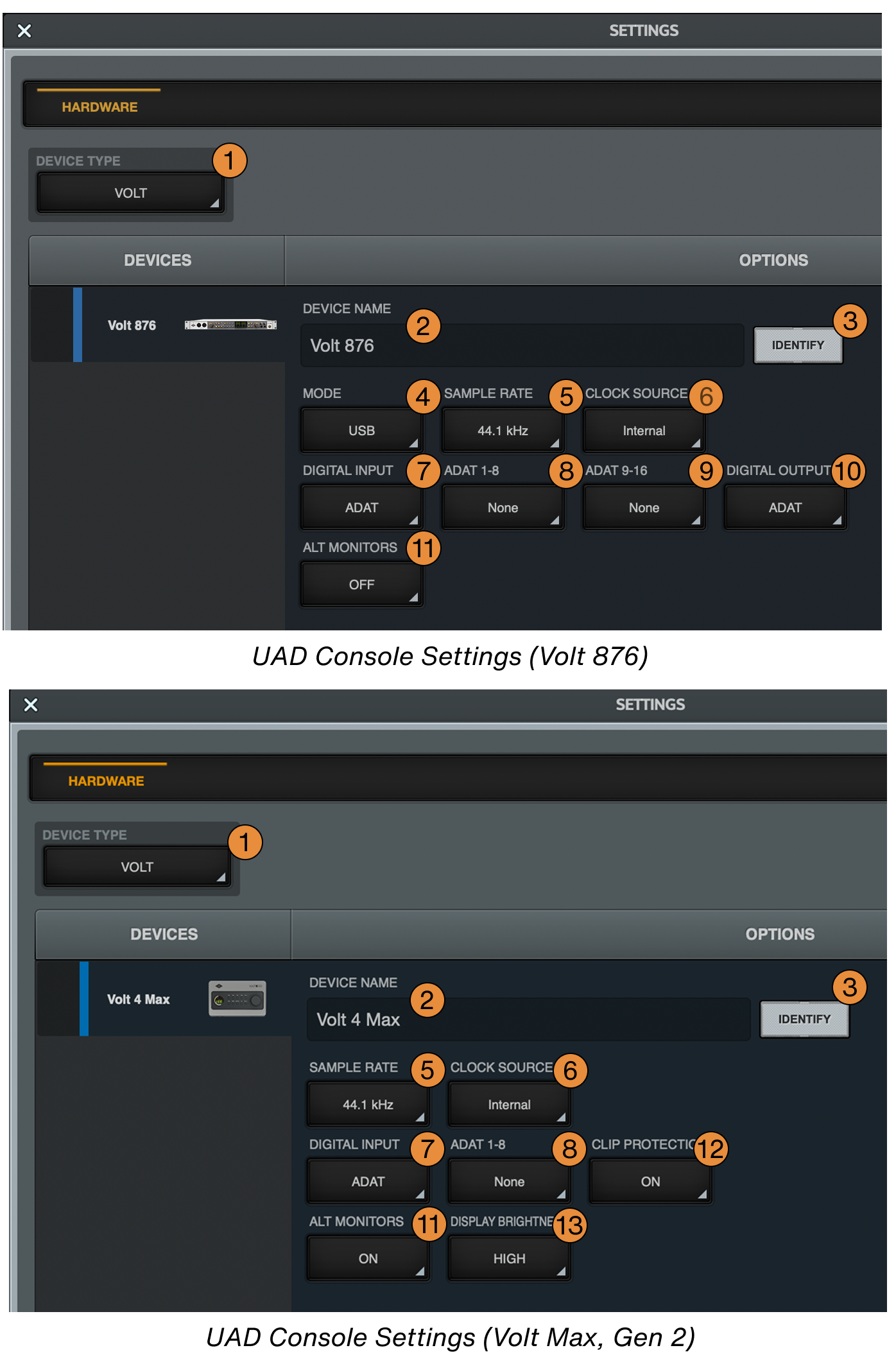

5. Settings: Shows the Settings window, where you can configure Volt hardware settings. See UAD Console for Volt Settings for details.
6. Monitor switch: When lit, the monitor mix is heard in the monitor (1–2) outputs.
7. Monitor Alt switch: When lit, the monitor mix is heard in the Alt (3–4) outputs. This button is visible only when ALT monitoring is enabled, on Volt 4 Max, Volt 4P Max, and Volt 876. See Alt monitoring for details.
8. Monitor Mono switch: Sums the left and right channels of the stereo monitor mix into a mono signal. See Mono for details.
9. Monitor knob: This is the master volume control for Volt's monitor outputs. It mirrors the monitor level shown on the Volt hardware (except Volt 1). Does not control headphone volume.
10. Ctrl Room switch: Toggles display of the Control room column, where you enable talkback, adjust talkback sends, and select which mix is heard at the monitor outputs.See Control Room for more details.
11. Monitor Mute switch: Mutes/unmutes the monitor 1–2 outputs. See Mute for details.
12. Session File: Displays the current session file name. Click here to open the session browser to save or load a Volt UAD Console session. See Session Files for details.

Output section details

Monitor options are controlled with the switches in the Output section.

By default, only Mono and Mute switches are displayed. When Alt monitoring is enabled, the Monitor and Alt switches are displayed.

Output section with Alt disabled (left) and Alt enabled (right)

Alt monitoring

On \Volt 4 Max, Volt 4P Max, and Volt 876 you can monitor the stereo mix on a secondary pair of speakers. You can enable the feature in UAD Console Settings, or from your Volt hardware.

Alt monitor outputs

When Alt monitoring is active, you hear the main mix on analog outputs 3–4. Connect your alternate speakers to those outputs for Alt monitoring.

Important: To prevent ALT from accidentally overriding existing Line Out 3-4 assignments, you must first enable the ALT function before the feature can be used. If the ALT button is unlit, the function is not yet enabled.

When Alt monitoring is active, any signals that were previously heard on outputs 3–4 are no longer heard on those outputs. For example, if a Cue mix is mirrored to outputs 3–4, that routing is removed. When Alt monitoring is disabled, signals previously heard on outputs 3–4 must be manually restored.

To enable Alt monitoring in UAD Console:

1. Click Settings in the Monitor column on the right side of the UAD Console window, or choose UAD Console > Settings from the UAD Console menus.
2. Set Alt Monitoring to On.
3. To disable Alt monitoring, set Alt Monitoring to Off.

Monitor / Alt switches

The Monitor and Alt switches send the mix to either the Monitor outputs or the Alt outputs. These switches are only available when Alt monitors are enabled in UAD Console Settings.

Mono

This switch sums the left and right channels of the stereo monitor mix into a monophonic signal. The mix is mono when the button is lit.

Mute

This switch mutes the monitor outputs. The monitor outputs are muted when the switch is lit. Headphone outputs are not muted. The Volt hardware mute indicator (except Volt 1) mirrors this setting.

Session Files

You can manage your Volt UAD Console configurations with session files. A session file saves your current UAD Console settings to disk. You can load a session file to restore UAD Console to a previously saved state.

Note: Monitor settings and hardware settings are global parameters that are not saved in session files.

The specific settings saved in Volt UAD Console session files are listed below:

Saved in Volt session file

• Analog preamp values (Tone, Max, Vintage, 76 Comp, Inst switch, Gain, 48V, Polarity)
• All knob, mute/solo, and fader values (pans, cues, levels)
• Channel mute state
• Input stereo link state
• Loopback channel level

Not saved in Volt session file

• Input names
• Monitor level
• Clock source
• Sample rate
• Cue output settings

Session File Location

By default, session files are stored in:

• Mac: Users/[UserName]/Documents/Universal Audio/Volt Sessions/
• Windows: C:\Users\[UserName]\AppData\Roaming\Universal Audio\Volt Sessions

Session files can be stored anywhere on disk, but using the default location is recommended, because UAD Console always uses this location for the Session Browser and Open/Save dialogs presented by the computer's operating system.

Note: Session files must reside in the default location to appear in the Session Browser within UAD Console.

Session Files Suffix

Volt session files have the ".volt[model]" suffix (for example, Volt 876 session files are named [session].volt876, and Volt 4 session files are named [session].volt4). The suffix is added to session files automatically when saving to disk; however, the suffix is not displayed in the file save dialog (the suffix should not be manually typed when saving a session file).

To save and load sessions

• Click the session name at the bottom of the Monitor Column to open the Session Browser at the left of the UAD Console window.
• To load a session, click the session name.
  Note: To prevent potential external equipment damage, a warning appears if the session you are loading requires +48V phantom power to be enabled on one or more inputs. To load the session and enable +48V phantom power, you must click OK. Otherwise, click Cancel.
• To save the current session, click Save, type the name (or leave it as is), and click Save.
• To rename a selected session, click Rename, type the new name and click Rename.
• To delete a selected session, click Delete, then click Delete again.

The Session Browser

Control Room

The Control Room column can be accessed by clicking the CTRL ROOM button in the Show section of the Monitor column. The Control Room settings let you activate the Talkback mic and adjust talkback levels to the Cues, and select the source that is heard at the monitor 1–2 outputs.

1. Talkback controls (Max, Volt 876): These knobs control the talkback mic levels heard in the monitor mix and Cues 1 & 2. The mute switches prevent the talkback mic from being heard in the mix or cues.
2. Dim / Talk (Max, Volt 876): Activates the talkback mic and the Dim function. Talkback is active when the button is lit, and the monitor level is reduced to prevent feedback.
3. Source: Selects which mix bus is heard at the monitor outputs. You can choose Monitor, Cue 1, or Cue 2.

Talkback

Talkback is typically used to communicate with performers. Talkback is activated using the dedicated hardware TALK or DIM/TALK button on the Volt hardware, or the DIM / TALK button within the UAD Console Control Room strip.

Dim / Talk switch

• Continuous (latched) talkback – Press the switch once to latch or unlatch talkback. When latched (lit), the talkback mic signal is sent to the monitors and cues.
• Momentary (unlatched) talkback – Press and hold for momentary talkback. The talkback mic sends signal while the button is held and stops sending signal when the button is released.

Dimming

When talkback is active, monitor output is lowered (dimmed) by 20 dB to allow the talkback mic to better capture the voice input instead of program material from the monitor speakers.

Talkback Levels

When talkback is active (the button is latched or held), the talkback mic signal is sent to the main mix and the two Cues. You can control the level of talkback signal to the mix and each Cue with the knobs on the Control Room strip, and mute the talkback signal to the mix or Cue by pressing the mute switch.

Source

Enable a Source button to select which mix is heard at the monitor or Alt outputs. You can choose Monitor, Cue 1, or Cue 2.

• To hear the main mix, choose Monitor.
• To hear a Cue mix, choose Cue 1 or Cue 2.

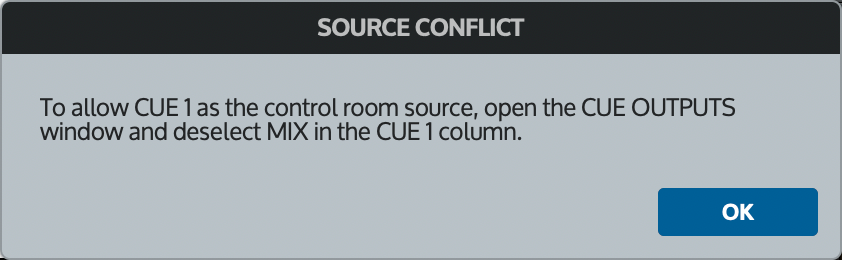

Note: If a Cue is set to Mix in the Cue Outputs window, you cannot set the monitor source to that Cue, because the main mix is the default setting. A dialog with instructions appears if you try to monitor a Cue that is set to Mix.

Cues

You can use cues to create mixes that are different from the monitor mix (the main mix). Cues are typically used for performers that want to hear a custom mix in headphones.

On models that have additional outputs (Volt 4, Volt 4 Max, Volt 4P Max, Volt 876), cue mixes or the monitor mix can also be optionally mirrored (heard) through an available output pair.

How do I hear Cues?

Cues are assigned in the Cue Outputs window, where you assign Cue mixes or the monitor mix to headphones.

By default, you hear the monitor mix in the headphones. To hear the cue mixes in the headphones, disable the MIX button (unlit) in the Cue Outputs window.

• Open the Cue Outputs window: Click CUES in the Monitor column to open the Cue outputs window.

• Observe the blue box: The blue box always indicates what is heard in your headphones.
  • If the blue box says Monitor Mix to HP, you are hearing the monitor mix in that headphone output. This is the default setting.
  • If the blue box says Cue to HP, you are hearing the Cue mix in that headphone output.


• Switch between a Cue mix and the monitor mix
  • To hear Cue 1 or Cue 2 in headphones: In a Cue column (Cue 1 or Cue 2), toggle the MIX button so it is unlit. The blue box shows the cue mix is heard in the headphones.
  • To hear the monitor mix in headphones: Toggle the MIX button so it is lit. The blue box shows the monitor mix is heard in the headphones.
• Switch headphones between Cues: You can switch the headphone output (blue HP box) from one Cue to the other, by clicking the blank column space under the Cue row.

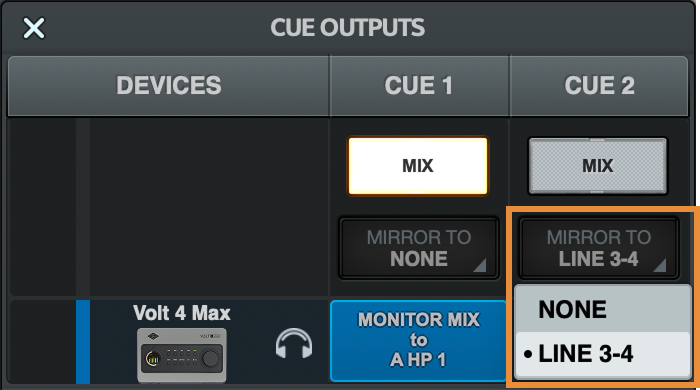

• Mirror a Cue or the main mix to a different output: Mirroring sends the same mix (monitor or cue, depending on lit/unlit switch) to an additional pair of outputs. For example, you could mirror a cue to send the mix to other gear.

  Mirroring is available on models that have additional outputs (Volt 4, Volt 4 Max, Volt 4P Max, Volt 876).
  • To mirror Cue 1 or Cue 2 to a different output pair: In a Cue column, select the output pair from the Mirror To menu. The Cue is mirrored when the MIX button is unlit.

• To mirror the monitor mix to a different output pair: In a Cue column, select the output pair from the Mirror To menu. The monitor mix is mirrored when the MIX button is lit.

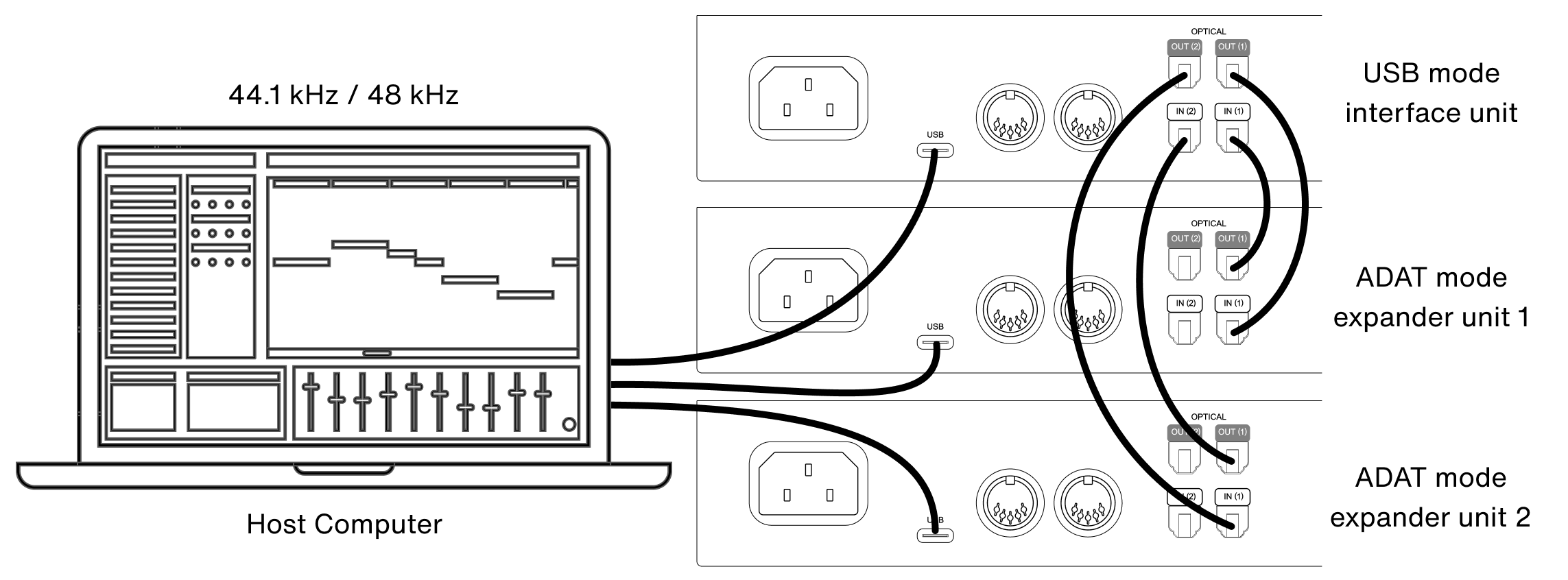

Note: In an expanded system on Volt 876, mirroring to an ADAT output pair effectively sends the cue mix to the expander unit's corresponding analog outputs. For example, routing to ADAT 3-4 on an 876 expanded system sends audio to analog outputs 3–4 on the first expander unit.

Cue adjustments

The cue mixes are adjusted using the two cue sends on each input strip and the Loopback strip. All cue sends are pre-fader and pre-mute so they are not affected by adjustments to the main monitor mix. Cue sends do include Tone/Max/Vintage/76 Comp processing on preamp inputs.

Cue examples

The following examples illustrate different ways you can send Cue mixes to headphones and other outputs with your Volt.

Hear Cue 1 in headphones

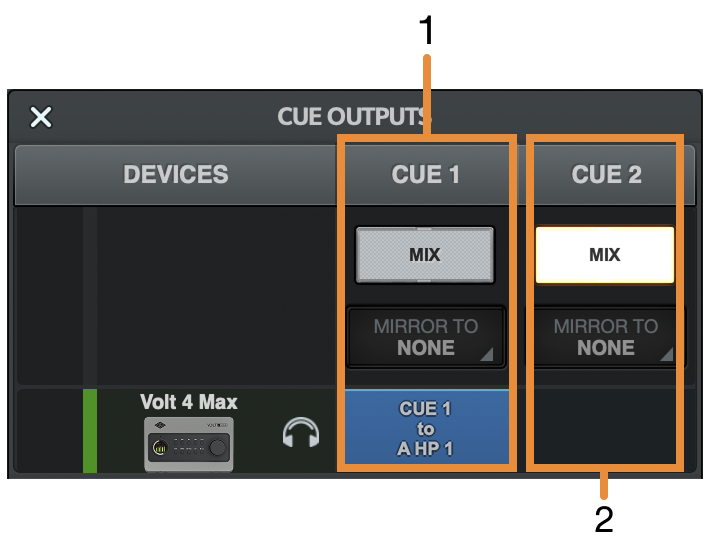

The following example shows how Cue 1 can be heard in headphones.

1. Cue mix 1 is heard in the headphones (MIX button unlit, Cue 1 to HP 1 in blue box).
2. Cue 2 is not heard because no output is assigned.

Hear Cue 1 in headphones, main mix to Line 3-4

The following example shows how Cue 1 can be heard in headphones, and the monitor mix is sent to Line 3-4. This example requires a Volt 4, Volt 4 Max, Volt 4P Max, or Volt 876.

1. Cue mix 1 is heard in the headphones (MIX button unlit, Cue 1 to HP 1 in blue box).
2. The monitor mix is sent to Line 3-4 (MIX button lit, Mirror To Line 3-4 selected).

Hear main mix in headphones, Cue 2 to Line 3-4

The following example shows how the monitor mix can be heard in headphones, and the Cue 2 mix is sent to Line out 3-4. This example requires a Volt 4, Volt 4 Max, Volt 4P Max, or Volt 876.

1. The monitor mix is heard in the headphones (MIX button lit, Monitor Mix to HP 1 in blue box).
2. The Cue 2 mix is sent to Line 3-4 (MIX button unlit, Mirror To Line 3-4 selected).

Volt 876: Hear monitor mix and Cue 2 mix in headphones, and mirror Cue 2 to Line 3-4

The following example shows how the monitor mix and the Cue 2 mix can be heard in separate headphone outputs on Volt 876, with Cue 2 mirrored to Line 5-6 outputs.

1. The monitor mix is heard in headphone output 1 (Cue 1 column MIX button lit, Monitor Mix to HP 1 in blue box).
2. The Cue 2 mix is heard in headphone output 2 (Cue 2 column MIX button unlit, Cue 2 to HP 2 in blue box). The Cue 2 mix is also sent to Line 5-6 (Mirror To Line 5-6 selected).

Cue window features

1. Devices column: Shows the Volt units that have assignable Cue mixes, and their available headphone outputs. If there are multiple Volt 876 units, each has a different letter designation (A, B, or C).
2. Cue 1 routing column: Sets the audio source and destinations for Cue 1. The blue box shows the headphone routing.
3. Cue 2 routing column: Sets the audio source and destinations for Cue 2. The blue box shows the headphone routing.
4. MIX button: When lit, the monitor mix is the source for the column's headphone and mirror outputs. When unlit, the cue mix is the source for the column's outputs.
5. Mirror To menu (Volt 4, Volt 4 Max, Volt 4P Max, Volt 876): Sends the monitor mix (MIX button lit) or cue mix (MIX button unlit) to an available output pair. Click to select an output pair from the dropdown menu.
6. Headphone assignments: The active HP signals are shown in the blue boxes. In this example, the monitor mix is heard in Headphone 1, and the Cue 2 mix is heard in Headphone 2.

Large and Small Cues

By default, cues are shown in Small view, which includes a level knob and mute switch (Cue 1 in this image). You can expand Cues to reveal the pan control for the cue, and to use a long-throw fader for more accurate level control (Cue 2 in this screenshot).

To expand a cue row, click the Large icon to the left of the row.

Adjusting Cue Levels

To adjust the level of the input sent to the cue mix, rotate the Cue knob in Small view, or adjust the fader in Large view.

In Small view:

• Drag the knob to adjust the cue send level.
• Double-click the knob to type the level in the popover.


• The send level is indicated by the lit ring around the knob, and the cue level in dB is shown while you engage the knob.
• Click the Mute button (M) to remove the input from the cue mix.

In Large view:

• Drag the fader to adjust the cue send level.
• Click the value at the bottom of the meter to type the level in the popover.


• Drag the pan control(s), or double-click to specify a value in the Pan popover.
• Click the Mute button (M) to remove the input from the cue mix.

Mode (Volt 876)

Use this dropdown menu to switch Volt 876 modes:

• USB Mode: Standard audio interface routing up to 24 analog and digital inputs on one UAD Console mixer.
• ADAT Mode: Standalone mic preamp and converter for ADAT expansion with a Volt or another audio interface.

Note: To switch modes using the Volt 876 hardware front panel, a specific procedure is required. See the Volt 876 Hardware Manual.

Active MIDI ports

On any Volt 876 that is connected via USB, the MIDI ports remain active. This includes both USB and ADAT modes, in any configuration.

Note: On macOS, Volt 876 appears as two different MIDI devices depending on whether the unit is in USB mode or ADAT mode. When configuring the device in Audio MIDI Setup, make sure to use the Volt 876 device that is currently active. To distinguish between the devices in Audio MIDI Setup, you can double-click each Volt 876 MIDI device and give it a unique name.

USB mode

In USB mode (the default setting), your Volt 876 is the main interface that routes all audio to and from your computer. USB mode is also the mode for the control unit in an ADAT expansion system.

USB mode sample rates and available ADAT I/O

44.1, 48 kHz

• Analog I/O: 8 x 8
• ADAT Digital I/O: 16 x 16

88.2, 96 kHz

• Analog I/O: 8 x 8
• ADAT Digital I/O: 8 x 8

176.4, 192 kHz

• Analog I/O: 8 x 8
• ADAT Digital I/O: 4 x 4

Volt 876 in USB interface mode in UAD Console

ADAT mode

ADAT mode has two possible states:

1. ADAT standalone mode
2. ADAT expansion mode

ADAT standalone mode

ADAT standalone mode is the default mode when you switch a Volt 876 unit to ADAT mode. In this mode:

• Volt 876 functions as a standalone mic preamp and A/D - D/A converter
• Analog inputs 1-8 are routed directly to corresponding ADAT outputs 1-8
• ADAT inputs 1-8 are routed directly to corresponding analog outputs 1-8
• Audio from the interface is not routed to the computer
• Volt 876 does not appear as a Core Audio or ASIO device
• Loopback, Control Room, and Monitor controls are unavailable

ADAT standalone mode with computer control

In ADAT standalone mode, when Volt 876 is connected to your computer via USB, the following settings can be controlled within UAD Console:

• Preamp settings
• Sample rate
• Clock source
• USB or ADAT mode

Volt 876 in ADAT standalone mode in UAD Console

ADAT expansion mode

In ADAT mode you can configure the Volt 876 as an expander unit. In this mode, the following Volt hardware can be combined:

• One Volt 4 or Volt Max and one Volt 876can be combined to provide control within UAD Console of up to 12 preamp inputs.
• Two or three Volt 876 units can be combined to provide control within UAD Console of up to 24 preamp inputs. See ADAT expansion with multiple Volt 876 interfaces for more information.

ADAT Expansion with Multiple Volt Interfaces

You can expand your Volt system to include two or three Volt interfaces, for control in UAD Console of 10–24 preamp inputs (at 44.1 kHz and 48 kHz).

Note: You can combine one Volt 4 or one Volt Max with one Volt 876. Volt 4 and Volt Max models cannot be combined.

The following expansion modes are available at 44.1 kHz and 48 kHz:

• Volt 2 Max + Volt 876 expander: 10 preamps
• Volt 4 Gen 2 + Volt 876 expander: 10 preamps & two line inputs
• Volt 4 Max + Volt 876 expander: 10 preamps & two line inputs with gain
• Volt 4P Max + Volt 876 expander: 12 preamps
• Volt 876 + Volt 876 expander: 16 preamps
• Volt 876 + two Volt 876 expanders: 24 preamps

Expanding with multiple Volt 876 units

For Volt 876 expansion, one Volt 876 is set in USB mode as the interface unit, and one or two other Volt 876 units are connected and set in ADAT mode as expander units. Each Volt 876 must be connected separately to the host computer via USB. You can then control all analog preamp settings for the ADAT expander units within UAD Console, and all audio from the expander units is available in the UAD console monitor and cue mixes.

Expanding with Volt Gen 2 or Max and one Volt 876 units

For Volt Gen 2 or Volt Max expansion, one Volt 876 is connected and set to ADAT mode as the expander device.

Both Volts must be connected to the host computer via USB (the Volt 876 can be connected to the HUB port on the Volt 4 or Max). You can then control all analog preamp settings for the ADAT expander unit within UAD Console, and all audio from the expander unit is available in the UAD console monitor and cue mixes.

Important ADAT expansion notes

• To prevent feedback, before you switch a device between USB mode and ADAT mode, make sure all microphones are muted.
• ADAT expansion requires two or more Volt units connected to your computer* via USB, and to each other via TOSLINK optical cables.
• ADAT expansion mode requires the UAD Console app — it cannot be configured using Volt hardware buttons.
• When using more than one Volt 876, configure only one 876 unit to be in USB mode. (Volt Gen 2 and Max do not have a Mode setting, and are always the USB I/O units.)
• When expanding a Volt 4 or Volt Max model, the Volt 4 or Max and Volt 876 must be connected via USB to the computer* and to each other (Volt 876 Optical Out 1 - Volt 4 or Max Optical In).
• Due to S/MUX format constraints, available preamp channels are reduced at sample rates higher than 48 kHz.

*Tip: With a Volt Gen 2 or Max, the Volt 876 unit can be connected to the Volt 4 or Volt Max device's Hub USB port.

ADAT Expansion and sample rates (Volt 876 units only)

For sample rates higher than 48 kHz, the maximum number of expander channels is eight, and only one expander unit is supported.

44.1 kHz / 48 kHz

• Available preamp channels: Eight (one expander unit), 16 (two expander units)
• Expander units: One or two

88.2 kHz / 96 kHz

• Available preamp channels: Eight
• Expander units: One

176.4 kHz / 192 kHz

• Available preamp channels: Four
• Expander units: One

ADAT Expansion and sample rates (Volt 4 or Volt Max with a Volt 876)

Note: Only one Volt 876 expander unit is supported with Volt 4 or Volt Max.

44.1 kHz / 48 kHz

• Available expanded preamp channels: Eight

88.2 kHz / 96 kHz

• Available expanded preamp channels: Four

176.4 kHz / 192 kHz

• Available expander preamp channels:Two

Connecting multiple Volt 876 units for ADAT expansion

You can connect two or three Volt 876 units.

Cabling three Volt 876 units for ADAT expansion (44.1 kHz / 48 kHz)

1. Power off all Volt 876 hardware units.
2. Connect the ADAT expander units to the USB mode interface unit via optical cables, as shown in the image and list below.
3. Connect the USB interface unit and ADAT mode expander units to the computer via USB. You can use a USB hub to make these connections.
4. After making the connections, power on the Volt 876 hardware units.

Optical & USB Connections for Volt 876 ADAT expansion

ADAT mode expander unit 1

• Expander Optical Out 1 to USB interface Optical In 1
• USB interface Optical Out 1 to Expander Optical In 1

ADAT mode expander unit 2

• Expander Optical Out 1 to USB interface Optical In 2
• USB interface Optical Out 2 to Expander Optical In 1

Cabling two Volt 876 units for ADAT expansion (88.2 kHz – 192 kHz)

1. Power off all Volt 876 hardware units.
2. Connect the ADAT expander unit to the USB mode interface unit via optical cables, as shown in the image and list below.
3. Connect the USB interface unit and ADAT mode expander unit to the computer via USB. You can use a USB hub to make these connections.
4. After making the connections, power on the Volt 876 hardware units.

Optical & USB Connections for Volt 876 ADAT expansion (88.2 kHz – 192 kHz)

ADAT mode expander unit to USB interface

• Expander Optical Out 1 to USB interface Optical In 1
• Expander Optical Out 2 to USB interface Optical In 2

USB mode interface to expander

• USB interface Optical Out 1 to Expander Optical In 1
• USB interface Optical Out 2 to Expander Optical In 2

Cabling Volt Gen 2 or Max with a Volt 876 for ADAT Expansion

Only one optical connection is possible between a Volt 876 and Volt 4 or Volt Max device.

1. Connect the Volt 4 or Volt Max unit's HOST port to your computer via USB.
2. Connect the Volt 876 USB port to your computer, or to the HUB port on the Volt 4 or Volt Max.
3. Connect Optical Out 1 from the Volt 876 the Optical In port on the Volt 4 or Volt Max.

Configuring UAD Console for ADAT expansion with Volt 876 units

1. Open UAD Console.
2. Open UAD Console settings by clicking Settings in the Monitor column of the UAD Console window (right side), or choosing UAD Console > Settings from the UAD Console menus.
3. From the Devices column, click the Volt 876 unit that you want to set as an ADAT expander unit, then select ADAT from its Mode menu. Repeat for the third unit (if applicable).
4. From the Devices column, click the Volt 876 unit that is set to USB mode. This is the USB interface device that carries all computer audio I/O.
5. From the ADAT 1-8 menu select the ADAT expander unit connected to Optical in 1 and optical out 1 on the USB mode unit (Volt 876). This becomes ADAT expander unit 1.
   • At 44.1 and 48 kHz, the menu label is ADAT 1-8 and ADAT 9-16
   • At 88.2 and 96 kHz, the menu label is ADAT 1-4, and only one expander unit can be selected
   • At 176.4 and 192 kHz, the menu label is ADAT 1-2, and only one expander unit can be selected


6. If using three Volt 876 units, from the ADAT 9-16 menu, select the second ADAT mode expander unit.
7. Set the Volt 876 unit clock sources.

Configuring UAD Console for ADAT expansion with Volt Gen 2 or Volt Max and one Volt 876 unit

1. Open UAD Console.
2. Open UAD Console settings by clicking Settings in the Monitor column of the UAD Console window (right side), or choosing UAD Console > Settings from the UAD Console menus.
3. From the Devices list, select the Volt 876 unit, and select ADAT from its Mode menu.
4. From the Devices list, select the Volt 4 or Volt Max unit. This is the USB interface device that carries all computer audio I/O.
5. From the ADAT menu, select the Volt 876 expander unit connected to the Volt 4 or Volt Max optical input. Note that the ADAT menu label changes depending on the current sample rate:
   • At 44.1 and 48 kHz, the menu label is ADAT 1-8
   • At 88.2 and 96 kHz, the menu label is ADAT 1-4
   • At 176.4 and 192 kHz, the menu label is ADAT 1-2



6. Set the Volt 876 clock source to Internal, and the Volt 4 or Volt Max clock source to ADAT.

UAD Console with Volt 876 ADAT expansion

After configuring Volt 876 ADAT expansion with one or two additional Volt 876 units, the preamps from the ADAT expander units appear in UAD Console. These preamp inputs are adjustable from UAD Console or from the Volt hardware, in addition to the inputs on the main interface unit. All audio from the main interface unit and the ADAT expander units is available in UAD Console.

Note: Stereo linking of ADAT inputs on ADAT mode units is unavailable.

UAD Console with one Volt 876 showing 16 inputs (no expander unit)

UAD Console with Volt 876 and one Volt 876 ADAT expander unit, showing 16 preamp inputs

UAD Console with Volt 2 Max and one Volt 876 ADAT expander unit, showing 10 preamp inputs

UAD Console for Volt Settings

Global Volt parameters are configured in the UAD Console Settings window. Available settings depend on the connected Volt model(s). To access settings in UAD Console for Volt:

1. Click Settings in the Monitor column at the right side of the UAD Console window, or
2. Choose UAD Console > Settings from the UAD Console menus.

1. Device Type: Select the interface family (Apollo or Volt). This option is visible only if Apollo software is installed.
2. Device Name: Rename your Volt by clicking the field, typing a name, then pressing Enter.
3. Identify: Press this button to identify the unit when multiple units are connected. This flashes all lights on the front of the hardware.
4. Mode (876): Switch a Volt 876 unit between USB interface and ADAT modes here.
5. Sample Rate: Set the sample rate for audio conversion.
6. Clock Source: Set the digital clock source for the hardware.
7. Digital Input (Volt 4, Max, 876): Choose ADAT or S/PDIF, depending on the TOSLINK digital input format you want to use.
8. ADAT 1 (Volt 4, Max, 876): When combining two Volt units including a Volt 876 ADAT expander, select the ADAT expander unit here. The expander unit must be set to ADAT mode.
9. ADAT 2 (876): When combining three Volt 876 units, select the second ADAT expander unit here. The second expander unit must be set to ADAT mode.
10. Digital Output (876): Choose ADAT or S/PDIF, depending on the TOSLINK digital output format you want to use.
11. Alt Monitors (Volt 4 Max, Volt 4P Max, 876): Enable the ALT monitoring feature on analog outputs 3–4. Note that this is the same as enabling the ALT function using the hardware (if available).
12. Clip Protection (Gen 2, Max): Enable clip protection to prevent digital clipping on preamp inputs.
13. Display Brightness (Gen 2, Max): Set the display brightness level (High, Medium, or Low) for the Smart Display.

v260930
