Volt 876 can be combined with one Volt 4 Gen 2, Volt 2 Max,Volt 4 Max or Volt 4P Max using digital ADAT I/O and up to three Volt 876 units can be combined as well.
Volt 4 and Volt Max models cannot be combined and first generation Volts also cannot be combined.
See the UAD Console for Volt Manual for more configuration information.

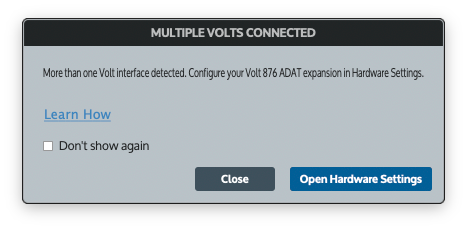

If compatible Volts are connected but settings are incorrect, you will be prompted with the following dialog:
When you click the Open Hardware Settings button, the UAD Console Settings window opens, showing the compatible connected devices.
For instructions on how to configure your Volt interfaces for ADAT expansion, see the UAD Console for Volt Manual.
Notes on other Volt configurations:
- Combining more than one Volt desktop interface is not supported.
- First generation Volts cannot be combined with Volt Gen 2, Volt Max, or Volt 876.
- Combining Volts as an aggregate device is not supported.
- Volt interfaces with ADAT can connect to other ADAT devices, but third party devices will not display their controls in UAD Console.
- Volt 876 can be combined with Apollo interfaces that have ADAT inputs.
- First generation Volts cannot be combined with Apollo.
- First generation Volts are not recognized by UAD Console.
