UAFX Dream '65 Reverb Amplifier Manual

Updated January 22, 2024 23:19

This article contains complete operating instructions for the UAFX Dream '65 Reverb Amplifier pedal.

Dream '65 Quick Start
Dream '65 Overview
Dream '65 Power
Dream '65 Connections
Dream '65 Operation
Dream '65 Controls
Dream '65 Footswitch Modes
Dream '65 Speaker Cabinets
Dream '65 Mods
Dream '65 Settings in the UAFX Control App
Dream '65 Specifications
Dream '65 Safety

A Letter From Bill Putnam, Jr.

Congratulations on your new UAFX pedal. We know that buying any new piece of gear requires an investment of time and money, and we aim to make your investment pay off!

At UA, we are dedicated to the idea of building "instant classics" — the type of music and audio gear that delivers album-worthy sounds to inspire you for decades.

UAFX pedals represent more than 20 years of research into vintage analog effects, coupled with next-generation digital engineering and rock-solid reliability.

Please let us know how we're doing. Feel free to reach out to us via our website www.uaudio.com, and via our social media channels.

Thank you for your support, and enjoy your sonic exploration!

Sincerely,

Bill Putnam Jr.

Dream '65 Quick Start

Download Dream '65 Quick Start

Dream '65 Overview

Get the classic American tube amp sounds that shaped music.

The UAFX Dream '65 Reverb Amplifier pedal gives you the essential American tube amp used by artists and producers for 60 years, from Muddy Waters to The Beatles to Elvis Costello.

Built on powerful dual-engine processing and UAD audio modeling expertise, the Dream '65 effects pedal delivers bold cleans, sweet breakup, and divine spring reverb and vibrato.

Now You Can

Get the most authentic emulation of a mid-'60s American tube combo ever placed in a stompbox
Immerse yourself in classic tube-powered spring reverb and vibrato effects
Take world-class studio amp sound anywhere, complete with legendary mic/speaker pairings, boosts, and amp mods
Download artist tones, customize features, explore presets, and more with UAFX mobile app

Experience Legit Tube Amp Tones, Stage and Studio

Whether it's replacing your amp rig and going direct to front-of-house on stage, or recording tracks into your DAW — Dream '65 gives you the inspiring, album-ready tones of an expertly miked "golden unit" tube amp, within seconds.

Lose Yourself in Authentic Spring Reverb & Vibrato

Dream '65 is the only amp-in-a-box pedal that faithfully captures the immersive sound of real tube-powered spring reverb and vibrato, making this pedal perfect for soul to surf, funk to punk, blues to bebop.

Get the Sound of a Modded Studio Amp

Take your vintage tone a step further with custom mods and legendary drive sounds made famous by artists like Stevie Ray Vaughan and Steve Lukather. With two iconic mods and a clean boost built-in, Dream '65 lays down sounds that put whiz-bang amp modelers under the bunk bed.

Get the '60s American Tube Tones You've Always Wanted

With custom mic and speaker pairings derived from our award-winning OX Amp Top Box, Dream '65 gives you inspiring, album-ready studio tones at the flip of a switch.

Key Features

Powerful UAFX dual-engine delivers the most authentic mid-'60s American tube combo sound ever placed into a stompbox
Authentic spring reverb and vibrato modeled from a "golden unit" amp heard on more than 100 classic records
Includes the world's best speaker cabinet, mic, and room tones derived from the award-winning OX Amp Top Box
Features "hot rod" amp and speaker mods, plus free additional downloadable speaker cabinets and mics upon registration
Bypass cabinet/mic emulations and use in front of your amp for added tonal flavor and overdrive sounds
UAFX mobile app lets you customize footswitches, recall and archive your presets, unlock additional features, download artist presets, and more
Timeless UA design and craftsmanship, built to last decades

UAFX Control and UA Connect software

UA Connect and UAFX Control are the companion software and mobile apps for your UAFX pedal.

UA Connect Software – UA Connect is for firmware updates and pedal registration.

UAFX Control Mobile App –The UAFX Control mobile app is for preset management, getting free bonus effects and speaker cabinets, global settings such as footswitch modes, and registration.

Free Bonus Speaker Cabinets

Register your pedal with UA Connect or UAFX Control to get three bonus speaker cabinets for more great tone options. To get UA Connect and UAFX Control, visit:

uaudio.com/uafx/start

Dream '65 Power

To learn how to power your UAFX pedal, go here.

Dream '65 Connections

To learn how to wire your UAFX pedals, go here.

Dream '65 Operation

Live Mode and Preset Mode

Dream '65 is set up in Live | Preset mode by default. You can use the UAFX Control mobile app to change footswitch assignments.

In Live mode, the sound reflects the current positions of the knobs, switches, and LEDs on the pedal, and the left footswitch toggles the Live mode sound on/off.

In Preset mode, you hear the settings that are stored as a preset, and the current positions of the knobs and switches do not reflect the sound. Instead, all knob and switch positions are internally set to their stored positions, and the right footswitch toggles the preset sound on/off.

You can store a preset you've created with your own settings by holding down the ALT/AMP/STORE switch until the green PRESET footswitch LED blinks rapidly (about 0.5 seconds)..

Live Mode

To enter Live mode, press the left footswitch. Press the left footswitch again to toggle the effect on/off. The left footswitch LED is lit red when the Live mode effect is on.

Preset Mode

To enter Preset mode, press the right footswitch. Press the right footswitch again to toggle the preset on/off. The right footswitch LED is lit green when the preset is on.

Note: The left and right footswitch functions can be changed in the UAFX Control mobile app.

Stored Preset

You can store a preset on your UAFX pedal, and recall it using the right footswitch. All presets you store, and other artist and factory presets, are available in the UAFX Control mobile app.

When you store a preset while in Live mode, the position of all knobs and switches on the pedal are saved. The preset also stores ALT knob positions, such as the alternate settings for the vibrato circuit. When you make a great sound in Live mode, storing it is as easy as holding down the ALT/AMP/STORE switch until the green PRESET footswitch LED blinks rapidly (about 0.5 seconds).

When you store a preset while in Preset mode, only those knobs and switches that have changed since you loaded the preset are saved. So, when saving in Preset mode, what you hear is what is saved, and not the current positions of the knobs and switches.

To store your sound as a preset

Set your sound as you want it stored in the preset.
Press and hold the ALT/AMP/STORE switch in the down position until the green PRESET footswitch LED blinks rapidly (about 0.5 seconds).

Preset Notes

The settings for Preset mode and Live mode are completely independent.
When you move a knob or switch in Preset mode, the settings for the sound immediately jump to the new knob or switch position.
You can view and audition all of your pedal's presets with the UAFX Control mobile app.
Presets can only be stored when the pedal is not bypassed.

Dream '65 Controls

The following controls are available on Dream '65.

Volume

Adjusts the amp's gain. As you increase volume, the character of the amp changes, becoming more overdriven and compressed. When the volume knob is set at the minimum, you will still hear the amp. The minimum level has been adjusted to provide the lowest amount of usable volume that the original hardware can provide. As you turn the volume knob up, the output volume is automatically adjusted to compensate.

Note: This is the volume control on the original amp. For clean "post-amp" volume adjustments, use the Output control.

Reverb

Adjusts the amount of the amp's tube-driven spring reverb. When the amp is clean, the reverb is more noticeable. As volume and boost are increased, the reverb appears to be less loud, as the amp compresses and saturates. This is the same way the reverb works with the original tube amp.

Note: There are no reverb trails when the pedal is bypassed.

Output

Adjusts the output level from the pedal. When the Output volume is set at noon (running direct or into other pedals), it will be roughly the same level as your bypassed volume.

Output volume allows you to set the level for your setup. This control is not available on the original amplifier.

Bass

Adjusts the low frequency response of the amp's tone stack.

Treble / Speed

Adjusts two different settings, depending on the position of the Alt / Amp / Store switch.

AMP mode: Adjusts the high frequency response of the amp's tone stack.
ALT mode: Adjusts the amp's vibrato speed.

Note: As with the original amp modification, vibrato speed is unavailable when Mod is set to D-TEX and Boost is not set to OFF. When Boost is not off, the speaker LED blinks rapidly when Speed is rotated, indicating the knob has no effect.

Boost / Intensity

Adjusts two different settings, depending on the position of the Alt / Amp / Store switch.

AMP mode: Adjusts the amount of boost applied to the amp circuitry. See Dream '65 Mods for details about the available boost types.
ALT mode: Adjusts the amp's vibrato intensity.

Notes:

When the Boost knob is set to OFF, no boost is applied.
As with the original amp modification, vibrato intensity is unavailable when Mod is set to D-TEX and Boost is not set to OFF. When Boost is not off, the speaker LED blinks rapidly when Intensity is rotated, indicating the knob has no effect.

Speaker

Push this switch up or down to change the speaker cabinet and microphone. When you push the switch repeatedly in the same direction, the pedal cycles through all available speaker cabinets.

Tip: Register your pedal to get free bonus speaker cabinets.

Speaker Type LED

The currently selected speaker cabinet is indicated by this LED. A red LED indicates that the effect printed on the pedal is selected. A bonus speaker cabinet is selected when an LED is green (the bonus speaker cabinets don't have labels).

When the LED is off, the amp is active but no speaker cabinet simulation is applied.

Tip: When playing through a real guitar amplifier and speaker cabinet, you might want to bypass the speaker cabinet emulation by pressing the pedal's Speaker switch until its LED is unlit.

Alt / Amp / Store

In AMP mode, the standard knob controls are available for the amp.

In ALT mode, vibrato speed and intensity controls are available on the treble and boost knobs.

To store a preset, press and hold the ALT/AMP/STORE switch in the down position until the green PRESET footswitch LED blinks rapidly (about 0.5 seconds).

Mod

Dream '65 includes three boost types: two amp modifications (changes to the amp's circuitry) and a clean boost. These hardware modifications, which are commonly performed on the original amp, change the amp's character and the amount of available gain.

Use the mod switch to select the Mod variation, and the Boost knob to add gain from these mods. See Dream '65 Mods for more details about the mods.

STOCK is the stock amp circuit, and the Boost knob increases clean boost to the amp's input.
LEAD adds a prized 80's "OD special" mod to the amp, and the Boost knob increases the amount of gain.
D-TEX adds an SRV mod to the amp for Texas blues tones, and the Boost knob increases the amount of gain. As with the original mod, vibrato is available only when the Boost knob is set to OFF. Note that with this mod, the effect of the bass and treble knobs is reduced as you increase the Boost knob.

Left Switch LED

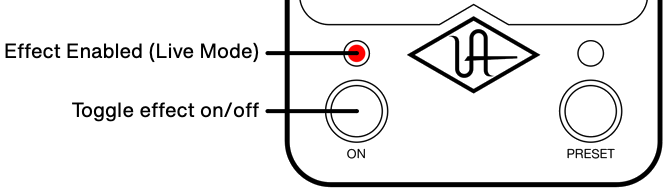

By default, the left footswitch LED is lit red when Live mode knob and switch settings are active.

Other states for the left footswitch LED are detailed in Footswitch Modes.

Left Footswitch

By default, press to toggle the Live mode sound on/off with the current knob and switch settings.

This footswitch can also toggle other options, depending on the pedal footswitch mode, as detailed in Footswitch Modes.

Right Footswitch LED

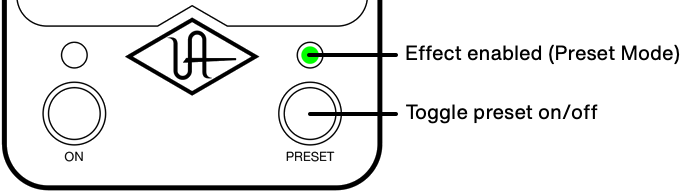

The right footswitch LED is lit green when stored settings are active. There are other modes for the right footswitch LED, as detailed in Footswitch Modes.

Right Footswitch

By default, press to toggle the Preset sound on/off.

This footswitch can also toggle other options, depending on the pedal footswitch mode, as detailed in the table below.

Dream '65 Footswitch Modes

With the UAFX Control mobile app, you can change the operation of your pedal and your pedal's footswitches for your amplifier setup and performance preferences. For example, if you use Dream '65 as your main amplifier, and you don't need to bypass your pedal, you can use footswitch modes to toggle boost and vibrato, reverb and vibrato, or reverb and boost on and off.

For details about footswitch modes and how to enable them, see the UAFX Control Mobile App Manual.

Mode	Left Footswitch	Right Footswitch
Live \| Preset	Live mode on/off	Preset on/off
Boost \| Live / Preset	Boost on/off	Live mode / Preset toggle
Vibrato \| Live/Preset	Vibrato on/off	Live mode / Preset toggle
Boost \| Vibrato	Boost on/off	Vibrato on/off
Reverb \| Live/Preset	Reverb on/off	Live mode / Preset toggle
Reverb \| Vibrato	Reverb on/off	Vibrato on/off
Reverb \| Boost	Reverb on/off	Boost on/off
4-cable mode	Live mode on/off *If Live and Preset are off, you hear your amp's sound.	Preset on/off (amp on) *If Live and Preset are off, you hear your amp's sound.

Dream '65 Speaker Cabinets

Each speaker, cabinet, and mic setting has a unique sound. Toggle up or down through the list with the Speaker switch. When you register your pedal with UAFX Control software, you get three free bonus speaker cabinets (green LEDs).

Note: The speaker cabinet labels on the pedal apply only when the speaker LED is red. When the speaker LED is green, the active speaker name is visible in the UAFX Control mobile app.

Switch Label	LED Color	Active Speaker	Speaker/ Cab/Mic*	Notes
GB25	Red	GB25	A Vintage Celestion Greenback speaker in a blackface deluxe amp, mic'd with an M160 ribbon mic	Classic Celestion bark with the smooth open midrange of a '60s ribbon mic
OXFORD	Red	Oxford	An original Oxford 12K5-6 speaker in a blackface deluxe amp, mic'd with a 57	The classic sound right off the shelf from 1965
EV12	Red	EV12	A classic 12", 200 watt Electro-Voice EVM12L with a massive magnet in a blackface deluxe amp, mic'd with a 414 condenser mic	Thick and tight bottom end with airy top end
GB25	Green	Boutique D65	A boutique Two-Rock 2x12 extension cab with Celestion G12-65s, mic'd with a 57 and a 121 ribbon	Classic California ported combo cabinet sound, great for mildly overdriven sounds and cleans up well
OXFORD	Green	S-Verb	Vintage 1966 4x10 Fender Super Reverb cab with original CTS speakers, mic'd with a 414 condenser mic	Plenty of midrange, great for surf sounds, almost lo-fi
EV12	Green	JBF120	Vintage 1968 2x12 Fender Twin Reverb cab w/ original JBL D-120F speakers, mic'd with a 57 and a 121 ribbon mic	Very detailed speaker, great for clean and low gain, excellent for fingerstyle playing. Very forward and sizzly when used with more gain
None	Off	External	No emulated cabinet	Select this mode when using a real guitar cabinet or external cabinet emulation

* Product names used herein are trademarks of their respective owners, which are in no way affiliated with Universal Audio Inc. These name(s) are used solely to identify products studied in the creation of the sound models found in Dream '65 Reverb Amplifier.

Dream '65 Mods

Dream '65 amp modifications are modeled from hardware customizations that are commonly performed on the original amplifier. Each Mod has a unique sound and effect. To increase the amount of gain and the effect of the mod, rotate the Boost knob clockwise. When the boost knob is turned all the way down to OFF, the mod is disabled and has no effect on amp color or gain.

Mod	Description	Notes
Lead	Removes the bright cap when the knob is above OFF, so at lower boost knob settings, the amp sounds warmer. As you increase the boost knob up to the 10 o'clock position or so, the mod adds some midrange from the tone stack lift (called "lead boost").	As you increase the gain past noon, the gain increases, and power amp output is compensated to prevent "mushiness".
Stock	In stock mode, the Boost knob adds clean gain. The amp tone remains the same, but you can add up to 10 dB of gain to the front of the amp.	Use this setting for the cleanest tones.
D-Tex	This is known as the SRV mod. As with the original mod, Vibrato is available only when the Boost knob is set to OFF. Provides more midrange and significantly more gain from the preamp stages. In the original hardware, this increases the amount of current to the other tubes.	At low settings, just adds a little "more." Use this mod on a low Boost knob setting for SRV-style soft compression and a more open midrange. As you turn the Boost knob up, this mod reduces the effect of the tone stack, creating a more vocal and open midrange. Bass and Treble knobs have less effect at lower boost values. At the maximum setting, the Bass and Treble knobs have no effect.

Dream '65 Tone Shortcuts

Set the Speaker and Mod switches in the same positions for three classic amp and speaker cabinet pairings.

GB25 + Lead - Pairing favored by studio guitarists in the '80s and '90s.
Oxford + Stock - Stock factory pairing for the amplifier.
EV12 + D-Tex - SRV-style Texas blues amp and speaker cabinet pairing.

Factory and Artist presets offer many more great-sounding speaker cabinet and channel pairings. Use the UAFX Control mobile app to access presets.

Dream '65 Settings in the UAFX Control App

With the UAFX Control app, you can change the operation of your pedal and your pedal's footswitches for your amplifier setup and performance preferences.

Tap Settings at the bottom right of the screen to access the settings for a pedal. You may need to scroll down on this screen to see all available settings.

Dream '65 bonus speaker cabinets

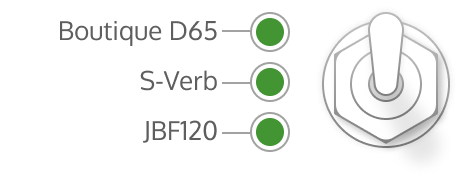

After registration, the Boutique D65, S-Verb, and JBF120 speaker cabinets are added to the pedal. To select these speaker cabinets, push the Effect Type switch until the top, middle, or bottom LED is lit green.

Dream '65 footswitch modes

Footswitch modes can be changed to suit your preferences. Using the UAFX Control app, you can configure the switches to toggle live mode and preset mode, toggle your amp's preamp and the pedal's preamp in 4-cable mode, and toggle boost, vibrato, or reverb features in almost any combination.

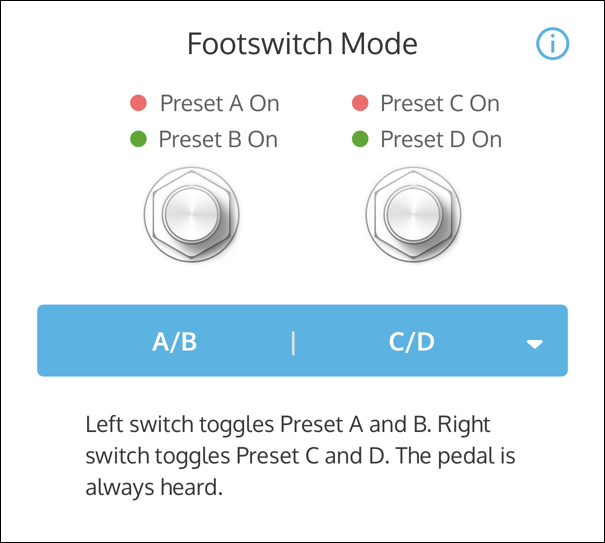

Choosing a footswitch mode

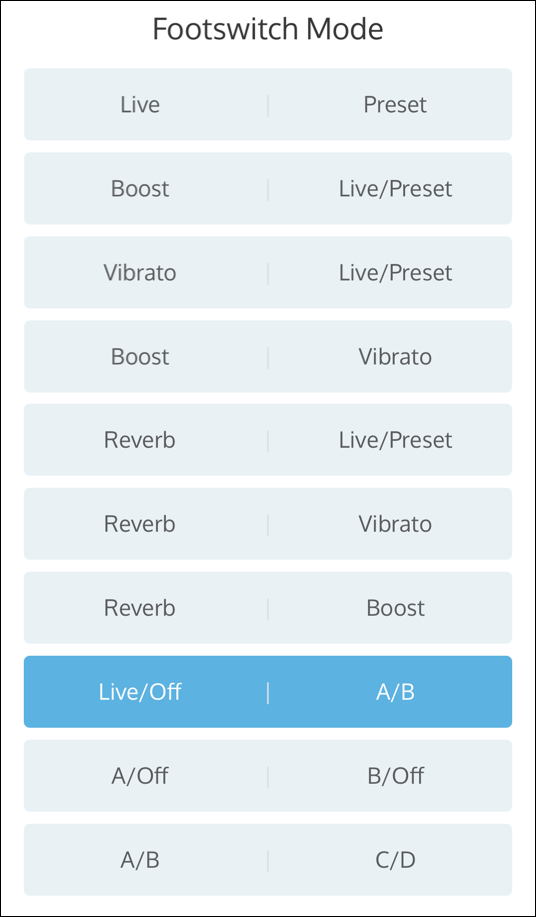

To select a footswitch mode, open the Settings screen. Then tap the current footswitch mode (colored bar) and choose a mode from the drop menu.

Note: See Assigning the preset or live sound for information about how to set the pedal sound when you use a footswitch mode that cannot be bypassed.

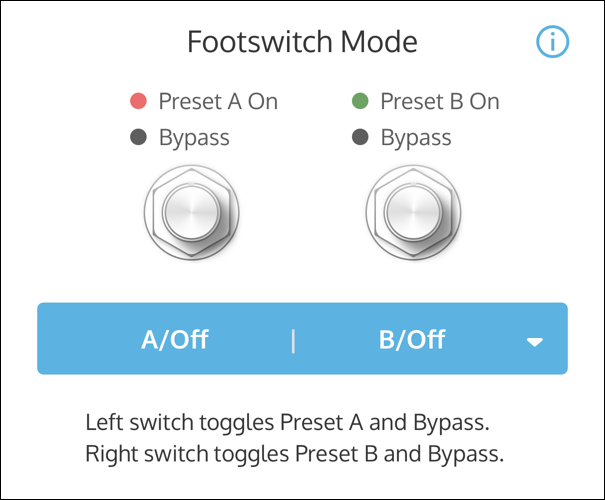

The following Dream '65 footswitch modes can be selected with the UAFX Control app.

Live | Preset

In Live | Preset mode, you can access Live mode (knobs and switches) and the stored preset.

Left Footswitch toggles the Live sound on/off
Right Footswitch toggles the stored Preset on/off
Pedal can be bypassed
4-cable mode is available

Boost | Live/Preset

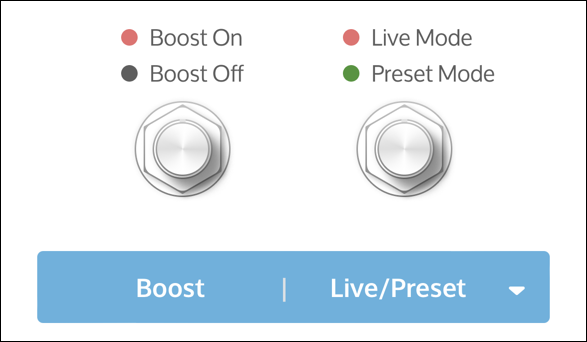

In Boost | Live/Preset mode, you can switch Boost on and off, and toggle between Live mode (knobs and switches) and the stored preset.

Left Footswitch toggles Boost on/off
Right Footswitch toggles between Live mode (red LED) and the stored preset (green LED)
Pedal is always on and cannot be bypassed
4-cable mode is not available

Vibrato | Live/Preset

Left Footswitch toggles Vibrato on/off
Right Footswitch toggles between Live mode (red LED) and the stored preset (green LED)
Pedal is always on and cannot be bypassed
4-cable mode is not available
As with the original mod, vibrato is enabled only when D-Tex boost is Off

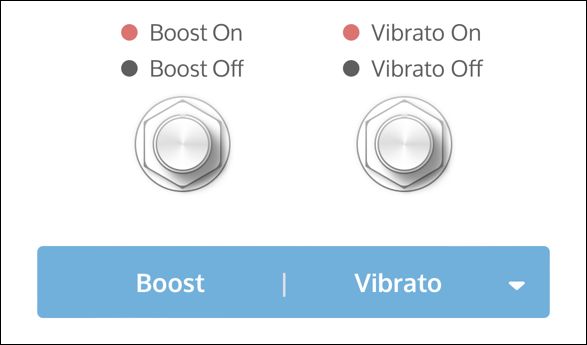

Boost | Vibrato

Left Footswitch toggles Boost on/off
Right Footswitch toggles Vibrato on/off
Sound is Live mode (knobs and switches) or preset mode, selected separately
Pedal is always on and cannot be bypassed
As with the original mod, vibrato is enabled only when D-Tex boost is Off

Reverb | Live/Preset

Left Footswitch toggles Reverb on/off
Right Footswitch toggles between Live mode (red LED) and the stored preset (green LED)
Pedal is always on and cannot be bypassed

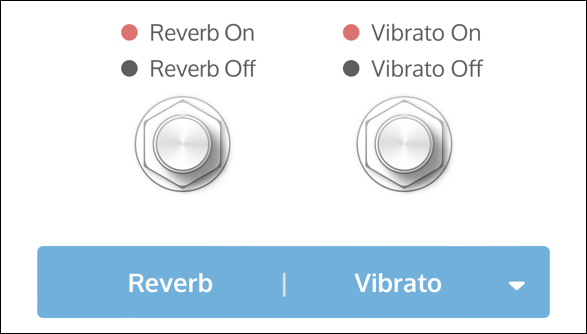

Reverb | Vibrato

Left Footswitch toggles Reverb on/off
Right Footswitch toggles Vibrato on/off
Sound is Live mode (knobs and switches) or preset mode, selected separately
Pedal is always on and cannot be bypassed
As with the original mod, vibrato is enabled only when D-Tex boost is Off

Reverb | Boost

Left Footswitch toggles Reverb on/off
Right Footswitch toggles Boost on/off
Sound is Live mode (knobs and switches) or preset mode, selected separately
Pedal is always on and cannot be bypassed

Dream 4-cable mode

4-cable mode lets you add another switchable channel to any real guitar amplifier that has an effects loop. This special mode lets you switch between your guitar amplifier's built-in preamp section and the sounds in your pedal.

Warning: Turn off your amplifier before wiring the pedal and enabling 4-cable mode. If you enable 4-cable mode with incorrect wiring, you can cause extreme feedback.

To learn how to set up and operate 4-cable mode, go here.

Dream '65 Specifications

Power requirements (power supply sold separately)	Isolated 9VDC, center-negative, 400mA minimum
Inputs	2 x ¼" unbalanced TS (input 2 for stereo connections and 4-cable mode)
Outputs	2 x ¼" unbalanced TS (output 2 for stereo connections and 4-cable mode)
Input impedance	500 Kilohms (Mono In) 1 Megohms (Stereo In)
Output impedance	500 Ohms
Maximum input level	12.2 dBu
Maximum output level	12.1 dBu
Frequency response	20 Hz to 20 kHz, ±1 dB
USB Type-C	For registration and firmware updates via computer
Wireless technology Transmitted Frequency Range Maximum Output Power	Bluetooth v5 2.400 GHz – 2.4835 GHz +4.35 dBm
Dimensions (with knobs and protrusions)	Height: 2.56 inches, 6.5 cm Width: 3.62 inches, 9.2 cm Depth: 5.55 inches, 14.1 cm
Weight (unboxed)	1.24 lbs 0.567 kg

Note: All specifications are subject to change without notice.

Dream '65 Safety

Caution: To help maintain the safety of your product, the chosen power supply must be a certified power supply complying with Limited Power Source (LPS) requirements with the following characteristics and electrical ratings: Isolated 9VDC, center-negative, 400 mA minimum, 2.1x5.5 mm barrel connector. Additional details at help.uaudio.com.

Before using this unit, be sure to carefully read the applicable items of these operating instructions and the safety suggestions. Afterwards, keep them handy for future reference. Take special care to follow the warnings indicated on the unit, as well as in the operating instructions.

Read the instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Only use with attachments/accessories specified by the manufacturer.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Dream '65 does not contain a fuse or any other user-replaceable parts.
A compliance marking label is provided on bottom of the unit.

United States Class B Manual Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Japanese Class B Manual Statement

この装置は、クラスＢ機器です。この装置は、住宅環境で使用することを目的としています

が、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こ

すことがあります。取扱説明書に従って正しい取り扱いをして下さい。VCCI-B

This is Class B equipment. Although this equipment is intended for use in residential environments, it could cause poor reception if used near a radio television receiver. Please follow instructions in the instruction manual.

Korea KCC: 해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다.

License exempt. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Used electrical and electronic equipment should not be mixed with general household waste. Please dispose in accordance with local regulations.

IEC 62368-1
FCC ID: 2AXKQ2029
IC ID: 26610-2029

Hereby, Universal Audio, Inc. declares that the radio equipment type Bluetooth LE Device (Residential) is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: Signed EU Declaration of Conformity.pdf
