macOS 10.14 Mojave Compatibility Info



Note: If using a different version of macOS, see the Latest OS Compatibility article.

  • With UAD-2 and Apollo hardware, UAD software v9.8 through v10.1.1 is tested and compatible with macOS Mojave.
  • LUNA Recording System v1.0 through v1.2.13 is tested and compatible with macOS Mojave.
  • Spark and UADx plug-ins are incompatible with macOS Mojave. See this article for details.

How to allow UAD software:

With Mojave, OS system security requires the four manual steps below to enable UAD software. All configuration details for each of these steps are provided in this article.

1. Allow Access Control

Mojave presents two access control dialogs during the UAD installation process. The first dialog appears during software installation, and the second dialog appears after restarting.

Simply click “OK” in both of these dialogs to allow UAD software installation:

-iSUbcvrRLFY3GdgWbLNP8x5qvs0M1kisgrb2Ai1yM7WQcWgu9L8aoNd7Z2u26bNUx2-SdztRYwHeL-PRUJ6jF-jXUsYkqGlrYsMsrHdcapdu3eaiJFbhWQx_11P.png

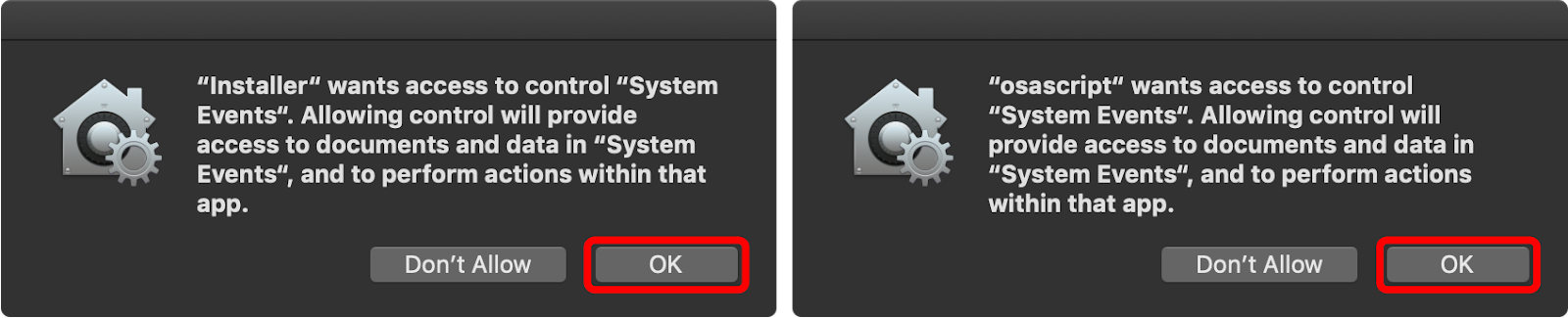

Click OK in access control dialogs presented during UAD installation (left) and after restart (right)

IMPORTANT: If “Don’t Allow” is clicked in either of these dialogs, UAD software installation will be incomplete. If this occurs, follow these instructions:

  • Download the system access control reset script by clicking this link: Reset-UAD-Access-Control.zip
  • Double-click the downloaded file. The Terminal application opens and system access control is reset.
  • Quit the Terminal application after its window displays “Access control has been reset.”
  • Reinstall the UAD software and click “OK” in both access control dialogs when prompted.

Note: Don’t run the access control reset script file on macOS High Sierra or earlier, or macOS Catalina or later.



2. Allow UAD Software

After installing UAD software, the software must be manually allowed in System Preferences>Security & Privacy within 30 minutes of installation. If this step is not done, the UAD Meter displays “Driver Not Installed Correctly.”

How to allow UAD software

  • Download and install the latest UAD software.
  • After restarting, open System Preferences (from Apple Menu at top left corner of display).
  • Click Security & Privacy in the System Preferences window.
  • Click “Allow” (at lower right of General pane) within 30 minutes of UAD installation.

nD4_YWyAIZLwj7cbw8-gAZnkY946KF1I7vhIBkUGDGn9AIiNMqFaRiLeaT8PDuYsRAepUqcp3VOHPv2QjlDEl3bA52mTRO4x74UJTPGLPCGS4ScXchZqFGZA5zVe.png

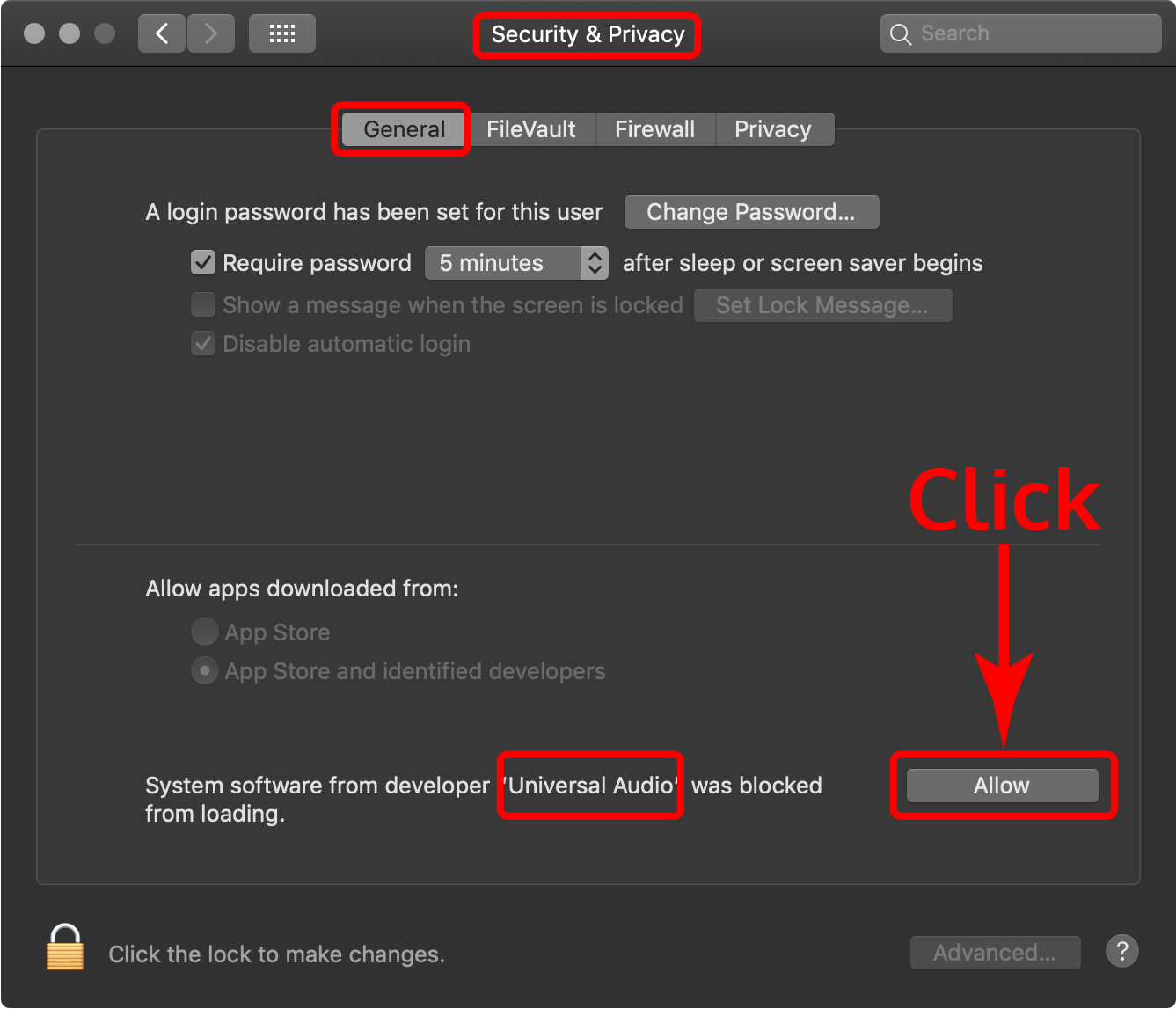

Allowing UAD software in System Preferences after UAD installation restart

T2FdIitODWmHKC5dOtSY48CcfbivY3vN6hscw7SUa_q7xDOrCWQ4XjaGD8gXiO0Ms_-LmpyVnApkHJTWJk8mWWU5_kKowd5G7_JmaR9eR7FpsjaipWIwLBn3nplj.png

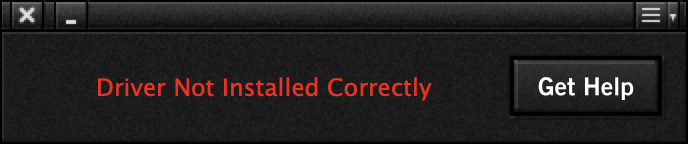

UAD Meter if UAD software is not allowed



Allow UAD software notes

  • The Allow button is present for 30 minutes after UAD software installation. To show the button again if 30 minutes have passed, restart the computer. If the Allow button is not present after restarting, reinstall the UAD software.

  • If software from multiple developers has been installed, the System & Privacy pane may display a more generic message that reads "some system software was blocked from loading." In this case, after clicking Allow a list will appear and the software from each developer can be allowed individually.

3. Allow Audio Inputs

With macOS Mojave, all audio applications such as DAWs, must be allowed to access audio inputs (including internal and external microphones, and all audio inputs from UA audio interfaces).

To allow Apollo/Arrow audio inputs in the DAW, simply click “OK” when an alert dialog appears asking for access to the microphone.

Note: Apple uses “microphone” in this dialog, but the context includes inputs from any audio device. The text within this dialog may vary depending on the audio application.

is3UTatzT0jlCRUG_tjCZjFFc1EOfWuIKGV6jDVX4f0w2dCncCi-_WJ_TO6v4FumhJvh9x1d0IkvsuIPMvjSctFwvWTmr-M_rhxD8kZQ7BOAie7kFhG-TPvUFqIl.png

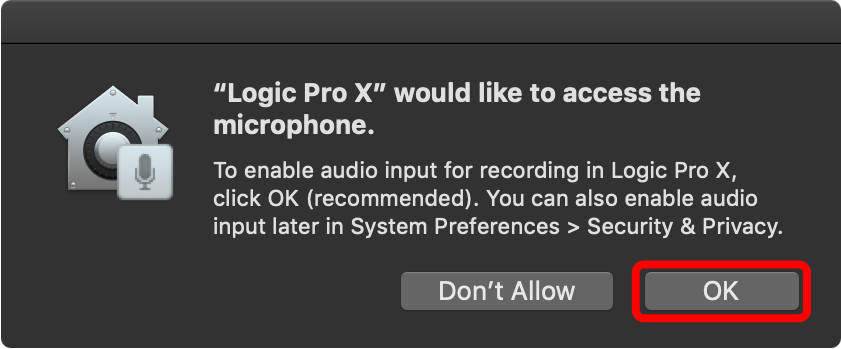

Mojave audio inputs access dialog — click OK



How to manually allow audio inputs

Follow the steps below to manually allow audio application access to Apollo/Arrow inputs in Mojave. These steps may be necessary if OK isn’t clicked in the microphone access dialog as described above.

  • Quit all audio applications.
  • Open System Preferences > Security & Privacy > Privacy (from Apple Menu at top left corner of display).
  • In the left column within the Privacy pane, click Microphone.
  • Click the lock icon (bottom left of window) and authenticate to allow system changes.
  • In the right column, tick the checkbox next to the app(s) to allow audio input access.

For related information, see this Apple support article.

2pxjkXeKg2CiByyuBIcYV02YmBMBwAJYs9AfceCLUtrsvuVkvF4ydM67LeGPYVVmaqlAjJiGyi6T4YrmEXjkWubl_QUYp0KQDBQvCAsIXdUHfASJuhAAhNM80AiE.png

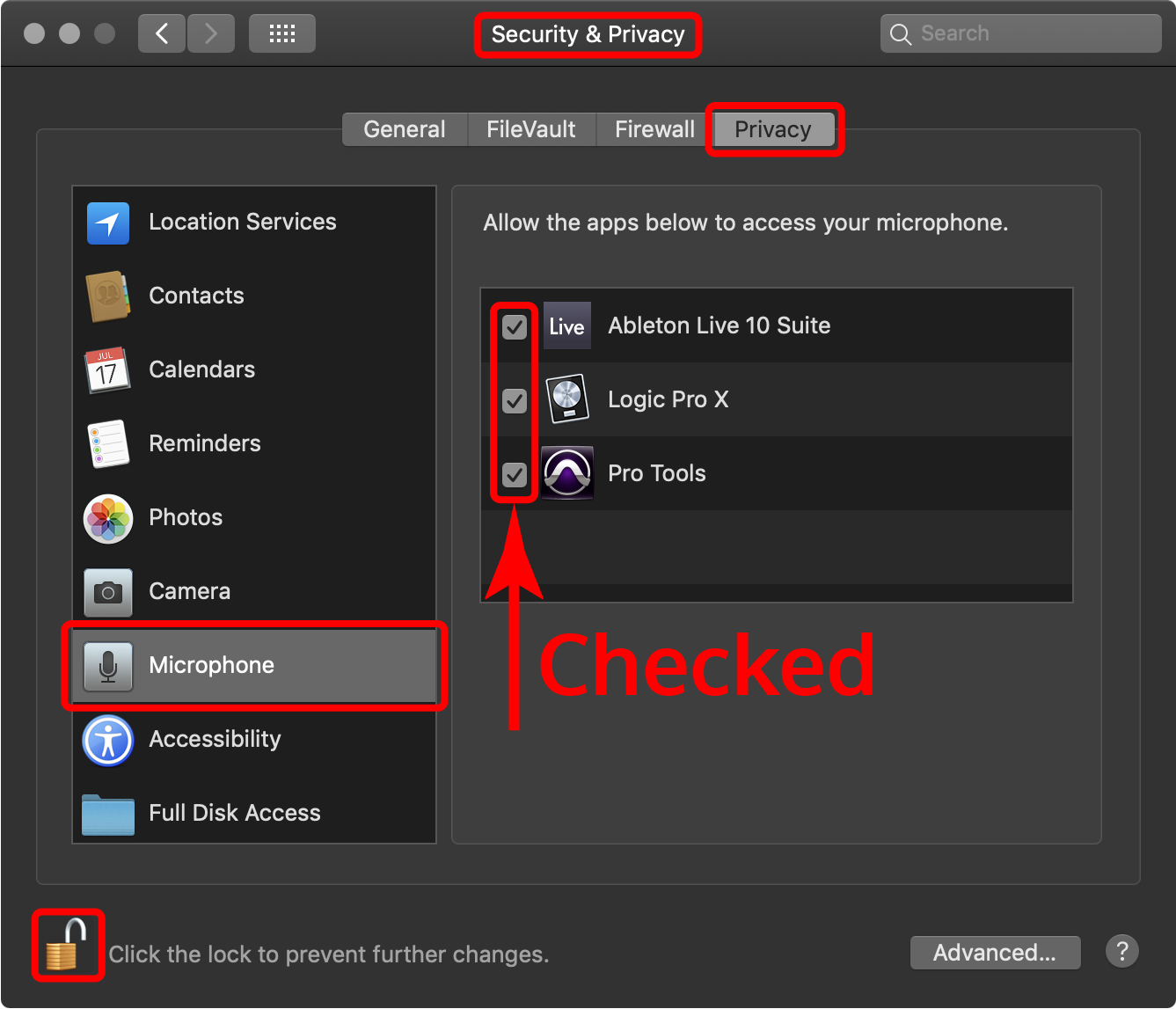

Apollo/Arrow audio inputs allowed and configured correctly



4. Allow Console Keystroke Passthrough

With macOS Mojave, Console must be allowed to pass keystrokes through to a DAW. Console keystroke passthrough allows DAW applications to be controlled with the computer keyboard (for transport, record enable, etc.) when Console is the foreground application.

  • With the first keystroke when a DAW is open and Console is in the foreground, the “Accessibility Access (Events)” alert dialog appears asking to grant access to the UA Mixer Engine application.
  • Click “Open System Preferences” in the dialog. The System Preferences > Security & Privacy > Privacy pane appears.
  • Click the lock icon at lower left of the Privacy pane and authenticate to allow changes.
  • In the right column within the Privacy pane, tick the “UA Mixer Engine” checkbox.

bX8IjHS1JtU9uruYM2Nm08PpqwUYDWxFu8gibbAXQHnjVANPd4JYwrGAei-jnzgFBen9FXFw-gLhZE-Gn0kTHU_BXJmAlpmgtiSjHhFDVvZAwmMqQI2WX9d1twUL.png

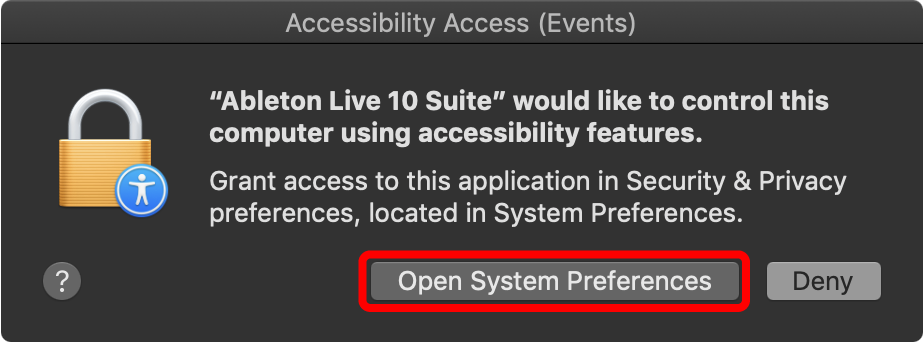

Accessibility Access (Events) dialog — click Open System PreferencesBSbCCbwYItqyduN9BR-Oe0pMcsdLUQ9ZWvVjYQytM1xdUcKwaAa2pA33G30gKVdmmzceMsv1YEsmjFUGw9GF54aft6b_SM6nnf3_zUALFI53YQqKU8abgOc3YL1B.png

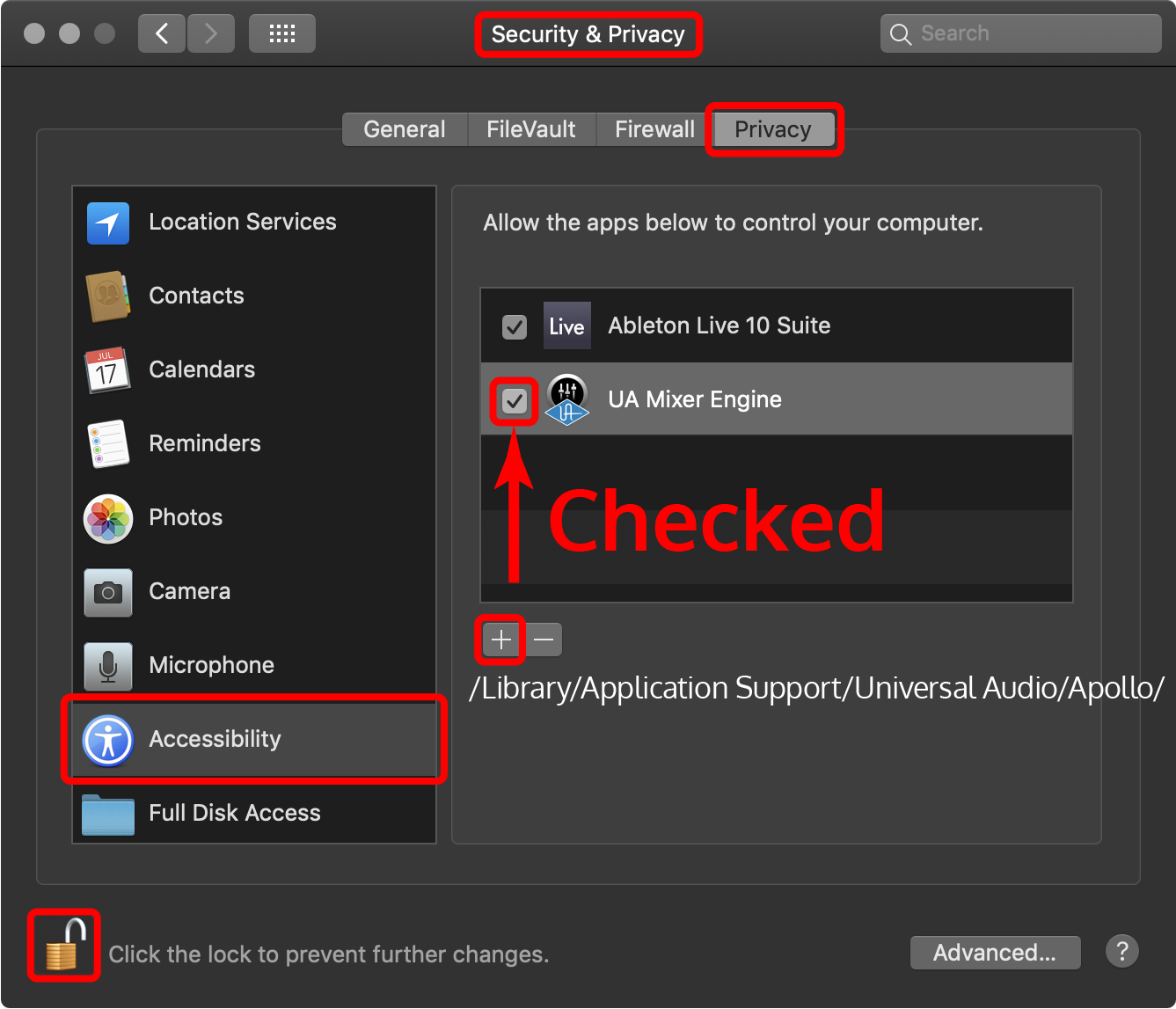

Accessibility pane with Console keystroke passthrough allowed



How to manually allow Console keystroke passthrough

Follow the steps below to manually enable Apollo/Arrow Console keystroke passthrough. These steps may be necessary if “Open System Preferences” isn’t clicked in the Accessibility Access (Events) dialog as described above.

  • Open System Preferences > Security & Privacy > Privacy (from Apple Menu at top left corner of display).
  • Click the lock icon at lower left of the Privacy pane and authenticate to allow changes.
  • In the right column of the Privacy pane, click the “+” button and navigate to:
    /Library/Application Support/Universal Audio/Apollo/
  • Click the “UA Mixer Engine” application so it is selected, then click Open.
  • In the right column of the Privacy pane, tick the “UA Mixer Engine” checkbox.
