Behringer MCU Control Surface Setup with LUNA

The Behringer MCU control surfaces in this article are tested and supported with LUNA Recording System v1.2 and higher.

For optimum compatibility with LUNA, confirm your control surface is updated with the latest software and firmware from the manufacturer.

Note: This article contains device-specific setup instructions, mapping diagrams, and known issues only. To learn how to operate MCU control surfaces in LUNA, click here.

Behringer X-Touch One


Behringer X-Touch


Behringer X-Touch One Setup

The Behringer X-Touch One comes from the factory in MCU (Mackie Control) mode. If the device is not in MCU mode, it must be changed to MCU mode to work with LUNA.

To enable MCU mode:

  1. Power OFF X-Touch One
  2. Press and continue to hold down the encoder knob
  3. While holding the encoder knob, power ON X-Touch
  4. Release the encoder knob when the displays offer a choice of emulation modes
  5. Rotate the encoder until the display shows “MC”
  6. Press the encoder knob

X-Touch One is now configured for MCU. For instructions on how to configure LUNA, click here.

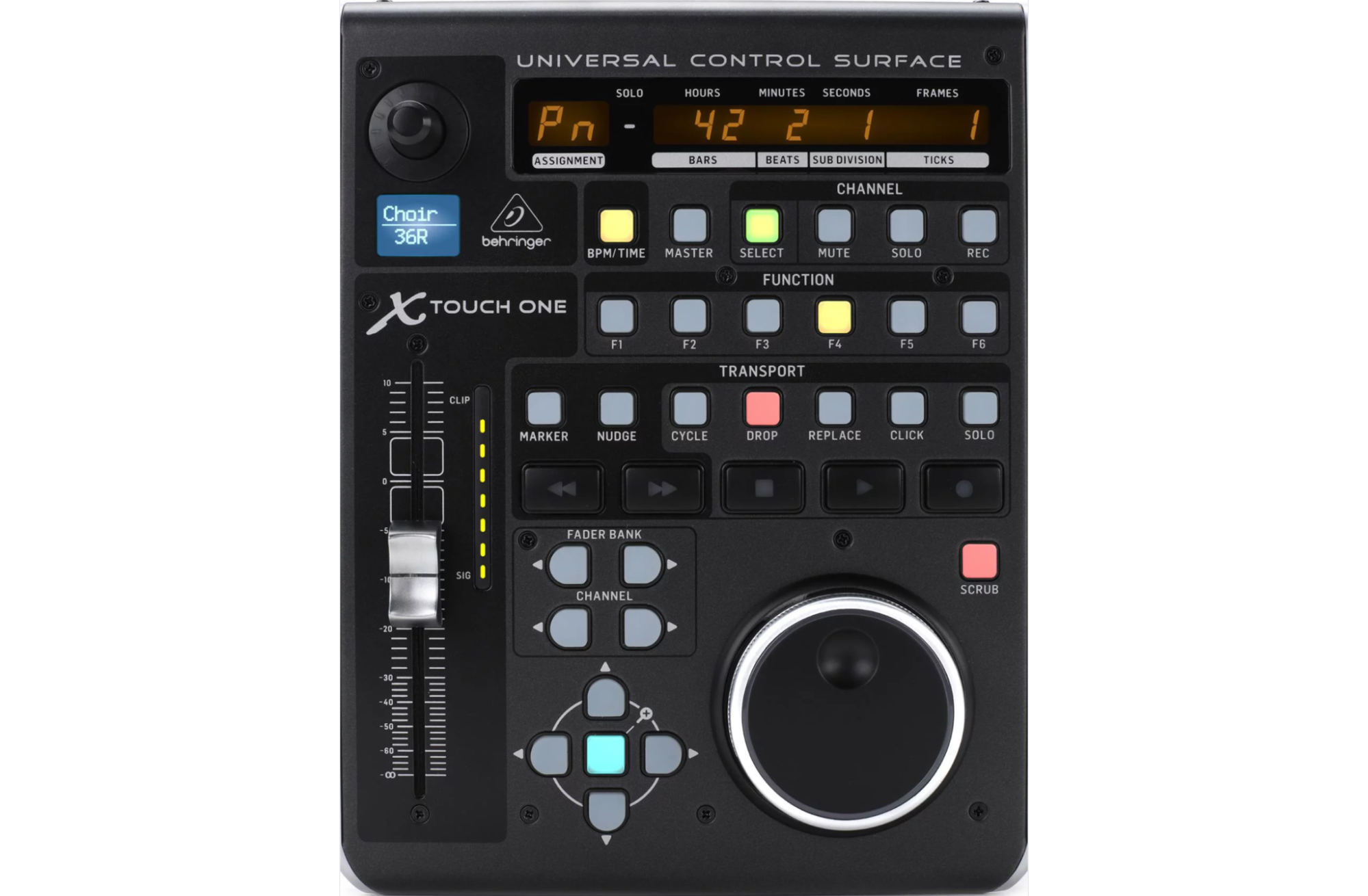

Behringer X-Touch One Mapping Diagrams

The diagrams below show how the Behringer X-Touch One controls and parameters are mapped in LUNA.

Default


Zoom







Behringer X-Touch Setup

Before using with LUNA, Behringer X-Touch must be set to MCU mode. To enable MCU mode:

  1. Power OFF X-Touch
  2. Press and continue to hold down the channel 1 SELECT button on hardware
  3. While holding the channel 1 SELECT button, power ON X-Touch
  4. Release channel 1 Select button when the displays offer a choice of emulation modes
  5. Rotate encoder 1 until the display shows “MC”
  6. Press the channel 1 SELECT button

X-Touch is now configured for MCU. For instructions on how to configure LUNA, click here.

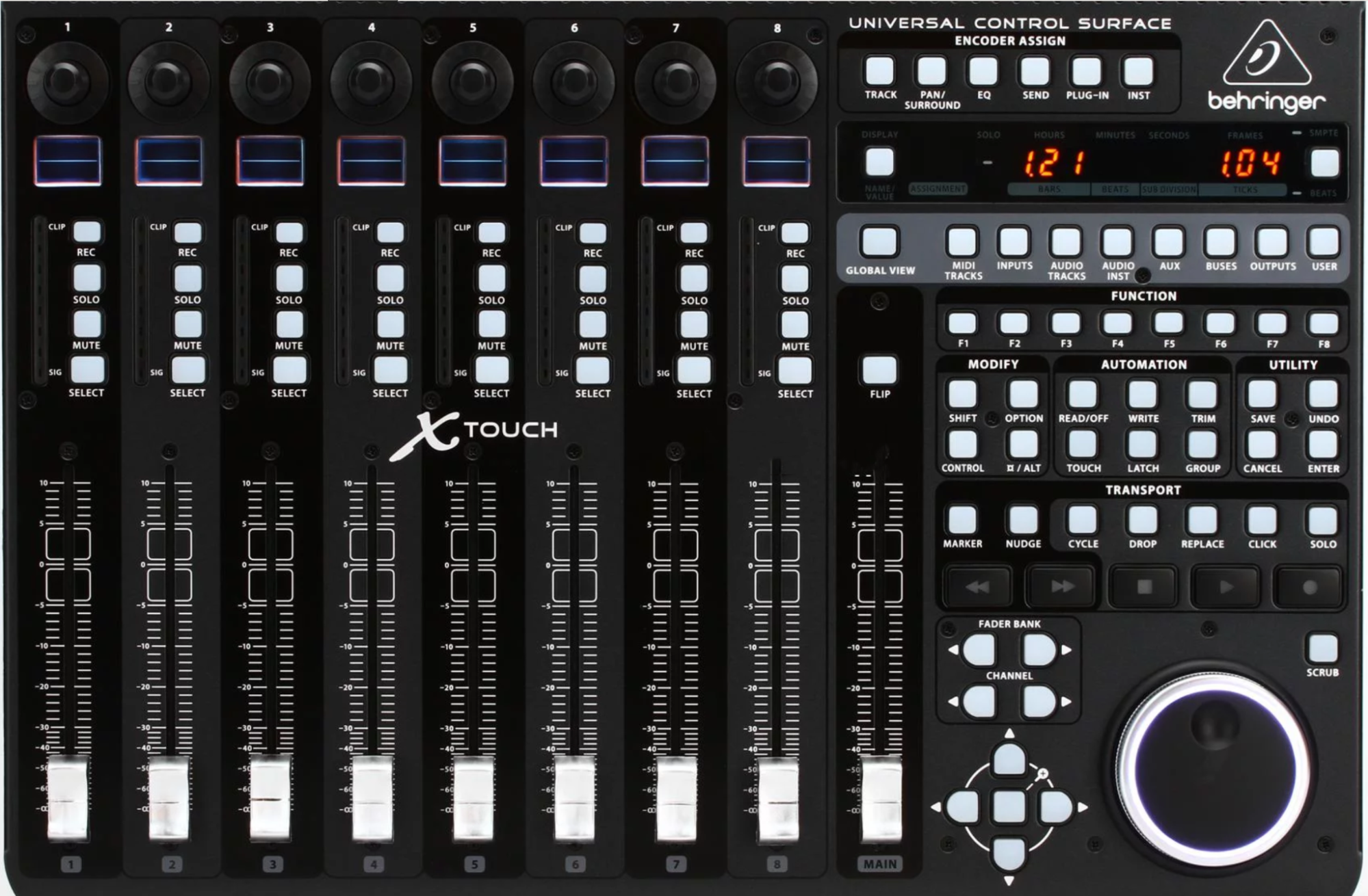

Behringer X-Touch Mapping Diagrams

The diagrams below show how the Behringer X-Touch controls and parameters are mapped in LUNA.

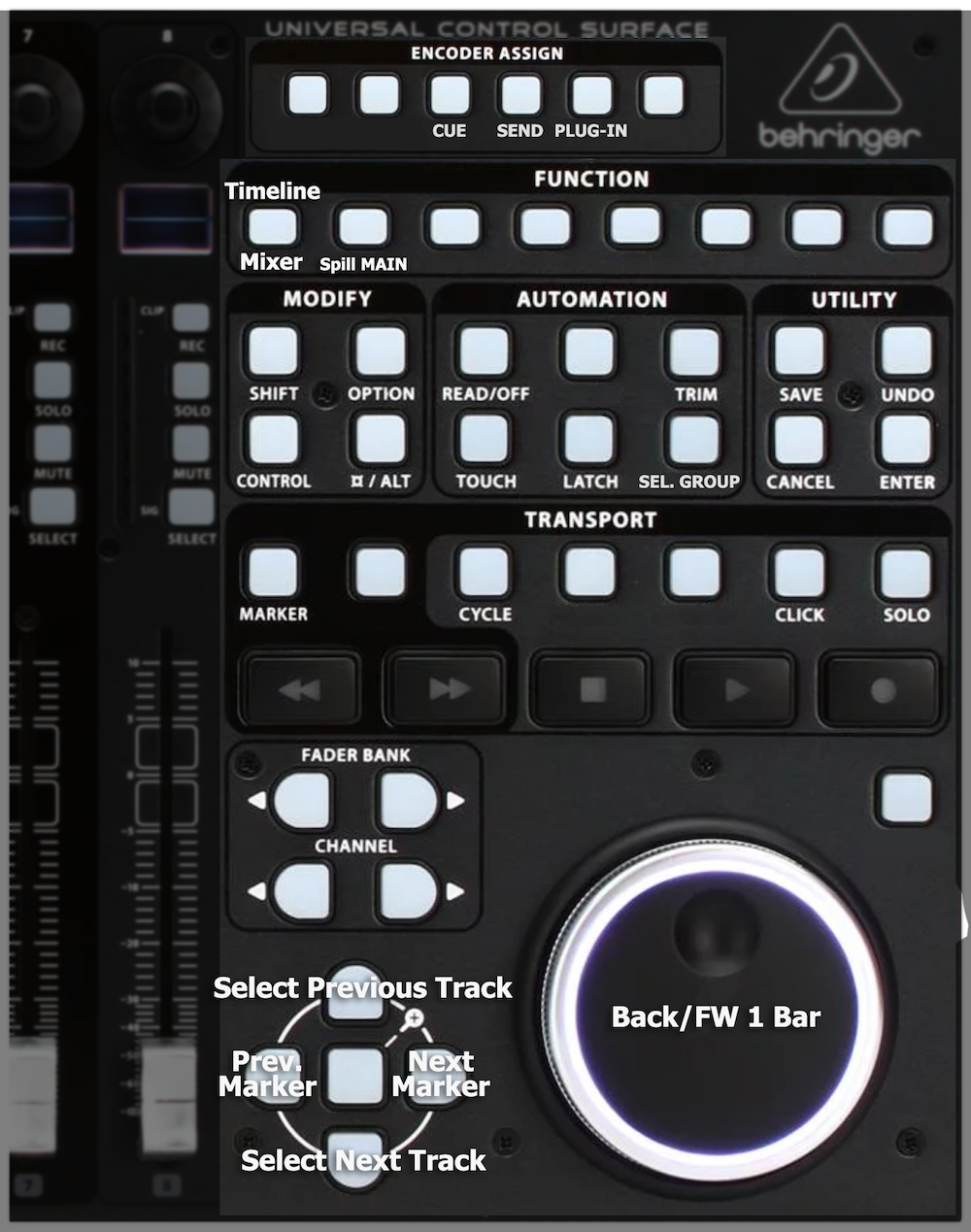

Default

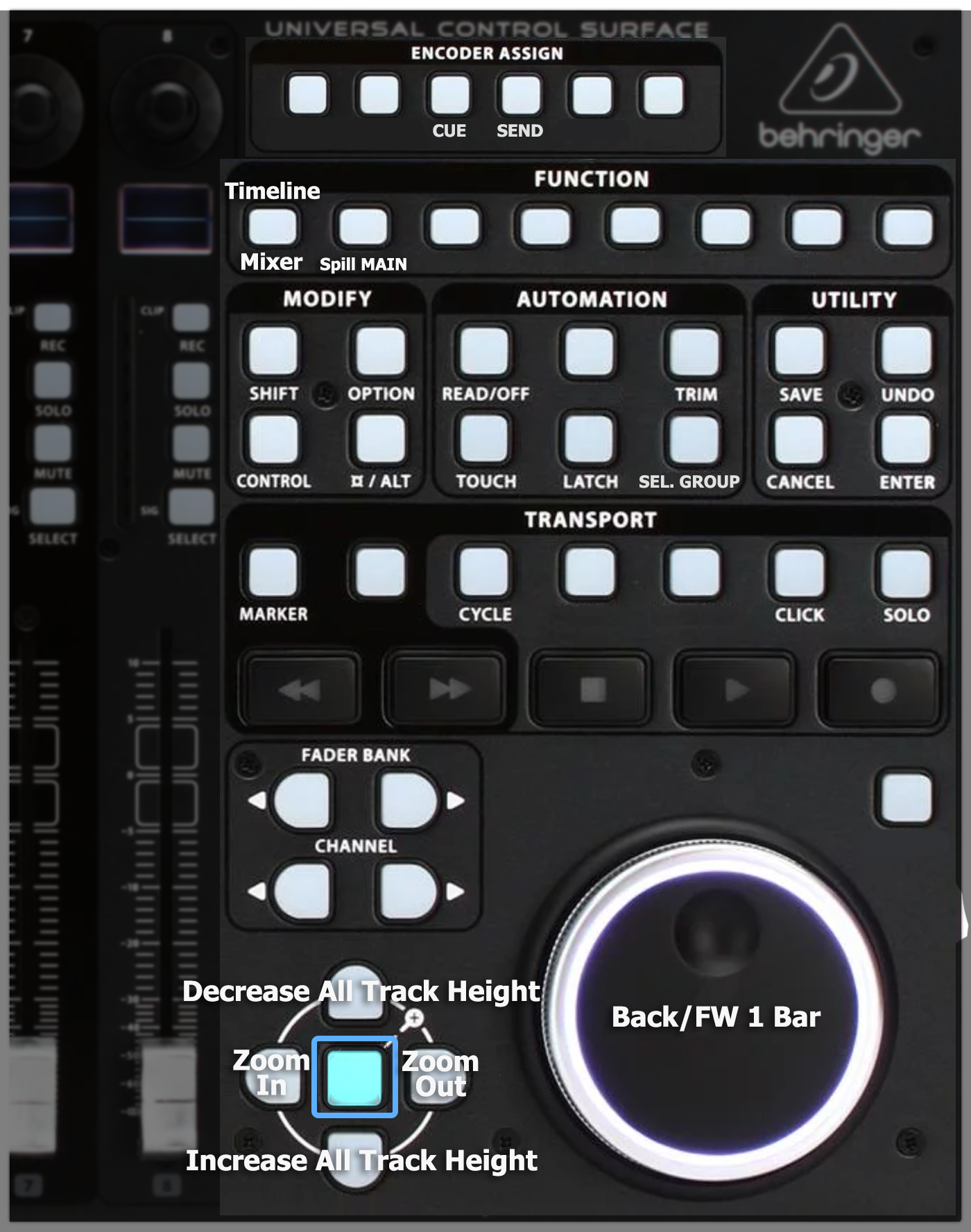

Zoom
