Presonus FaderPort MCU Control Surface Setup with LUNA

The PreSonus FaderPort models in this article are tested and supported with LUNA Recording System v1.2 and higher when using MCU mode.

For optimum compatibility with LUNA, confirm your control surface is updated with the latest software and firmware from the manufacturer.

Note: This article contains device-specific setup instructions, mapping diagrams, and known issues only. To learn how to operate MCU control surfaces in LUNA, click here.

PreSonus FaderPort Classic

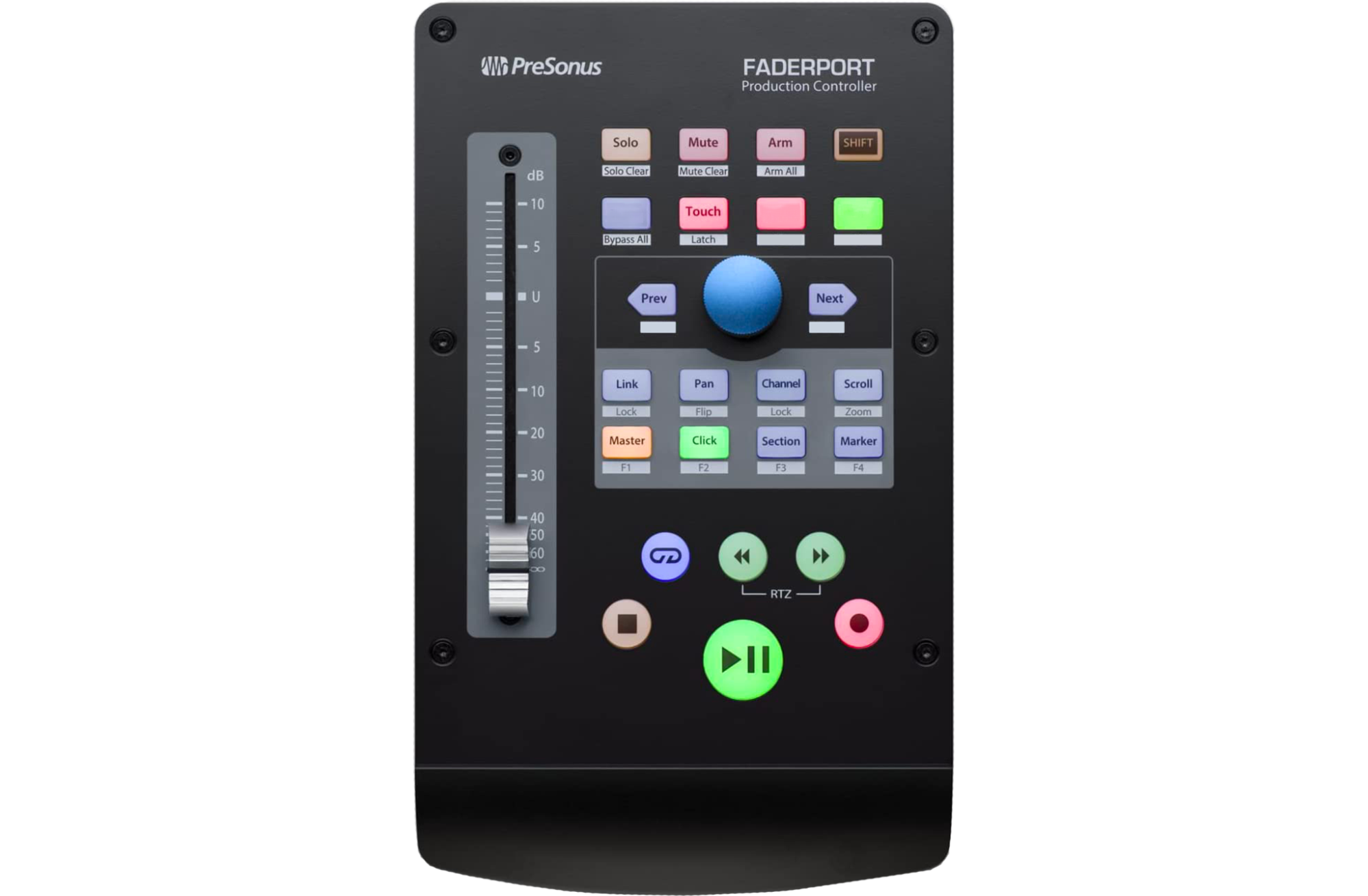

PreSonus FaderPort 2

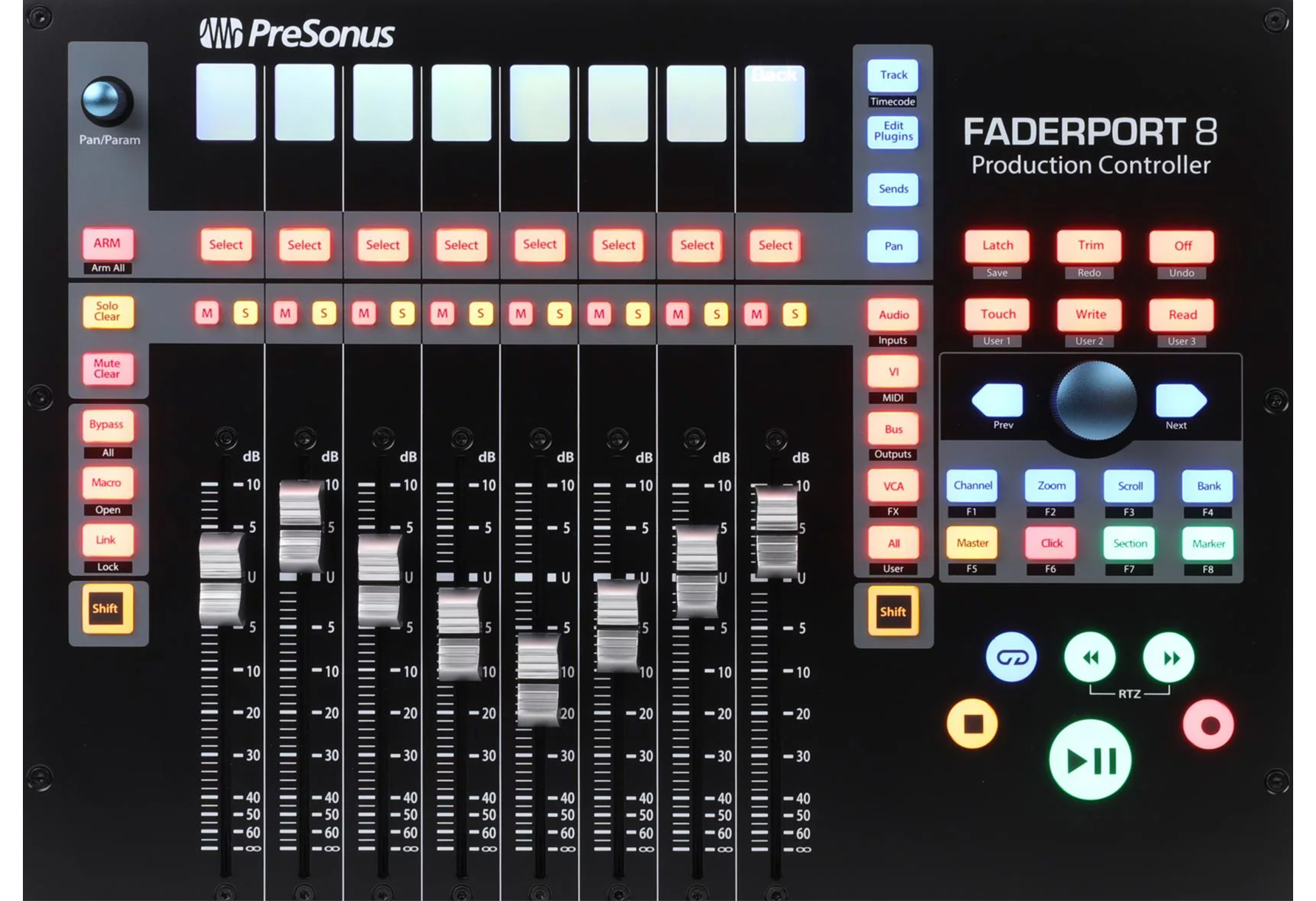

PreSonus FaderPort 8

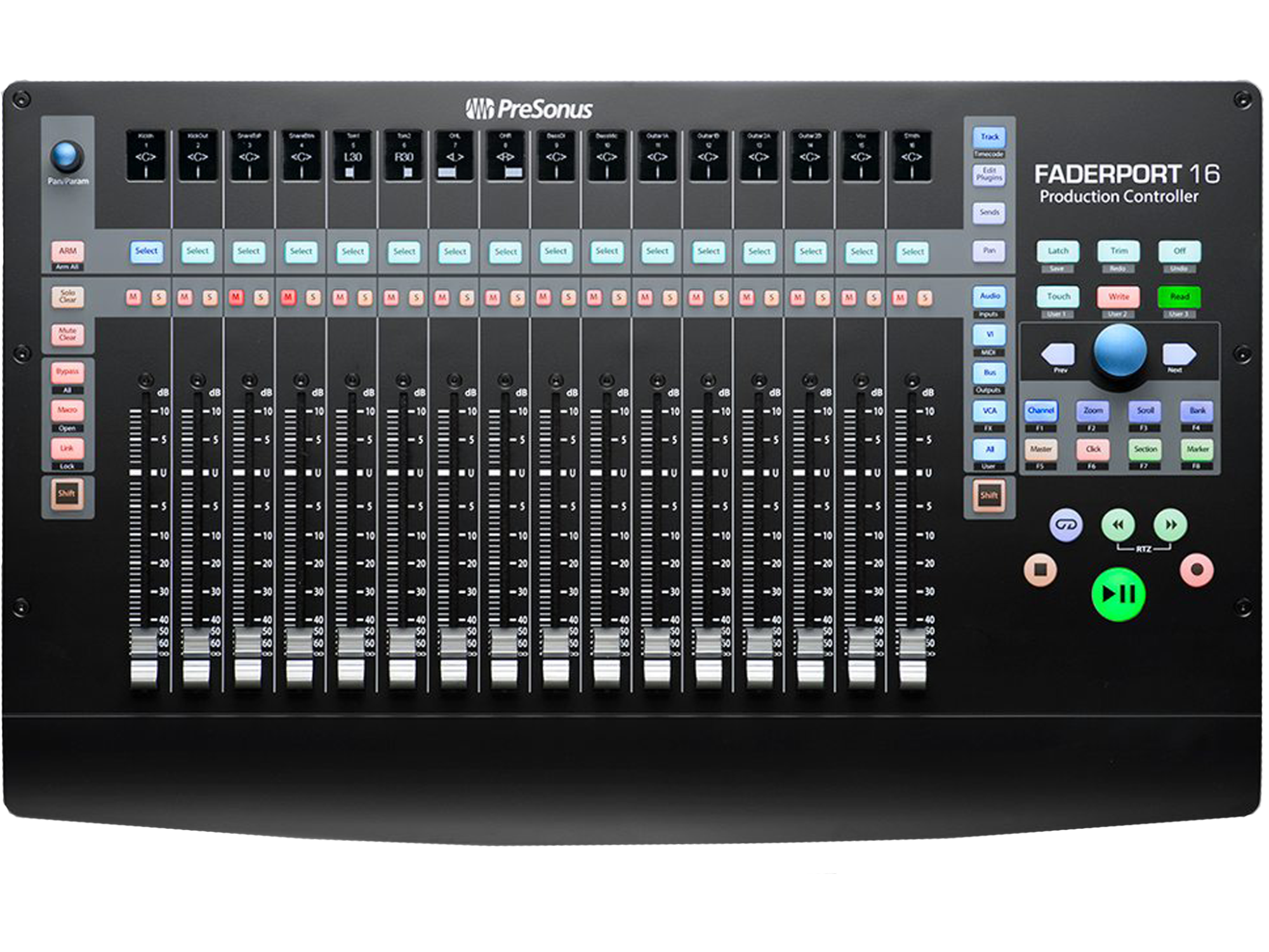

PreSonus FaderPort 16


PreSonus FaderPort Classic Setup

The FaderPort must be set to MCU mode. To enable MCU mode on the FaderPort:

  1. Press and hold the STOP button until OUTPUT and UNDO buttons begin to flash to change the FaderPort Classic's mode of operation
  2. Press the OUTPUT button

The FaderPort is now in MCU mode. For instructions on how to configure LUNA, click here.



PreSonus FaderPort Classic Control Surface Mapping Diagrams

The diagrams below show how the PreSonus FaderPort Classic controls and parameters are mapped in LUNA.

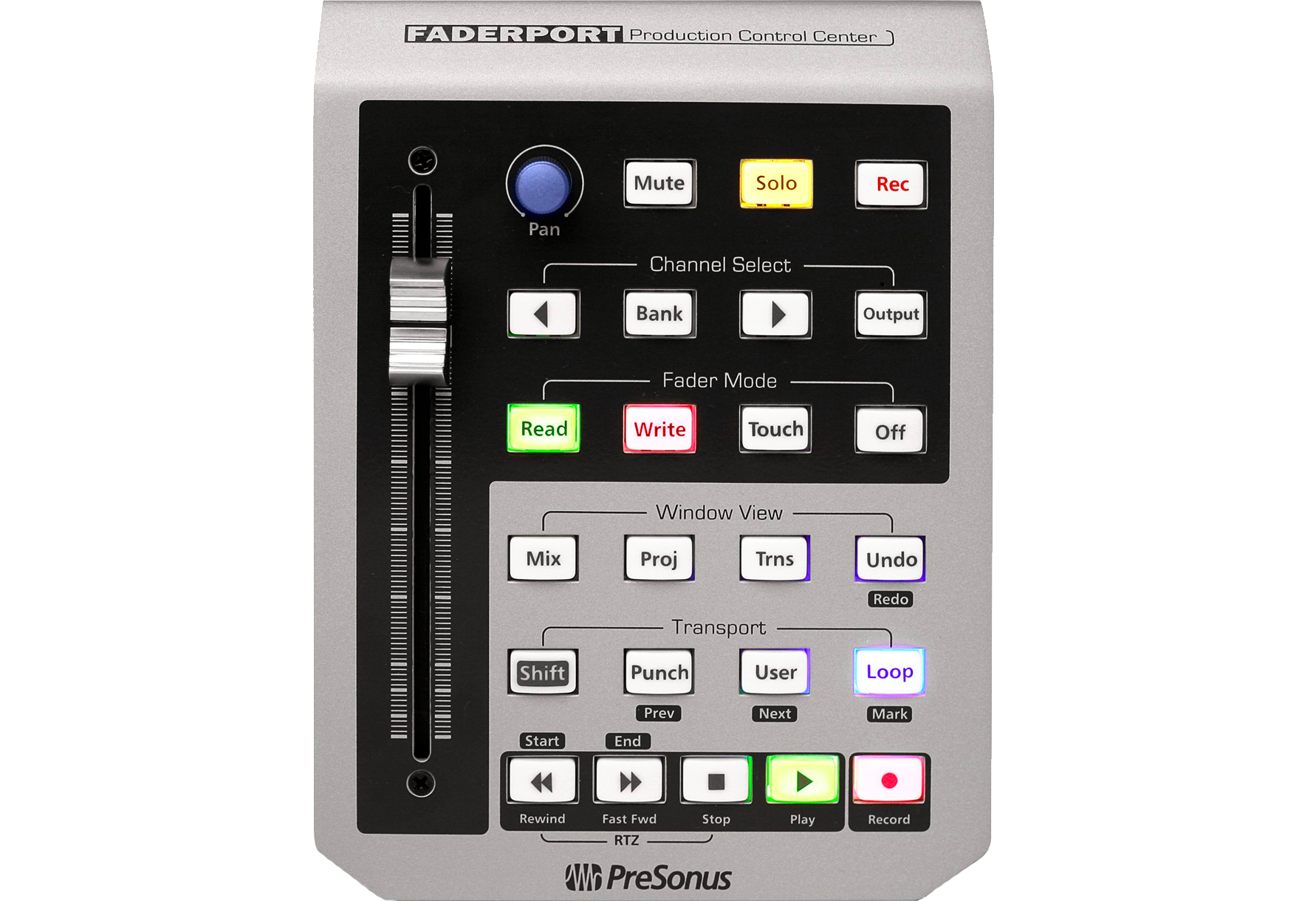

Default


HoldShift


PreSonus FaderPort Classic Known Issues

  • None.




PreSonus FaderPort 2 Setup

The PreSonus FaderPort 2 must be set to MCU (Logic) mode. Note that FaderPort 2 has multiple MCU modes, and LUNA is most compatible with the “MCU (Logic)” mode.

To enable MCU (Logic) mode on the FaderPort:

  1. Power OFF the FP2
  2. Press and hold the NEXT button
  3. While still holding the NEXT button, power ON the FaderPort 2
  4. Release the NEXT button once SOLO, MUTE, ARM, BYPASS, and TOUCH buttons begin to blink
  5. Press the MUTE button to enable MCU (Logic) mode on the FaderPort 2

The FaderPort is now in MCU (Logic) mode. For instructions on how to configure LUNA, click here.



PreSonus FaderPort (2nd generation) Control Surface Mapping Diagrams

The diagrams below show how the PreSonus FaderPort 2 controls and parameters are mapped in LUNA.

Jog Mode

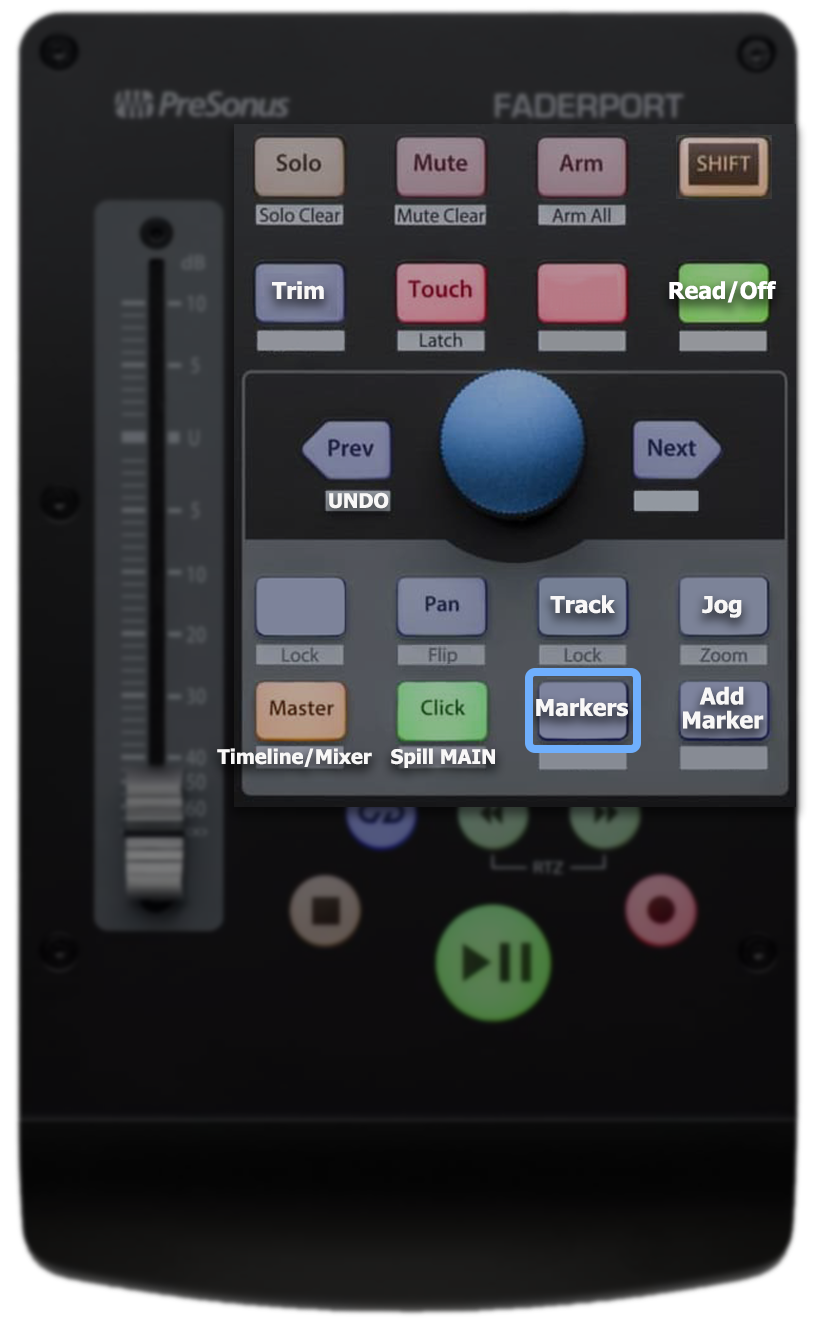

Markers Mode

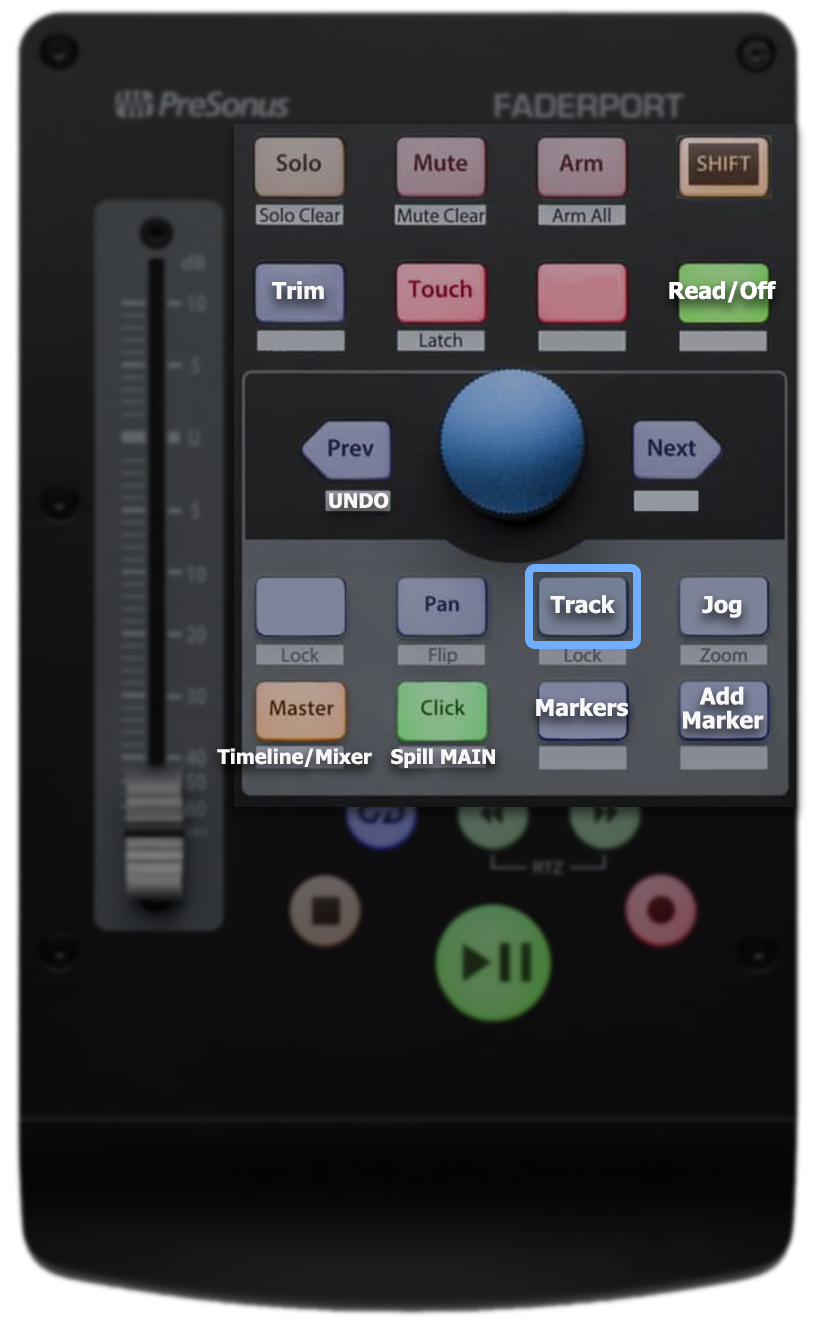

Track Mode


Zoom Mode




PreSonus FaderPort 2 Known Issues

Note: These issues are the result of control surface function implementations by PreSonus that cannot be avoided in LUNA.

  • Issue: The Add Marker button is implemented by PreSonus as a one-time switch. If MARKER LED is currently lit, you cannot press Marker again to add another marker.

Workaround: To add another marker, first press a different switch in the area to clear the MARKER button such as SECTION (Markers).

  • Issue: Switching from MARKER to modes other than SECTION (Markers) can re-trigger the MARKER button.

Workaround: Always press the SECTION (Markers) after pressing the MARKER button.

  • Issue: Pressing Solo Clear, Mute Clear, and Arm All toggles the function for all tracks in the LUNA session.

Workaround: None.






PreSonus FaderPort 8 and FaderPort 16 Setup

The PreSonus FaderPort 8 and FaderPort16 must be set to MCU (Logic) mode.. Note that the FaderPort has multiple MCU modes, and LUNA is most compatible with the “MCU (Logic)” mode.

To enable MCU (Logic) mode on the FaderPort:

  1. Power OFF FaderPort
  2. Press and hold the first two channel SELECT buttons
  3. While still holding the SELECT buttons, power ON FaderPort
  4. Release the SELECT buttons once the screens display a choice of Operation Modes
  5. Press the SELECT button under the screen displaying “MCU”
  6. Press the SELECT button under the screen displaying “Logic”
  7. Press the SELECT button under the screen displaying “Exit”

The FaderPort is now in MCU (Logic) mode. For instructions on how to configure LUNA, click here.



PreSonus FaderPort 8 and FaderPort 16 Control Surface Mapping Diagrams

The diagrams below show how the PreSonus FaderPort 8 and PreSonus FaderPort 16 controls and parameters are mapped in LUNA.

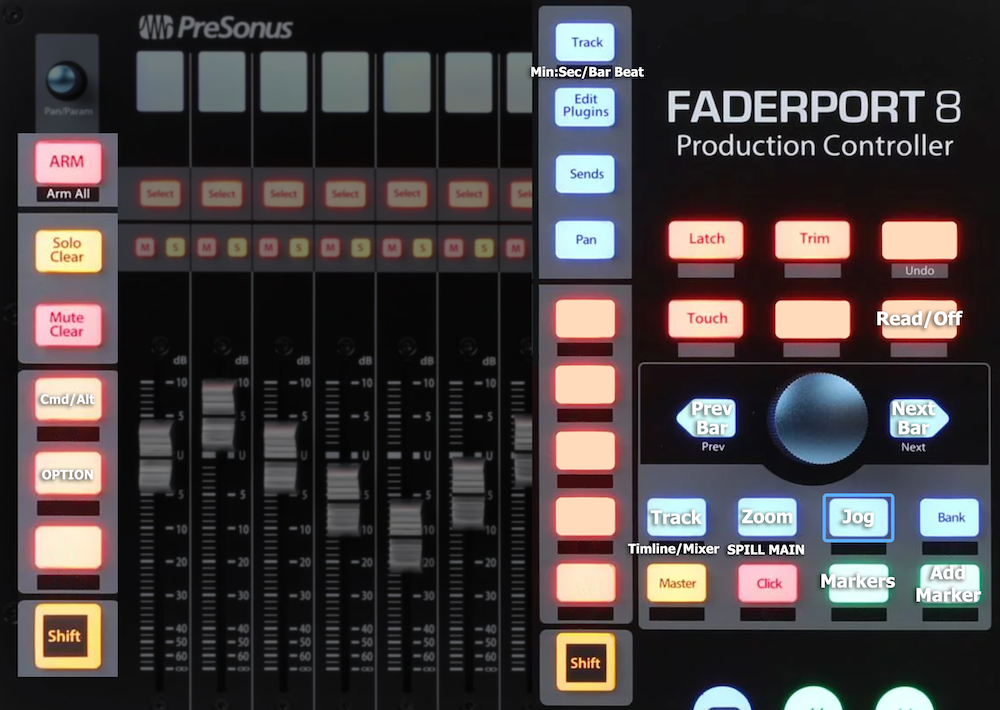

Jog Mode

11_PreSonus FP8_16_Jog_mode.png

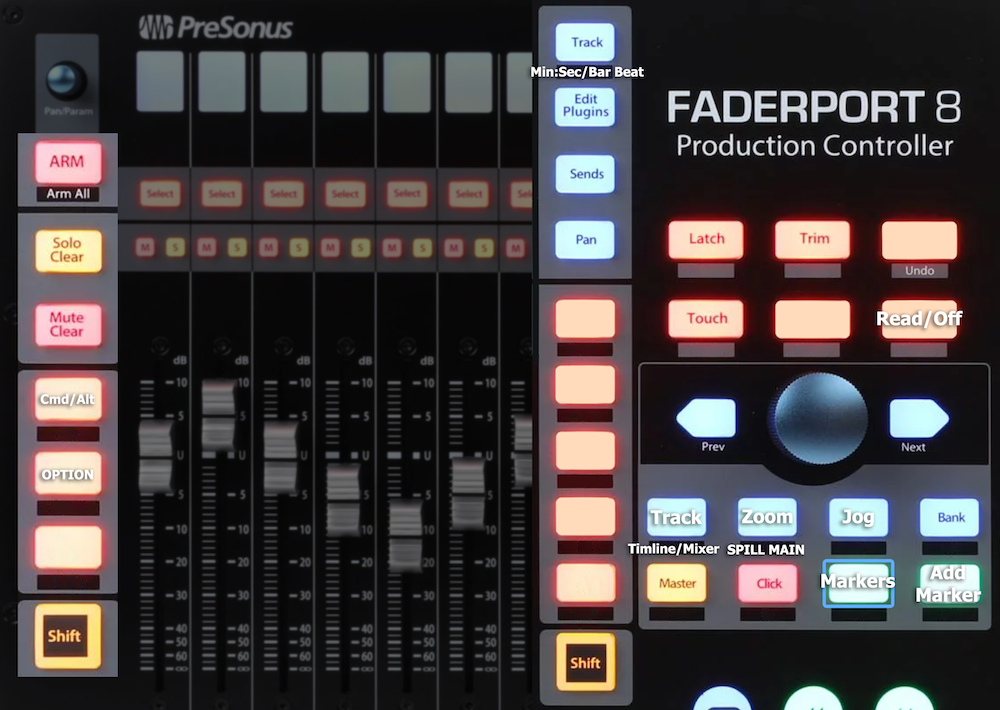

Markers Mode

12_PreSonus FP8_16_Markers_mode.png

Track Mode

13_PreSonus FP8_16_Track_mode.png

Zoom Mode

14_PreSonus FP8_16_Zoom_mode.png

PreSonus FaderPort 8 & FaderPort 16 Known Issues

Note: These issues are the result of control surface function implementations by PreSonus that cannot be avoided in LUNA.

  • Issue: The Add Marker button is implemented by PreSonus as a one-time switch. If MARKER LED is currently lit, you cannot press Marker again to add another marker.

Workaround: To add another marker, first press a different switch in the area to clear the MARKER button such as SECTION (Markers).

  • Issue: Switching from MARKER to modes other than SECTION (Markers) can re-trigger the MARKER button.

Workaround: Always press the SECTION (Markers) after pressing the MARKER button.

  • Issue: Pressing Solo Clear, Mute Clear, and Arm All toggles the function for all tracks in the LUNA session.

Workaround: None.

  • Issue: The left SHIFT button on the control surface does not send the Shift keyboard modifier to LUNA.

Workaround: Use the right SHIFT keyboard modifier on the control surface.
