Troubleshooting "No Devices Found" and Other Connection Issues

If the UAD Meter displays Connect UA Device or No Devices Found, a UAD or Apollo device is not connected or available. First check that your device(s) are fully connected and powered on. If the issue persists, the troubleshooting suggestions below can help you get up and running with your UAD device(s).

Note: On macOS 11 Big Sur, if the Allow button is unavailable or does not load the UAD driver when clicked (causing red Driver Not Installed Correctly text to appear in the UAD Meter app window), you might need a newer UAD or Big Sur version. Visit the Driver Not Installed Correctly on macOS Big Sur article for more information.



macOS Security

macOS requires manual configuration steps to enable UAD software. If these steps are not done, UAD devices are not recognized.

To get the detailed configuration instructions for your Mac, first visit the Latest OS compatibility article. Then, under the macOS heading in that article, click a link to the individual compatibility article for your specific version of macOS.

Note: FireWire connections for UA devices are incompatible with macOS Big Sur and higher. First generation (silver) Apollo models are supported with Big Sur when connected via a Thunderbolt Option Card.



Check Computer Compatibility

If you're connecting your UAD device(s) to your computer for the first time and see the "No Devices Found" text, first check to make sure that your computer is compatible with the UAD device(s) that you're using. See the system requirements for your UAD device below to make sure that your computer meets the minimum specifications:

Check Data Connection

Please ensure that you are using the appropriate cable for connecting your device:

Apollo and Satellite Data Cable Guide

Please connect your interface directly to your computer. Many hubs and docking stations can cause complications and are not supported.

Check the data connection on your UAD device (i.e., FireWire, Thunderbolt, or USB) to make sure that the data cable is firmly seated into the ports on both the UAD device and the computer.

Apollos share clocking over Thunderbolt, so it is critical they are connected in this manner.

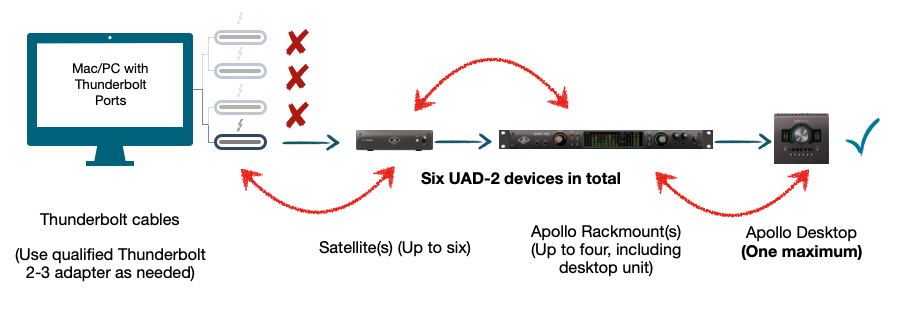

It is required that every UA Thunderbolt device is daisy-chained from a single Thunderbolt port. Please refer to the following example diagram:

If you are using Thunderbolt 2 devices, the Thunderbolt logo on the Thunderbolt cable must be face up when plugged into both the UAD device and the computer. If the Thunderbolt logo is not face up, then the cable is inserted upside-down, which can be done fairly easily.

Note: FireWire connections are not supported on Big Sur. First generation Apollo models may be used when connected via Thunderbolt using an installed Thunderbolt Option Card. Satellite FireWire models are unsupported.

Hardware Reset (Apollo interfaces only)

Try re-initializing your Apollo interface by performing a hardware reset of your device.

Uninstall / Reinstall the UAD Software

A full uninstall of the UAD software will remove all UAD applications, drivers, preference files, etc., from your computer so you can reinstall the software like new. This can resolve "No Devices Found" and other issues. See the directions for your operating system below:

Replace Data Cable

If you're still experiencing issues after going through the troubleshooting steps above, we recommend replacing your data cable (FireWire, Thunderbolt, or USB) with a new one, or with one that you have confirmed as working by testing it with another device. Bad or defective data cables are fairly common and even relatively new cables can develop issues that will cause your device not to be recognized by your computer.



Revert FireWire Compatibility

If your FireWire Apollo is equipped with a Thunderbolt Option Card and does not connect via FireWire anymore, please have a look at following article:

I use my Apollo via Thunderbolt, but now I want to use it with a different computer via FireWire. Why is my Apollo not recognized via FireWire?



Troubleshooting Other "Connection Error" Messages

Other general "Connection Error" messages can appear in the UAD Meter under certain conditions. All of the troubleshooting suggestions above apply to these messages as well.
